Further parameters
If you have set up unique cutting edge numbers, these are displayed in the first column.
Column heading Meaning
D no. Unique cutting edge number
SN Cutting edge number

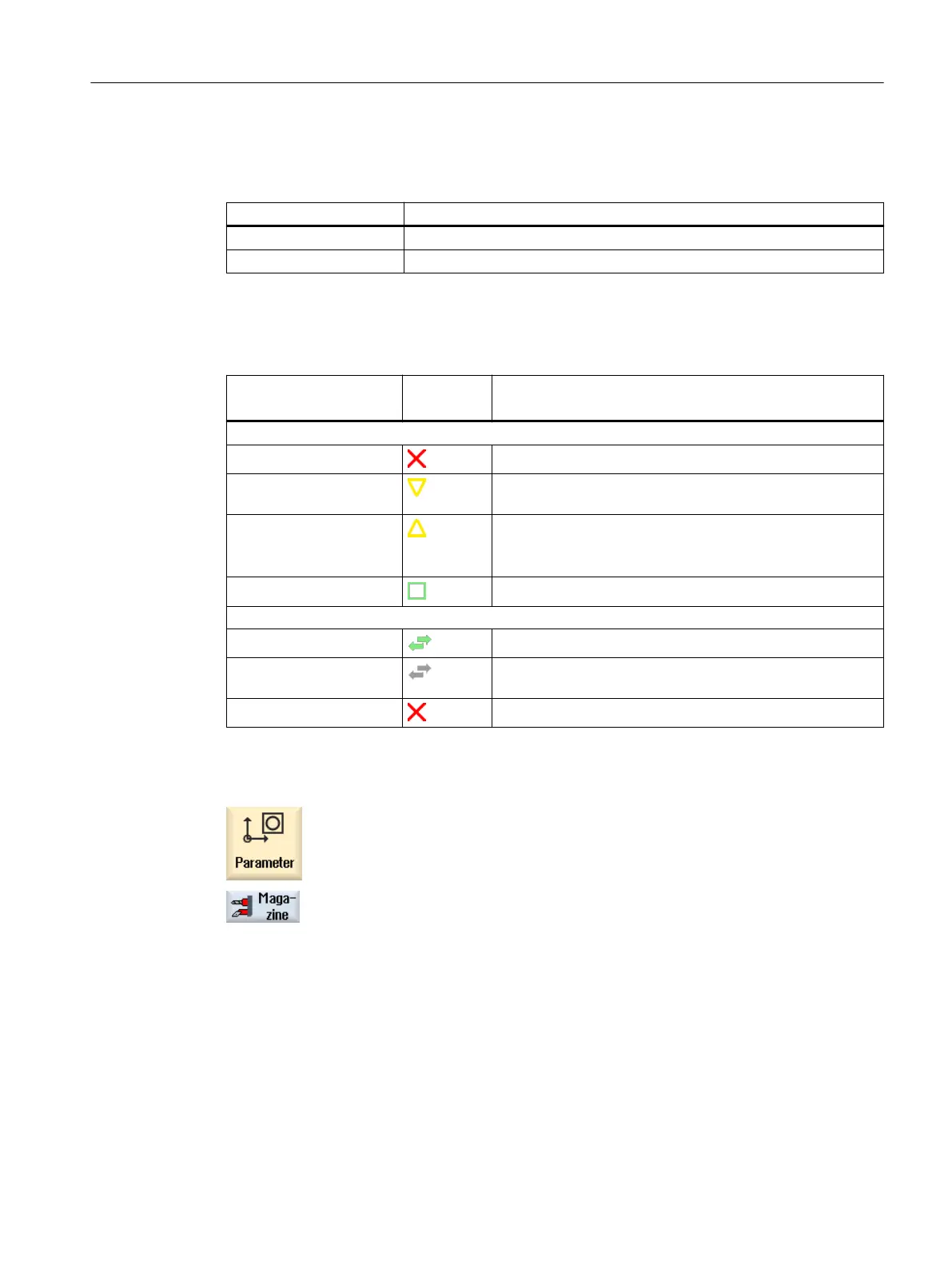

Magazine list icons
Icon/
Marking
Meaning
Tool type
Red "X" The tool is disabled.
Yellow triangle pointing
downward
The prewarning limit has been reached.
Yellow triangle pointing
upward
The tool is in a special state.
Place the cursor on the marked tool. A tooltip provides a
short description.
Green border The tool is preselected.
Magazine/location number
Green double arrow The magazine location is positioned at the change position.
Gray double arrow (con‐
figurable)
The magazine location is positioned at the loading position.
Red "X" The magazine location is disabled.
Procedure
1. Select the "Parameter" operating area.
2. Press the "Magazine” softkey.
See also
Displaying tool details (Page 753)
Changing the cutting edge position or tool type (Page 762)
Tool management
13.8 Magazine
Turning
Operating Manual, 06/2019, A5E44903486B AB 749
