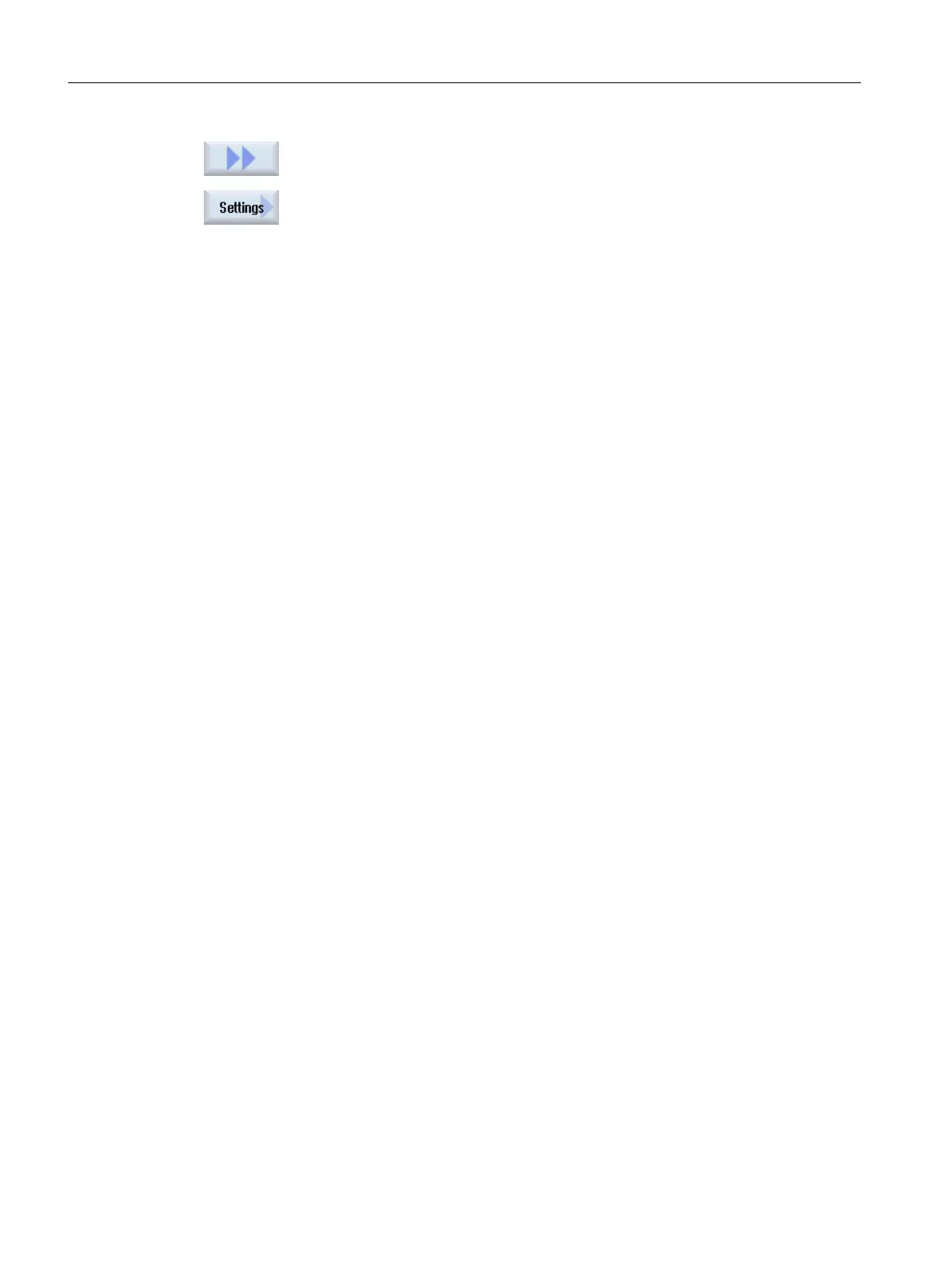

3. Press the "Continue" and "Settings" softkeys.

4. Activate the corresponding check box for the desired setting.

Tool management

13.14 Settings for tool lists

Turning

764 Operating Manual, 06/2019, A5E44903486B AB
