Simrad ST90 - Mounting Flange and Hydraulic Gate Valve Installation

To Next Page

To Previous Page

442703/B

Mountingangeandhydraulicgatevalveinstallation

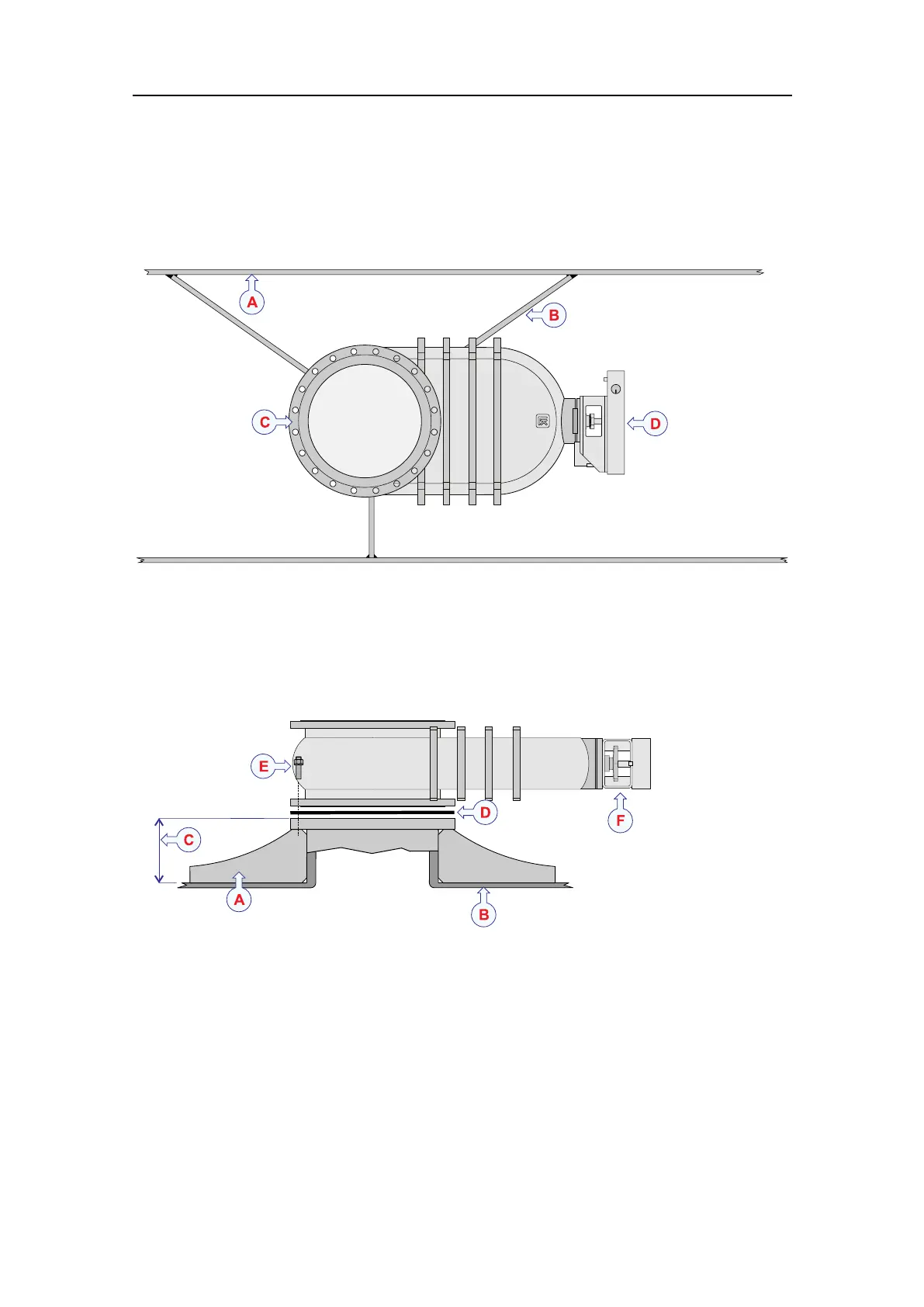

Thisillustrationdemonstratesthemountingprinciplesforahydraulicgatevalve.The

mountingangeandthegatevalveareshown.Thedrawingsarenottoscale.

AFrames

BKnee-plates(stiffeners)

CGatevalve

DHydraulicActuator

AKnee-plates(stiffeners)

BShellplating

CAsshortapossible

DO-ring

EMountingbolts/Nuts/Washers

FMakesurethattheelectricalconnectionstotheendswitchesandthecouplingsfor

thehydraulichosesarealleasilyaccessible.

InstallingtheoptionalgatevalveDN500
