Choosingthebestlocationforthehullunit,page59

Hullunitdrawings,page424

447567HullUnitdimensionsST92,page425

435546HullUnitdimensionsST93,page428

447545HullUnitdimensionsST94,page431

Deningtheforeandaftlocationofthehullunit

Thehullunitshouldpreferablybelocatedwithin1/3to1/10ofthevessel’sLength

BetweenPerpendiculars(LBP)fromitsForwardPerpendicular(FP).

DeviationsshouldnotbemadewithoutconsultingSimrad.

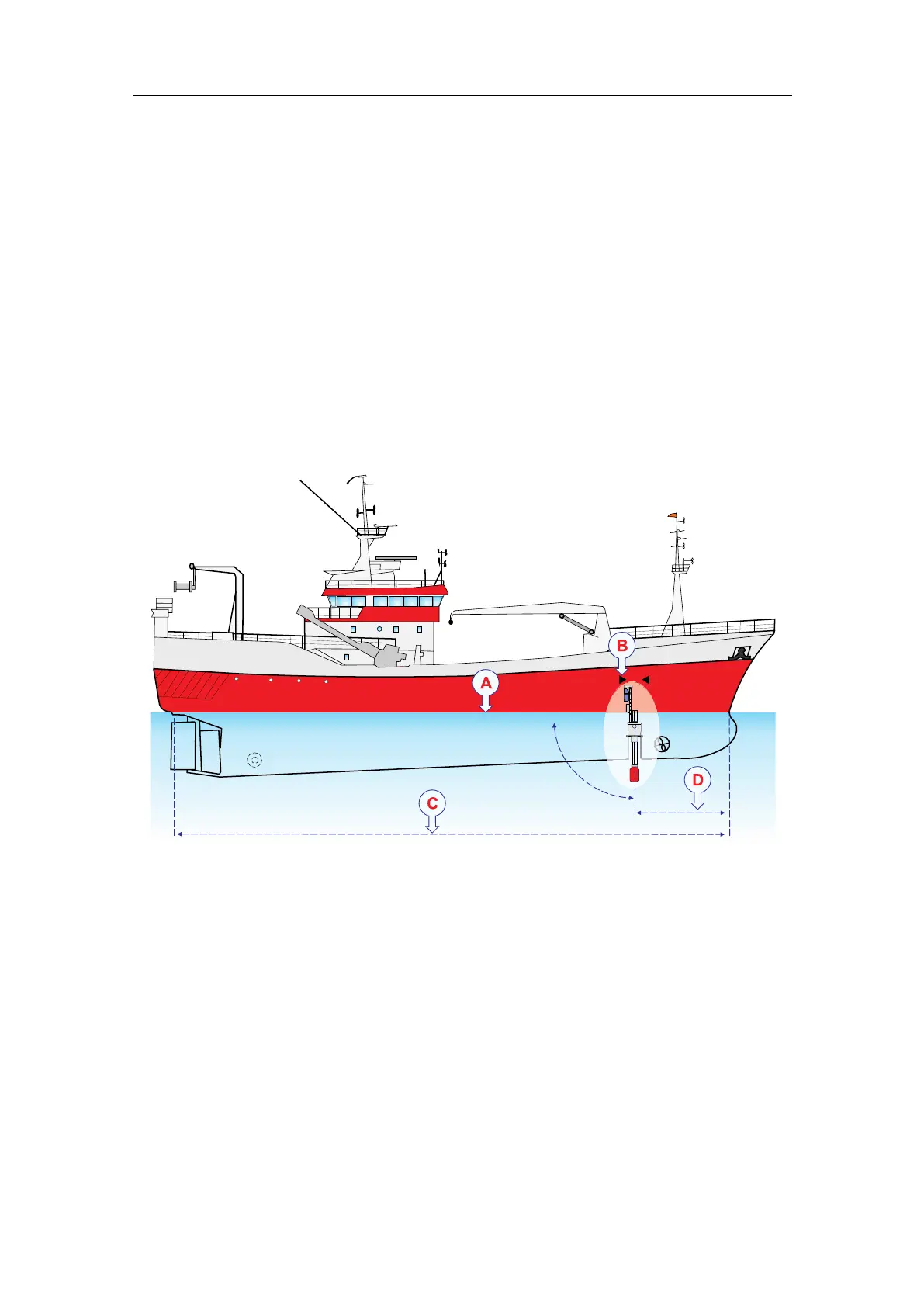

AWaterlevelatnormaltrim

BWeldingmarkstoindicatehullunitlocationwhendocking

CLengthBetweenPerpendiculars(LBP)

D1/3to1/10oftheLengthBetweenPerpendiculars(LBP)

Relatedtopics

Choosingthebestlocationforthehullunit,page59
