Simrad ST90 - Sonar Room Arrangement: Top View

To Next Page

To Previous Page

442703/B

Sonarroomarrangement:Topview

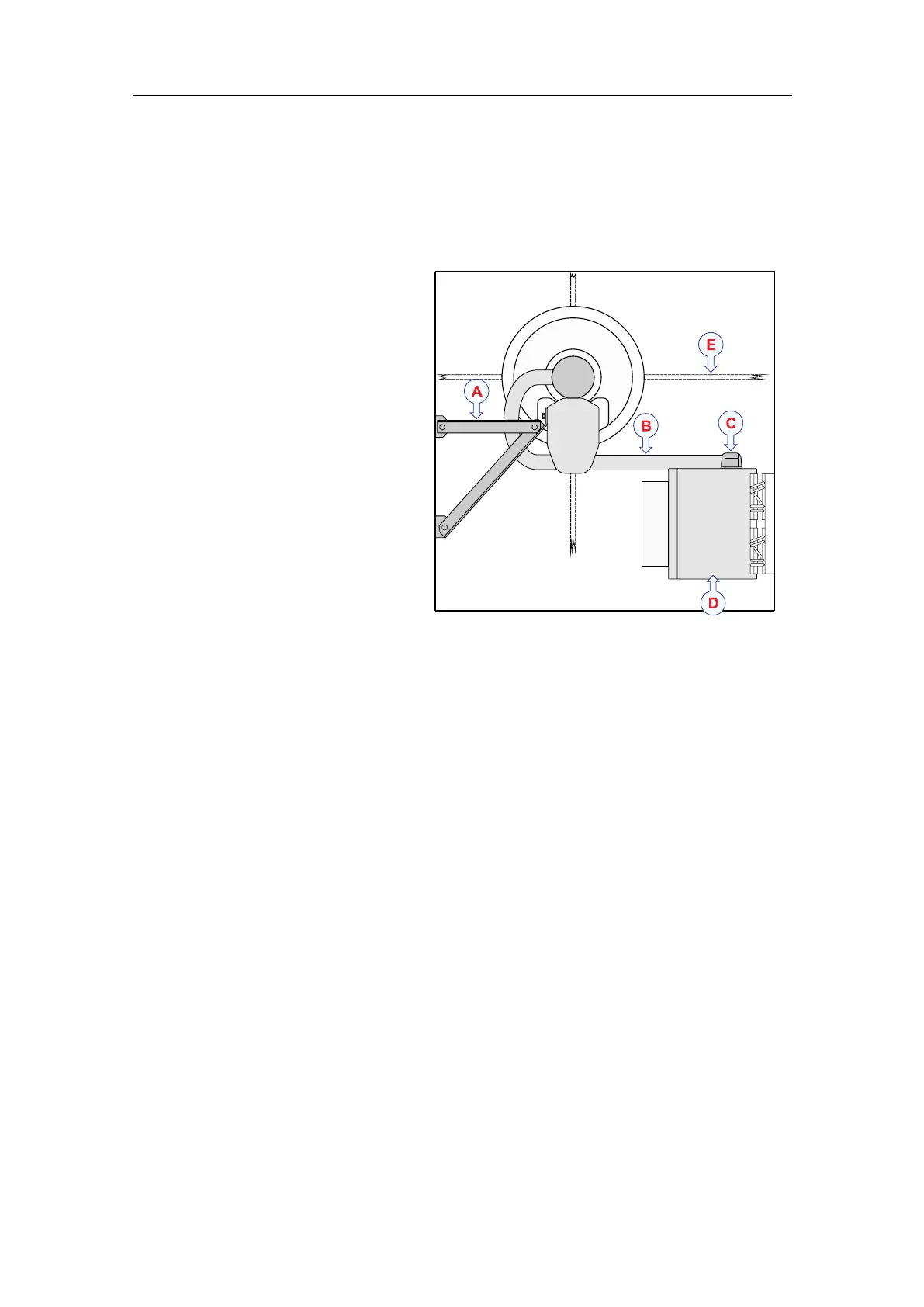

ThesonarroommustprovideamplespaceforalltheitemsprovidedwiththeST90.This

exampleshowsatypicalsonarroomseenfromabove.

Thesonarroommustbeeasily

accessibleusingasuitable

hatchoradoor.

AMechanicalsupport

brackets

BTransducercable

CTransducerconnector

DTransceiverUnit

EThelocationoffour

knee-plates(stiffeners)on

theinstallationtrunkis

indicated.

Thesizeofthehatchmust

allowtheentirehullunitto

beremovedwithoutbeing

disassembled.
