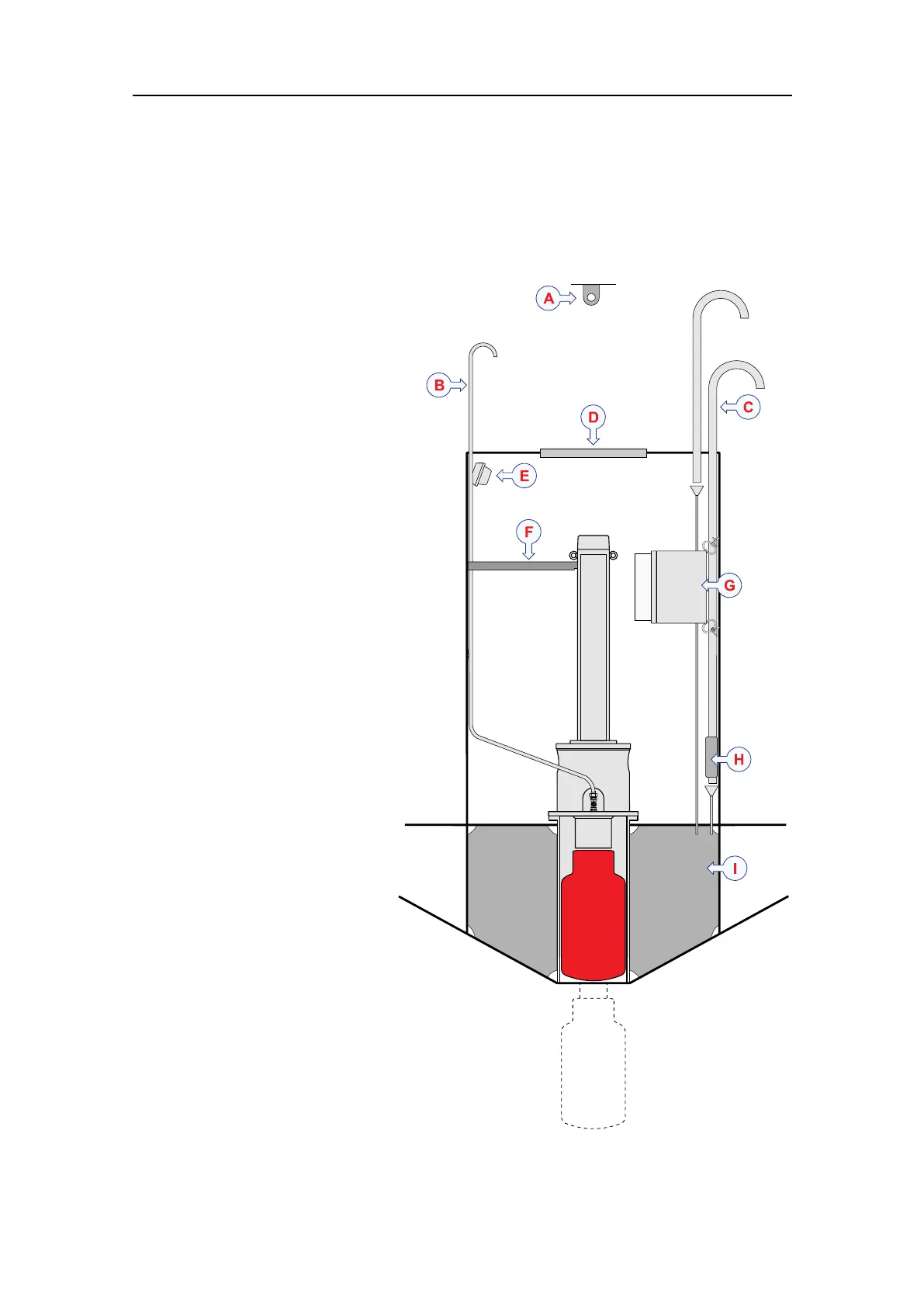

Hullunitinstallationexample:Sideview

Thehullunitislocatedinthesonarroom.Thisexampleshowsatypicalsonarroom

andhullunitseenfromtheside.Thehullunitismountedonthecentreaxisofthe

vessel,ontopofthekeel.

AFixingpointforlifting

apparatus(Minimumload

capacityis2000kg.)

BAirbleedingpipe(The

minimumdiameteris1/4"

(6.35mm).)

CAirventpipes(The

minimumdiameteris1/2"

(12.7mm).)

DAccesshatch

ELamp

FMechanicalsupport

brackets

Duetoitsheightand

weight,thehullunit

gantrymustbesecured

tothebulkheadbymeans

ofmechanicalsupport

brackets.

GTransceiverUnit

HHeater

IThreeorfourknee-plates

(stiffeners)mustbewelded

totheframesordecks.

Stiffentheinstallation

trunkinboththe

fore-and-aftand

athwartshipdirections

byweldingstrengthening

knee-platesbothtothe

trunkandtothedoubling

plate.

Relatedtopics

Installingthehullunit,

page124

Hullunitinstallationoverview,

page125

Installingthehullunit
