Simrad ST90 Installation Manual

442703/B
177

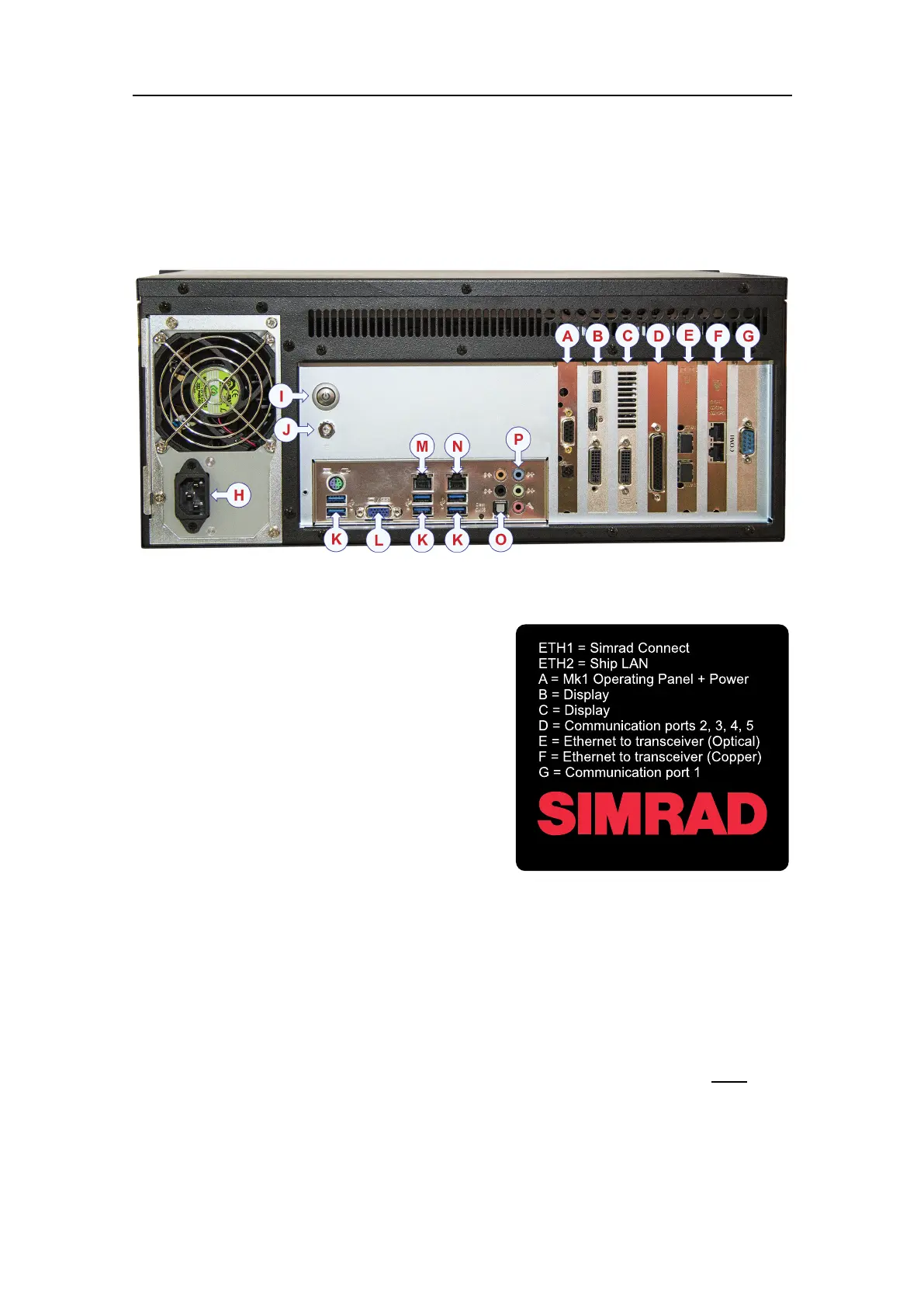

ProcessorUnitrearconnectors
TherearpanelontheProcessorUnitholdsconnectorsforthevariousST90cables.
Additionalconnectorsareprovidedonthefrontpanel.Thesearenotused.
TherearpanelontheProcessorUnitisttedwithlabelstoidentifythevarious
connectors.
AThesecablesareonlyusedwithOperating
PanelMk1.
•Controlcable:FromProcessorUnit
toOperatingPanel(Mk1)
Adedicatedseriallinecableisused
toconnecttheOperatingPaneltothe
ProcessorUnit.Thisisaspecialcable.
Ithasonecommonfemale15-pin
connectorinoneendleadingtotwo
separate9-pinconnectors(onemale
andonefemale)inthetwootherends
ofthecable.Thecablelengthis4.5
meters.Thefemaleconnectorconnects
tothetopsocketonslotA.
•DCpowercable:FromProcessorUnittoOperatingPanelPowerSupply
BVideocable:FromProcessorUnittodisplay(C9)
Thisisacommercialcable.Thedisplaycableisoftenphysicallyattachedtothe
display,andterminatedinthe“computerend”withamaleconnector.Ifthecableis
notattached,itisnormallyprovidedwiththedisplay.
IfyouneedtouseaDVI-to-SVGAadaptertoconnectyourdisplay,youmust
use
theleftDVI-Ioutput.ThisistheonlyoutputthatsupportstheSVGAsignals.
CVideocable
DSerialcables:FromProcessorUnittoexternaldevice(s)(C13)
Cablelayoutandinterconnections
