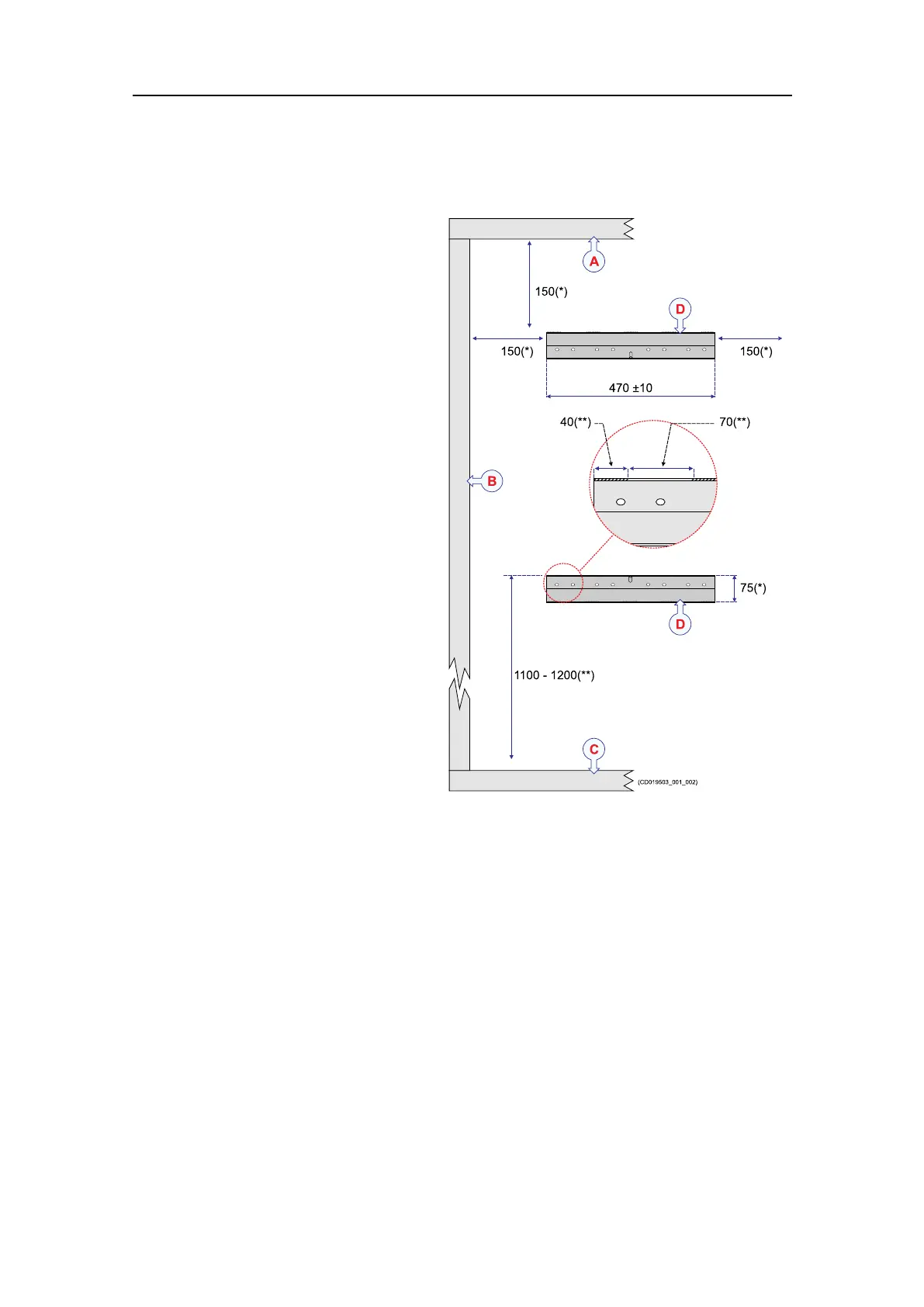

Installationofthemountingbrackets

ADeckhead

BBulkhead

CDeck

DAnglebarswiththreadedholes

forshockabsorbers.These

barsaresuppliedbyKongsberg

Maritime.

Relatedtopics

InstallingtheTransceiverUnit,

page153
