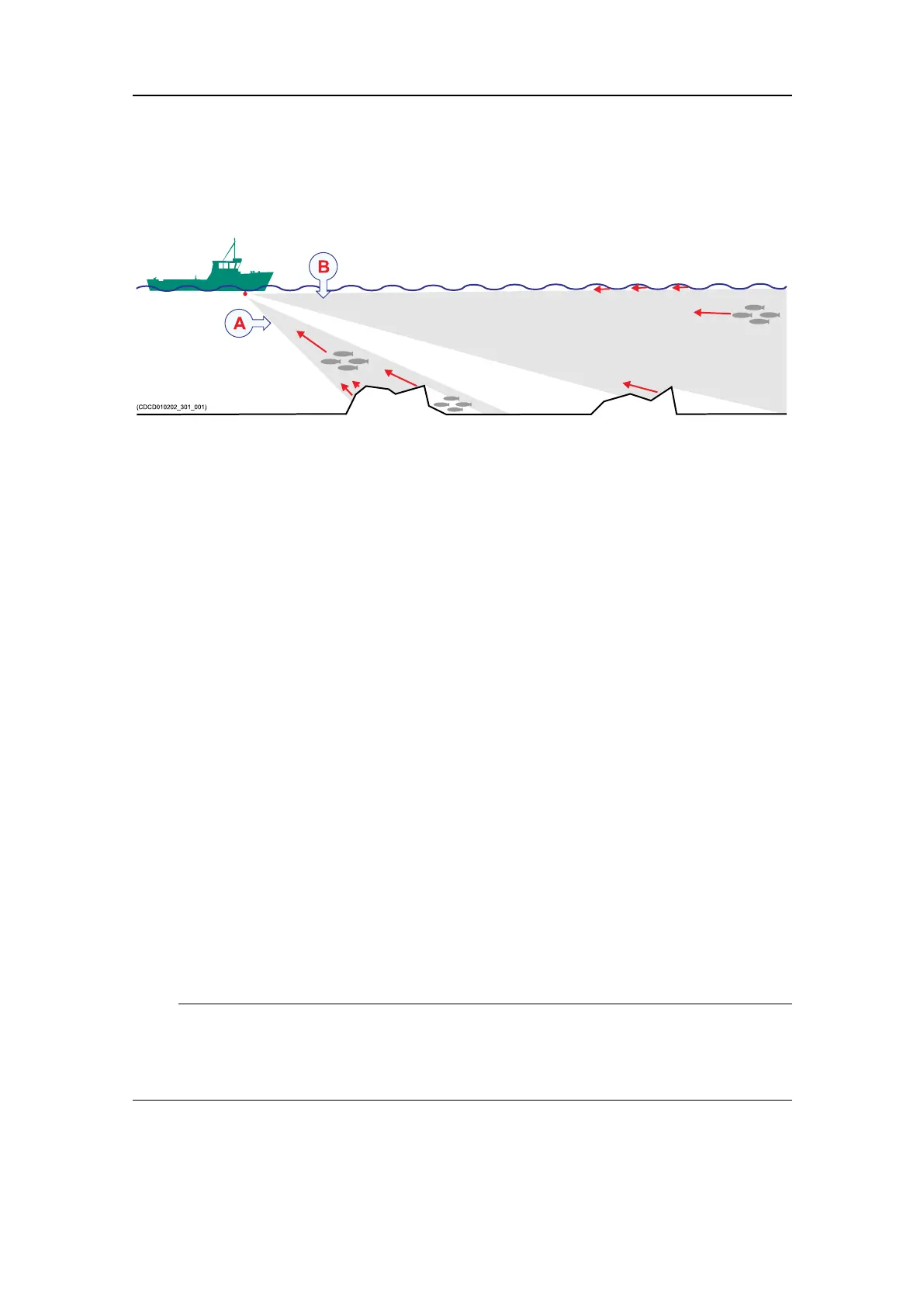

Theillustrationdemonstrateshowtheseabottomandtheseasurfacereturnechoes
backtoyourST90.
AInthissituationyouwillbeabletoidentifytheupperschoolofsh,butthelower
schoolwillbehiddenintheshadowoftheseabedrockformation.
BInthissituationyouwillseeseveralweakechoesfromthewavesandfromtherock
onthebottom,butyouwillstillbeabletoidentifytheschoolofsh.
Thereverberationiscausedbythetransmissionpulseitself.Itcanonlybereducedby
shorteningthepulsedurationorusingasmallerbeamwidth.
Relatedtopics
Acousticnoise,page76
Somemeanstoreduceacousticnoise
Severalfactorsarecontributingtotheperformanceofthehydroacousticequipmentused
onboardavessel.CarefulplanningoftheST90installationmayreducetheacoustic
noise.
Unfortunately,itisimpossibletosimplyprovideanumberofspecicproceduresto
reducethenoise.
Animportantfactoristhephysicallocationofthetransducer.Thisdependsonthe
vessel'sdesignandconstruction,howthehullisshaped,andhowthewaterrunsalong
thehull.Otherfactorsdealwithotherequipmentmountedonboard,andthiswillalsobe
vesseldependant.Atmoderateshipspeedsthemachinerynoiseisusuallydominant.At
mediumspeedstheownoiseincreasesmorerapidlyandtakesover,whileathigher
speedthepropellernoisewillbethemaincontributor.
Note
Theinformationheremustbeconsideredasgeneraladvice.EachST90installation
mustbehandledseparatelydependingonthehulldesignandtheotherelectricaland
mechanicalsystemsinstalledonthevessel.
Reducingownoise
Theshapeofthetransducer(ordomearoundit)mustbeasstreamlinedaspossible.
SimradST90InstallationManual
