CommunicationandpowercablefortheOperatingPanel

(Mk1)

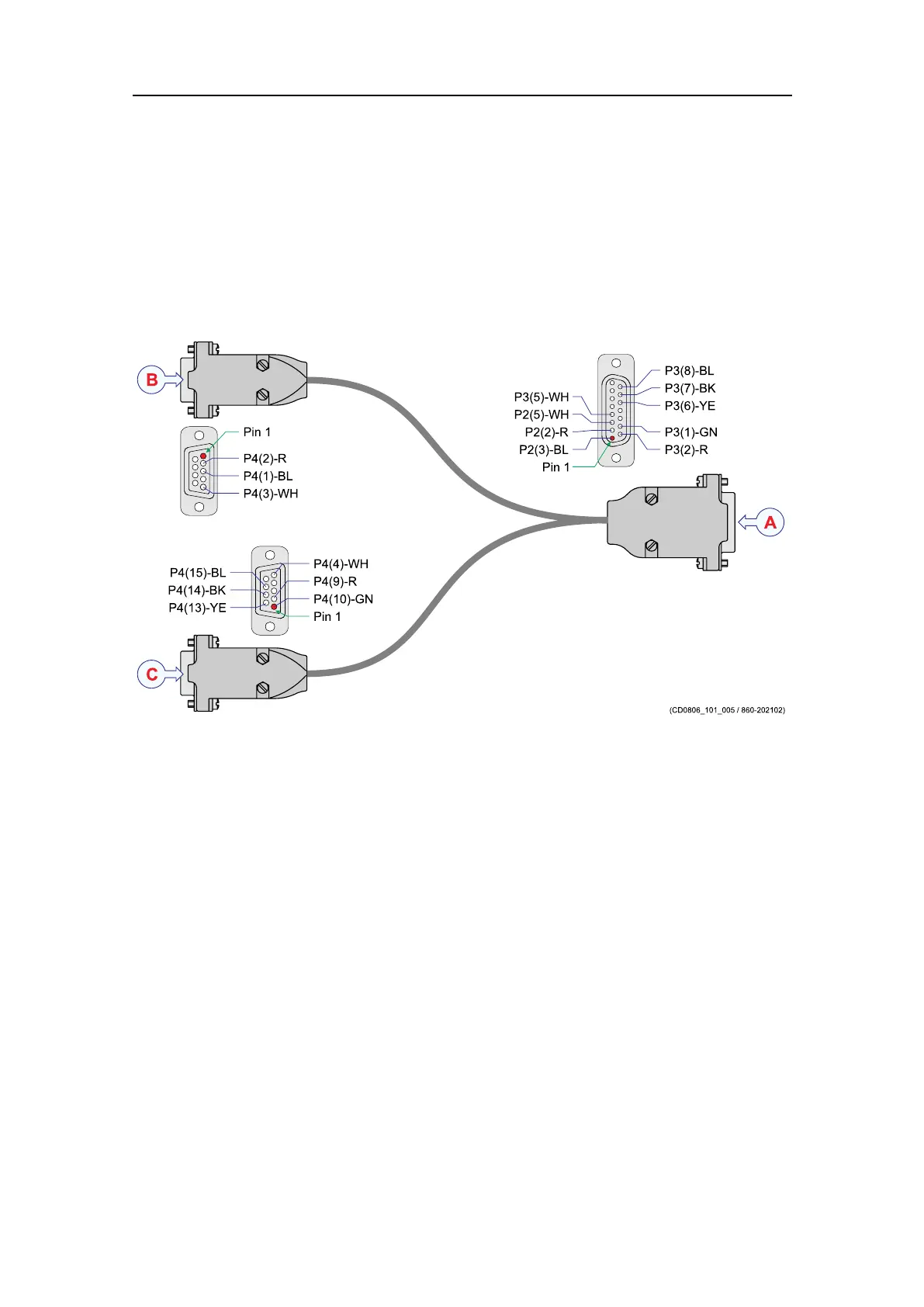

AdedicatedseriallinecableisusedtoconnecttheOperatingPaneltotheProcessorUnit.

Thisisaspecialcable.Ithasonecommonfemale15-pinconnectorinoneendleading

totwoseparate9-pinconnectors(onemaleandonefemale)inthetwootherendsof

thecable.

A15–pinD-connector,female,connectstothebottomoftheOperatingPanel.

B9–pinD-connector,female,connectstotherearsideoftheProcessorUnit.

C9–pinD-connector,male,connectstotherearsideoftheProcessorUnit.

Allconnectorsareseenfromthesolderside.

Thecablelengthis4.5meters.Itcannotbeextended.Asparecablebeorderedusing

partnumber380–202101.

Minimumcablerequirements

Notapplicable.ThecableissuppliedwiththeST90delivery.

Relatedtopics

Cabledrawingsandspecications,page206

Cablelayoutandinterconnections
