Simrad ST90 - 443179 Operating Panel Dimensions (Mk2)

To Next Page

To Previous Page

416

442703/B

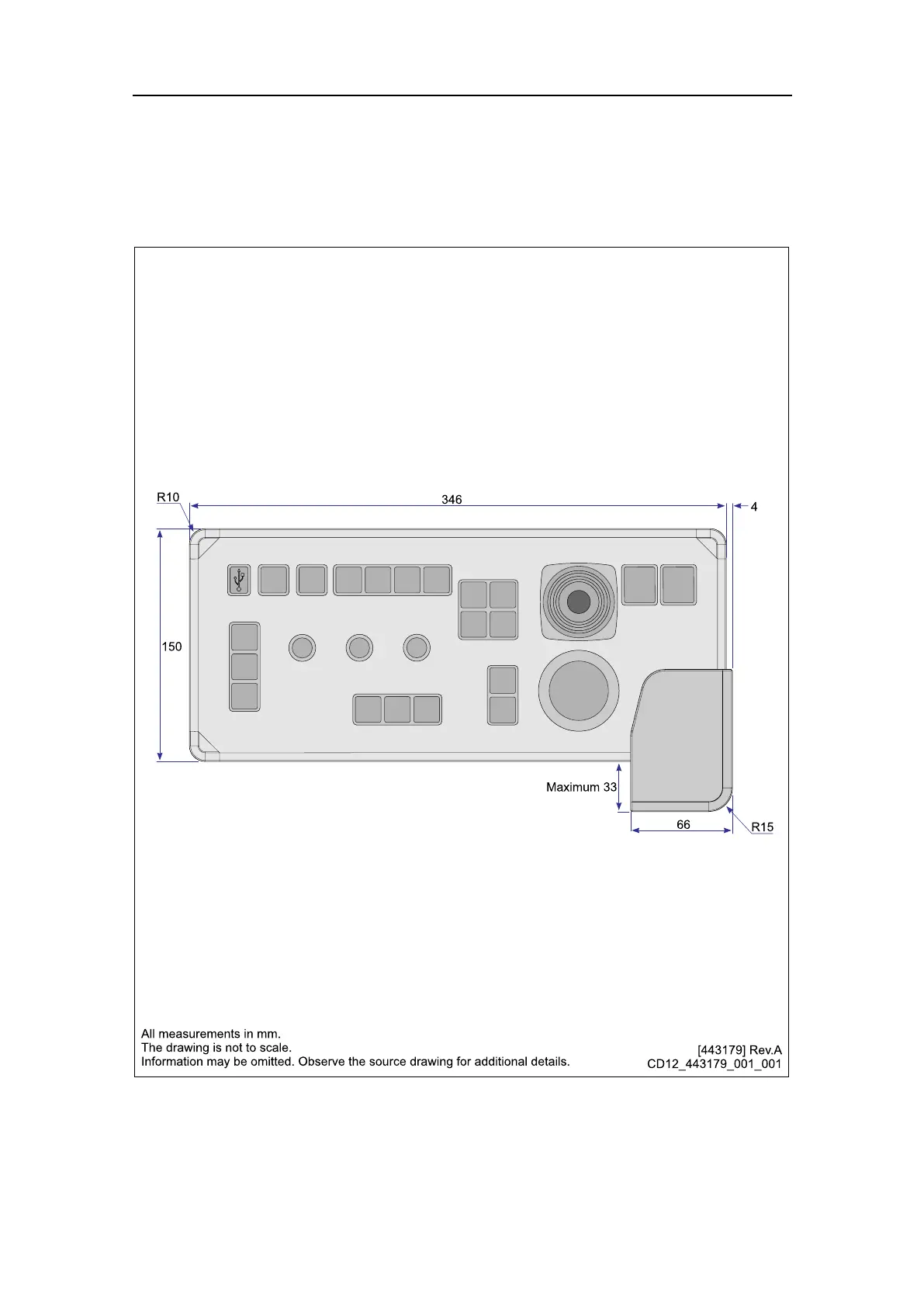

443179OperatingPaneldimensions(Mk2)

DownloadthesourcedrawingfromtheST90pagesonhttps://www.simrad.com.

SimradST90InstallationManual
