Simrad ST90 - RS-232 Serial Line Connection Using Three Wires

To Next Page

To Previous Page

210

442703/B

RS-232seriallineconnectionusingthreewires

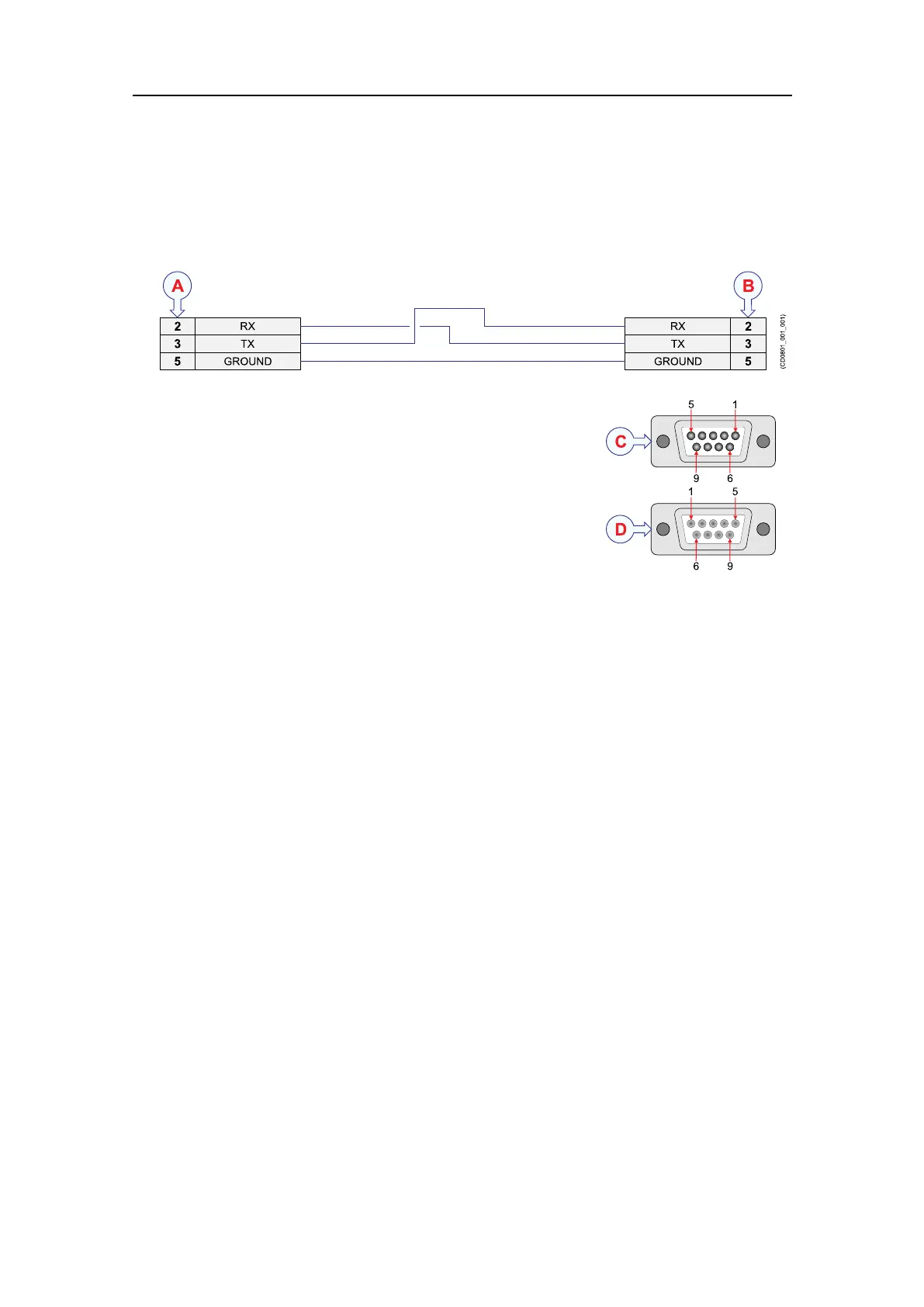

AnRS-232seriallineconnectionusingthree(3)wiresandNMEAdatagramsisa

commonwaytoconnecttheST90toexternaldevices.

ALocalconnection

BConnectiononremotedevice

CFemale9-pinD-Subminiatureconnector

DMale9-pinD-Subminiatureconnector

Unlessotherwisespecied,thiscablemustbeprovided

bytheinstallationshipyard.Notethatthiscabledoes

notsupportallthesignalsinthestandardRS-232

specication.

Minimumcablerequirements

•Conductors:2x4x0.5mm

•Screen:Overallbraided

•Voltage:60V

•Maximumouterdiameter:Denedbytheplugsand/orthecablegland

Ifyouneedtoinstallaverylongcable,increasethecrosssection.

Relatedtopics

Aboutseriallines,page230

Cabledrawingsandspecications,page206
