442703/B

197

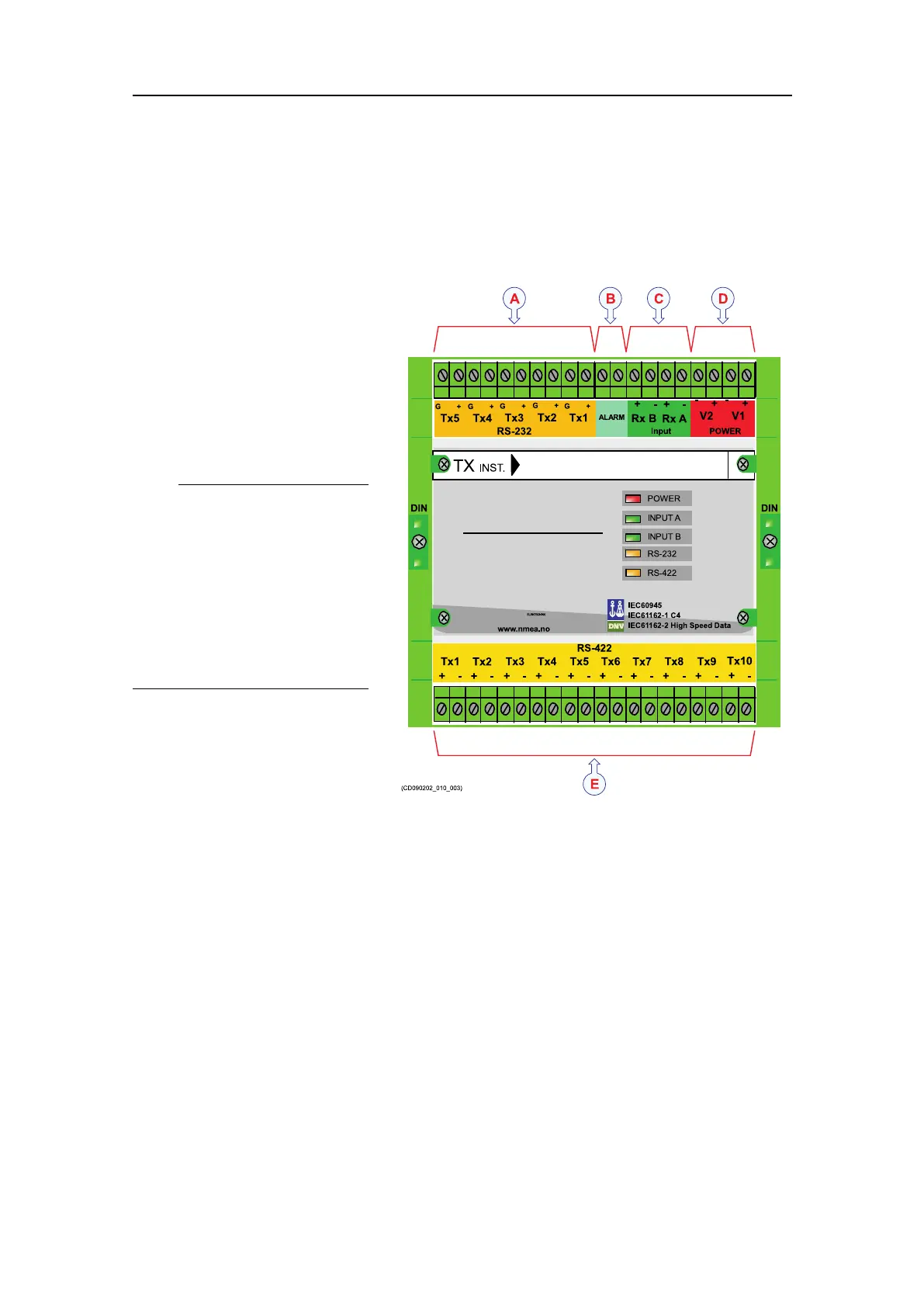

ØverlandUPC-5000PConnections

TheØverlandUPC-5000Pseriallinesplitterofferstwoseparateinputsandfteen

RS-232andRS-422outputs.Theseriallinesplitterrequiresadedicatedpowersupply

providing15to30VDC.

AOutputs:5xRS-232

BRelayNO/NCbyinternal

strap

CInput

DPowerrequirements:+15-

30VDC

EOutputs:10xRS-422

Note

Thisinformationwascopied

fromthemanufacturer’ s

documentation.Thetechnical

specicationsmaybechanged

withoutpriornotice.To

ensurethatyourinformation

iscorrect,alwaysconsultthe

manufacturer’ sowndocuments.

Relatedtopics

ØverlandUPC-5000PSerialline

splitterdescription,page195

ØverlandUPC-5000PTechnical

specications,page196

ØverlandUPC-5000PConnections,page197

ØverlandUPC-5000PDimensions,page198

Cablelayoutandinterconnections
