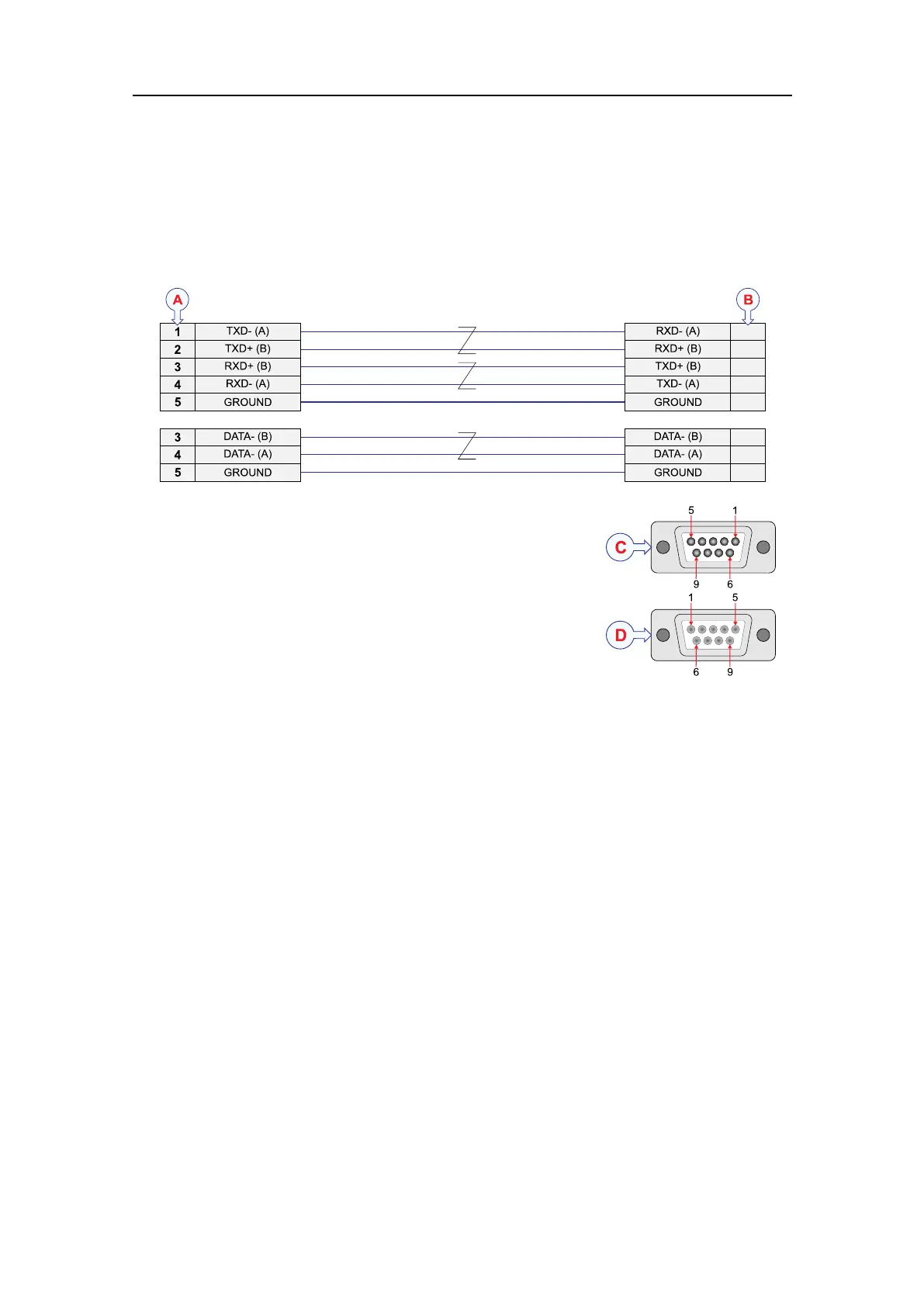

RS-485seriallineconnectionusingtwoorfourwires

AnRS-485seriallineconnectionusingtwoorfourwiresiscommonwaytoconnect

theST90toexternaldevices.Thisformatisrecommendediftheserialcableneedsto

beverylong.

ALocalconnectiontotheserialadapter

BConnectiononremotedevice(Formoreinformation,

refertotheend-userdocumentationprovidedbythe

manufacturer.)

CFemale9-pinD-Subminiatureconnector

DMale9-pinD-Subminiatureconnector

Unlessotherwisespecied,thiscablemustbeprovided

bytheinstallationshipyard.

Minimumcablerequirements

•Conductors:2x5x0.5mm

•Screen:Overallbraided

•Voltage:60V

•Maximumouterdiameter:Denedbytheplugsand/orthecablegland

Useacablewithtwistedpairs.Ifyouneedtoinstallaverylongcable,increasethe

crosssection.

Relatedtopics

Aboutseriallines,page230

Cabledrawingsandspecications,page206

SimradST90InstallationManual
