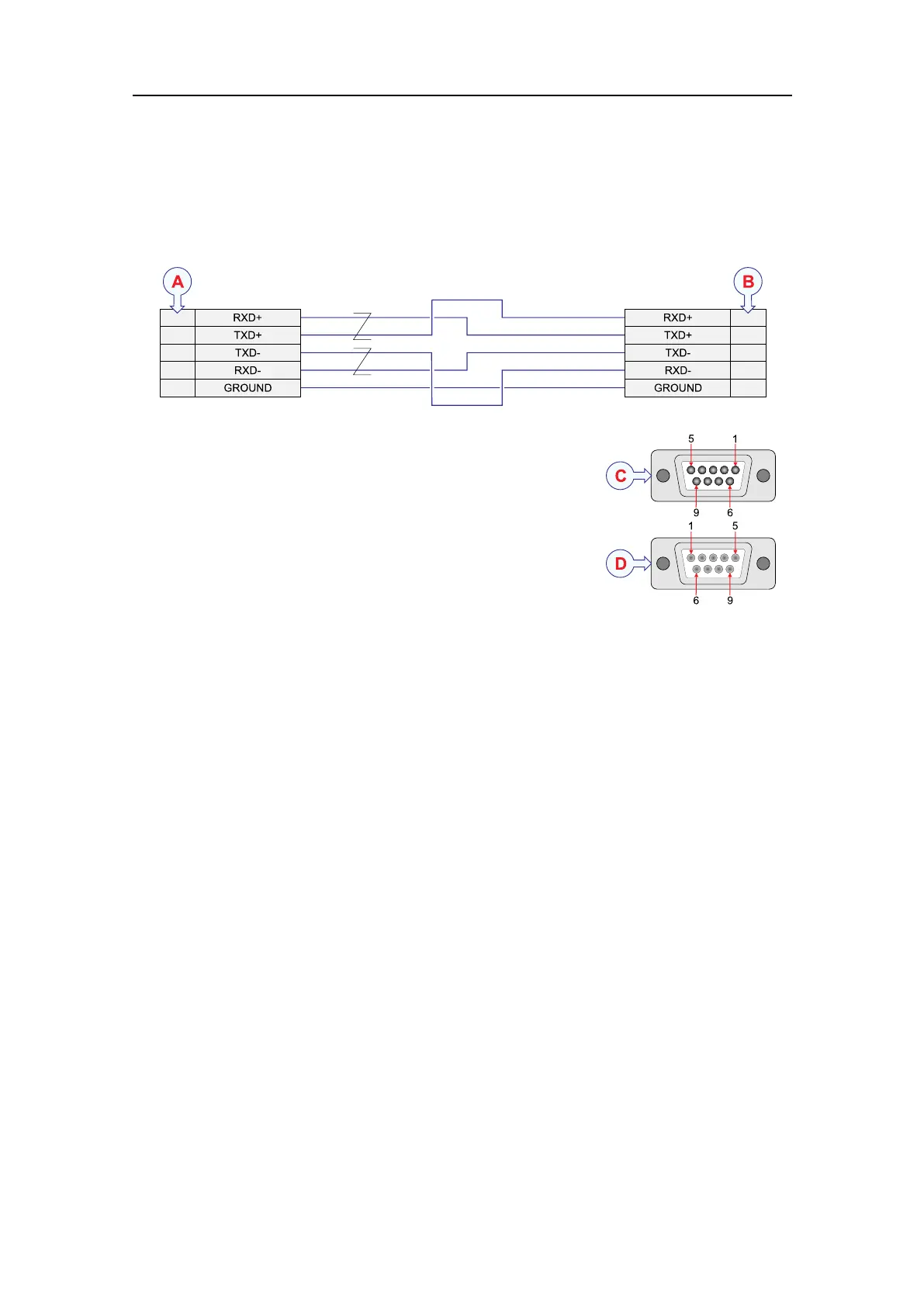

RS-422seriallineconnectionusingvewires

AnRS-422seriallineconnectioncantransmitdataatratesashighas10millionbitsper

second,andmaybesentoncablesaslongas1500meters.

ALocalconnection

BConnectiononremotedevice

Formoreinformation,refertotheend-user

documentationprovidedbythemanufacturer.

CFemale9-pinD-Subminiatureconnector

DMale9-pinD-Subminiatureconnector

Unlessotherwisespecied,thiscablemustbeprovided

bytheinstallationshipyard.

Minimumcablerequirements

•Conductors:2x5x0.5mm

•Screen:Overallbraided

•Voltage:60V

•Maximumouterdiameter:Denedbytheplugsand/orthecablegland

IfyouwishtouseRS-422orRS-485serialcommunication,useacablewithtwisted

pairs.Ifyouneedtoinstallaverylongcable,increasethecrosssection.

Relatedtopics

Aboutseriallines,page230

Cabledrawingsandspecications,page206
