442703/B

207

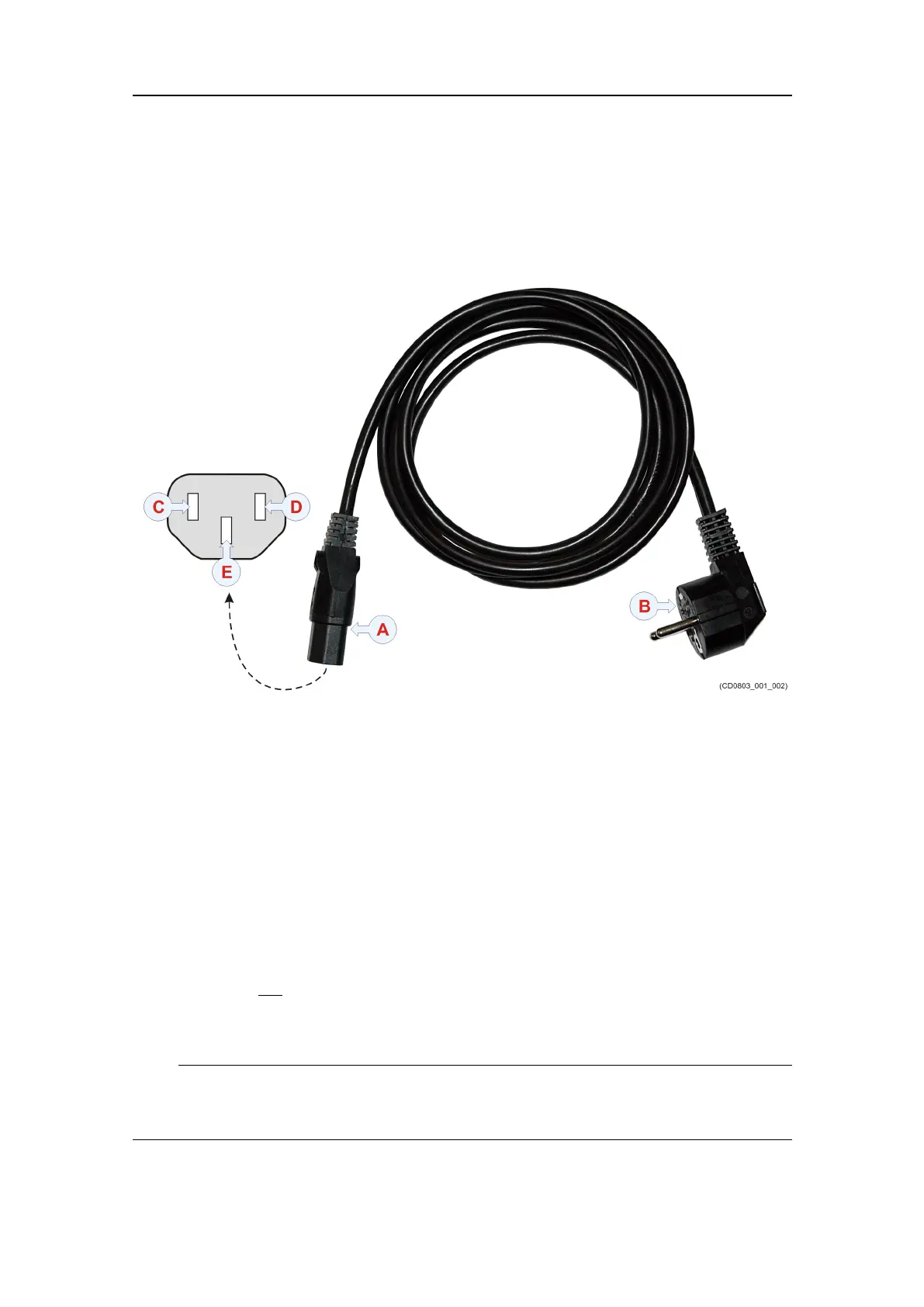

ACpowercableusingIECC13inlinesocket

ThiscableisusedtoconnectanyunitordevicetoACmainssupply.Itiscommercial,

andnormallyusedfor115and230V AC.Theinlinesocketandplugcomplytothe

IEC60320standard.

AIEC13linesocket-maybettedwithalockingdevice

BCEE7/7malepowerplug

CLive(normallyidentiedwithBlueinsulation)

DNeutral(normallyidentiedwithBrowninsulation)

EGround(normallyidentiedwithYelloworYellow/Greeninsulation)

AstandardcommercialACmainscableisused.Thepowercableisnormallyterminated

withanfemaleIECC13inlinesocket.TheACmainsendisterminatedinanAC

connectorsuitableforthelocalstandardand/ortheoutputsocketsonanuninterruptible

powersupply(UPS).Ifthisisnotthecase,youmustreplacetheACconnector.

Thetypicalcablelengthisbetween1,5and2meters.Ifthisistooshortyoumustusean

extensioncable(not

recommended),mountanewpoweroutletwithinrange,ormake

yourownpowercablewithsufcientlength.Ifyouuseanuninterruptiblepowersupply

(UPS),youcanalsomovetheUPStoadifferentlocationwithinrange.

Note

TherearesubstantialdifferencesbetweenAmericanandBritishnomenclaturerelatedto

powerplugsandsockets.Observelocalstandardsandregulations.

Cablelayoutandinterconnections
