442703/B

217

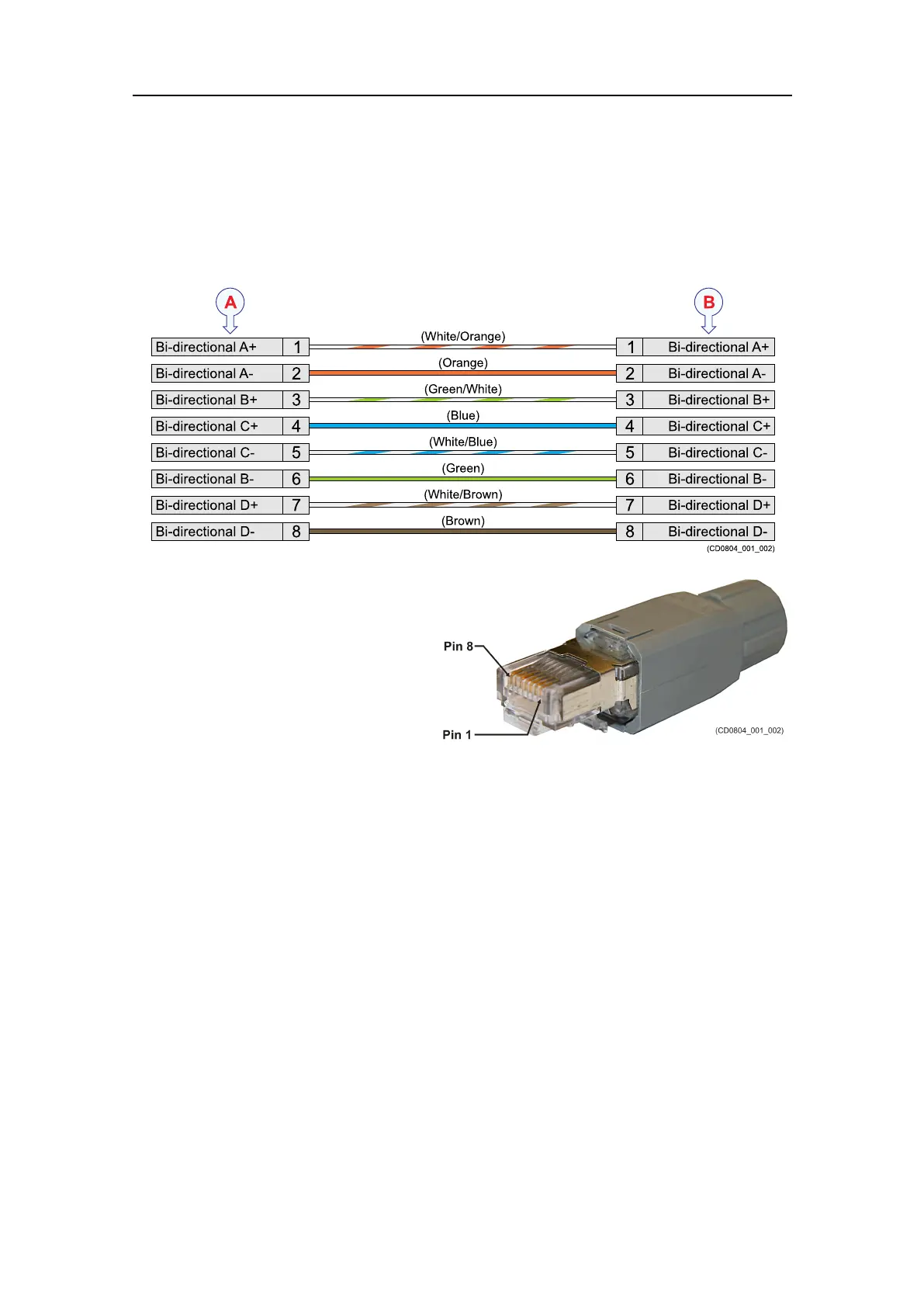

RJ45HighspeedEthernetcable(1000Base-t)

MosthighspeeddataconnectionsbetweentheST90systemunitsaremadeusing

Ethernetcables.ThesecablesmayalsobeusedbetweentheST90andperipheral

equipment.

ALocalEthernetconnection

BConnectiononexternalnetwork

device

Ethernetcablesareavailable

commerciallyindifferentlengths,

coloursandcategories.Normally,

CAT-5EandCA T-6cablesare

usedinlocalareanetworkswith

bandwidthsexceeding100Mbit.

Minimumcablerequirements

Itisveryimportantthathigh-qualityEthernetcablesareused.YoumustuseCA T-5E

STP(ShieldedTwistedPair)qualityorbetter.Ifyouusecableswithlowerbandwidth

capacityyouwillreducetheST90performance.

Relatedtopics

Cabledrawingsandspecications,page206

Cablelayoutandinterconnections
