Simrad ST90 - Topside Cable Plan with Optional Operating Panel Mk1

To Next Page

To Previous Page

442703/B

163

TopsidecableplanwithoptionalOperating

PanelMk1

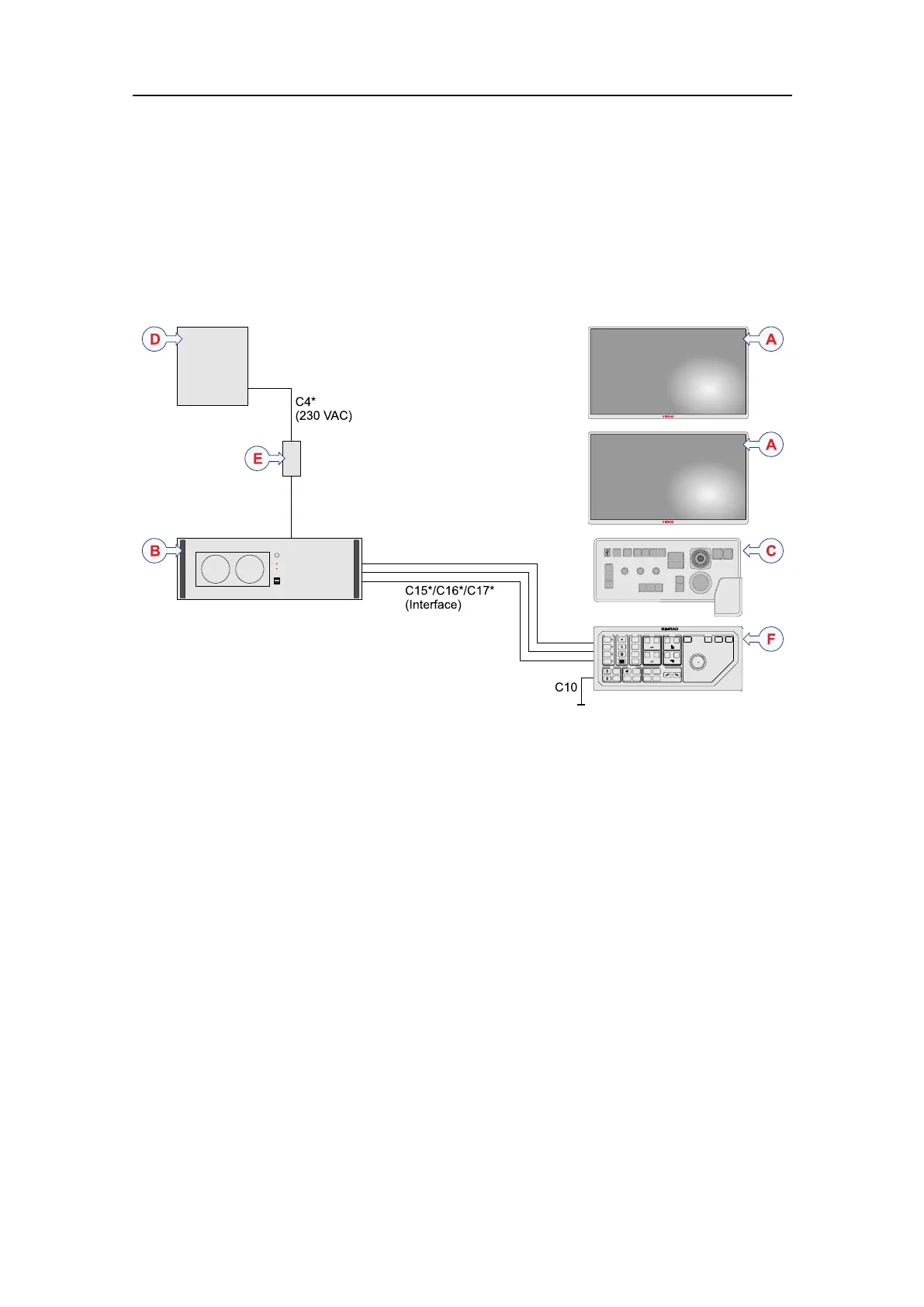

YoucanalsousetheMk1OperatingPanelwithyourST90.Youcanuseitinsteadofthe

Mk2OperatingPanel,oryoucanusebothatthesametime.

ADisplay

BProcessorUnit

COperatingPanel(Mk2)

DUninterruptiblePowerSupply(UPS)

EOperatingPanelPowerSupply

FOperatingPanel(Mk1)

Relatedtopics

Topsidecables,page166

TopsidecableswithoptionalOperatingPanelMk1,page167

Sonarroomcables,page168

Comments,page169

InstallingtheST90cables,page171

Cablelayoutandinterconnections
