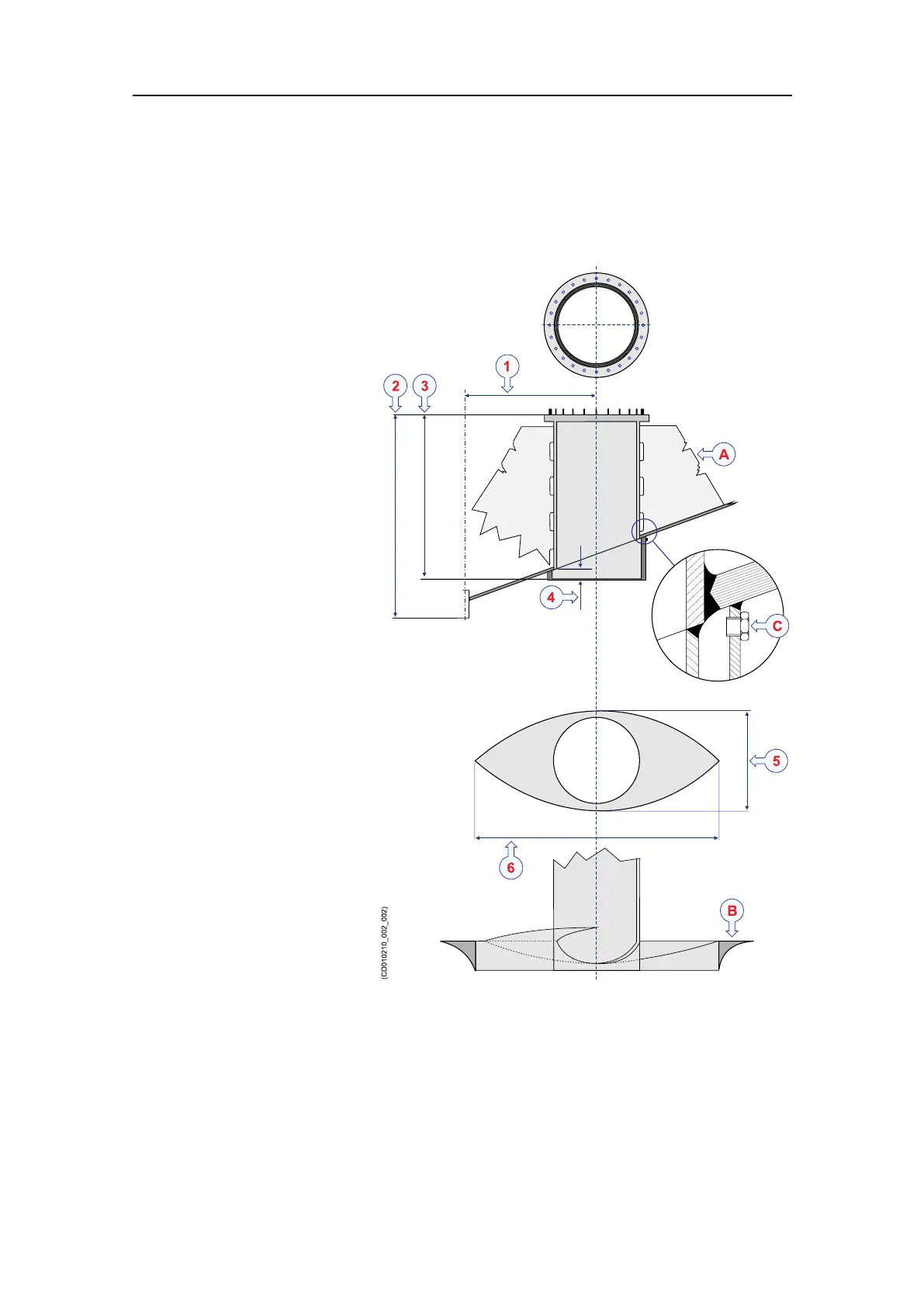

Installationexample:Oillledtype

Theillustrationdemonstratesthemountingprinciplesforanoillledtrunk.

Thedrawingisnottoscale.

Allmeasurementsarein

mm.Thekeymeasurements

are:

1Horizontaldistance

fromthekeelto

thecentreofthe

installationtrunk:As

shortapossible

2Heightfromthebottom

ofkeeltothetopof

theinstallationtrunk:

1200mm(Maximum)

3Totalheightofthe

installationtrunk

(withoptionalblister):

1090mm(Minimum)

440mm(Minimum)

5610mm(Minimum)

62.5-3x5"

Thecircularopeningin

theblistermusthavethe

samediameterastheinside

diameteroftheinstallation

trunk.

AThreeorfour

knee-plates(stiffeners)

mustbeweldedtothe

framesordecks.

Thickness:10mm

(Minimum)

BDeectionbracketsmustonlybeweldedtotheshell-plating.

Thickness:6mm(Minimum)

COildrainageplug

Relatedtopics

Mountingtheinstallationtrunk,page109

Installationtrunkmountingoverview,page110

Mountingtheinstallationtrunk
