Simrad ST90 - Connecting the Transceiver Unit to Vessel Ground

To Next Page

To Previous Page

158

442703/B

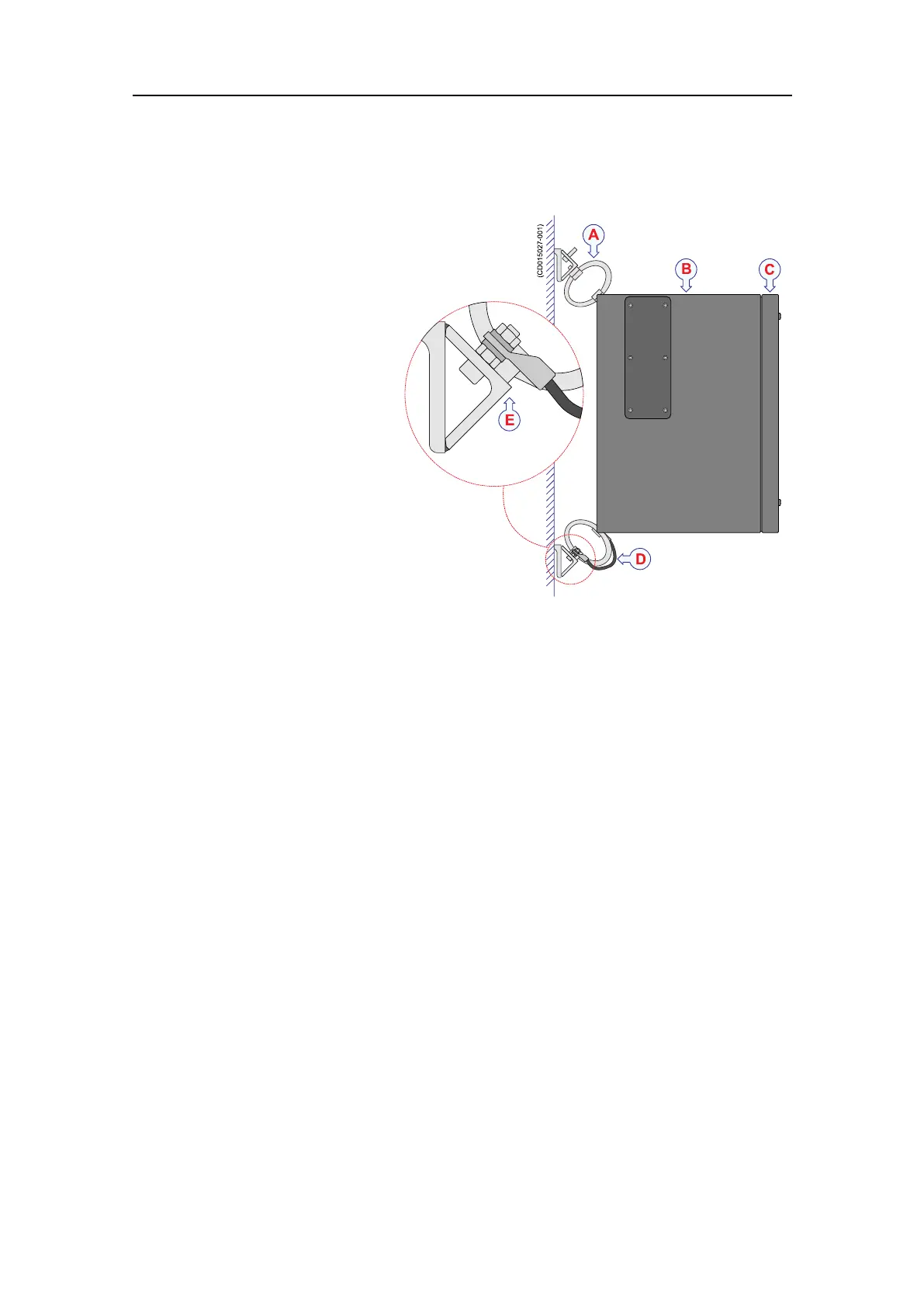

ConnectingtheTransceiverUnittovesselground

AUppershockabsorber

BTransceiverUnitcabinet

CCabinetdoor

DGroundingcable

EGroundingcable,detail

Relatedtopics

InstallingtheTransceiverUnit,

page153
