Simrad ST90 - Ethernet Cable with Noise Suppressor from Transceiver Unit to Motor Control Unit

To Next Page

To Previous Page

224

442703/B

EthernetcablewithnoisesuppressorfromTransceiverUnit

toMotorControlUnit

OneEthernetcableconnectstheTransceiverUnittotheMotorControlUnit.Inorderto

reducetheelectricalnoise,anoisesuppressordeviceisttedtotheEthernetcable.

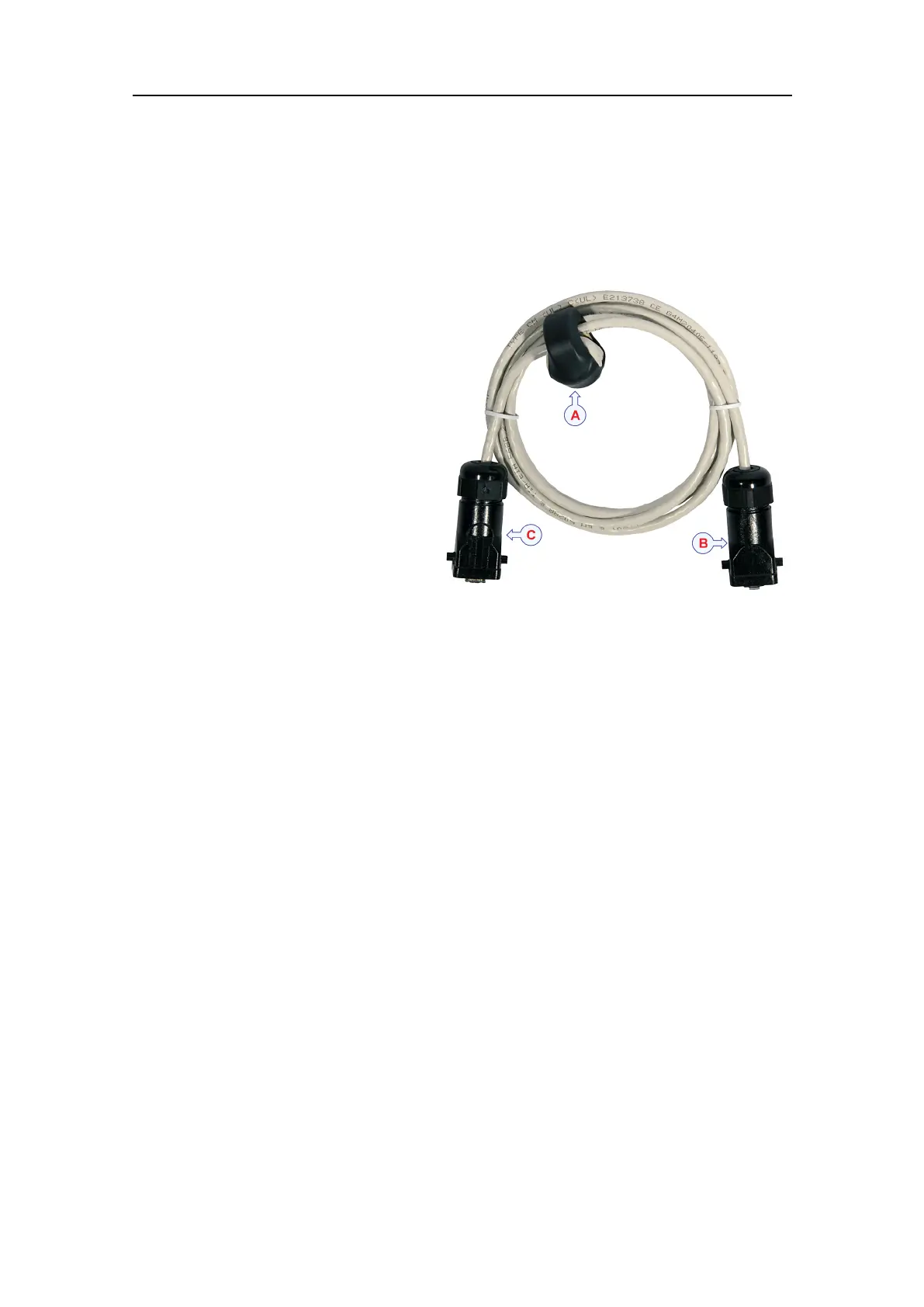

ANoisesuppressor

BConnecttoTransceiverUnit

CConnecttoMotorControlUnit

Thenoisesuppressor(A)islocated

closetoEthernetplug(C).Thisis

the"remote"plug.This"remote"

plugmustbeconnectedtotheMotor

ControlUnit.

•Length:9.7m

•Partnumber:338859

Minimumcablerequirements

Notapplicable.Thecableissupplied

withtheST90delivery.

Relatedtopics

Cabledrawingsandspecications,page206
