164
442703/B

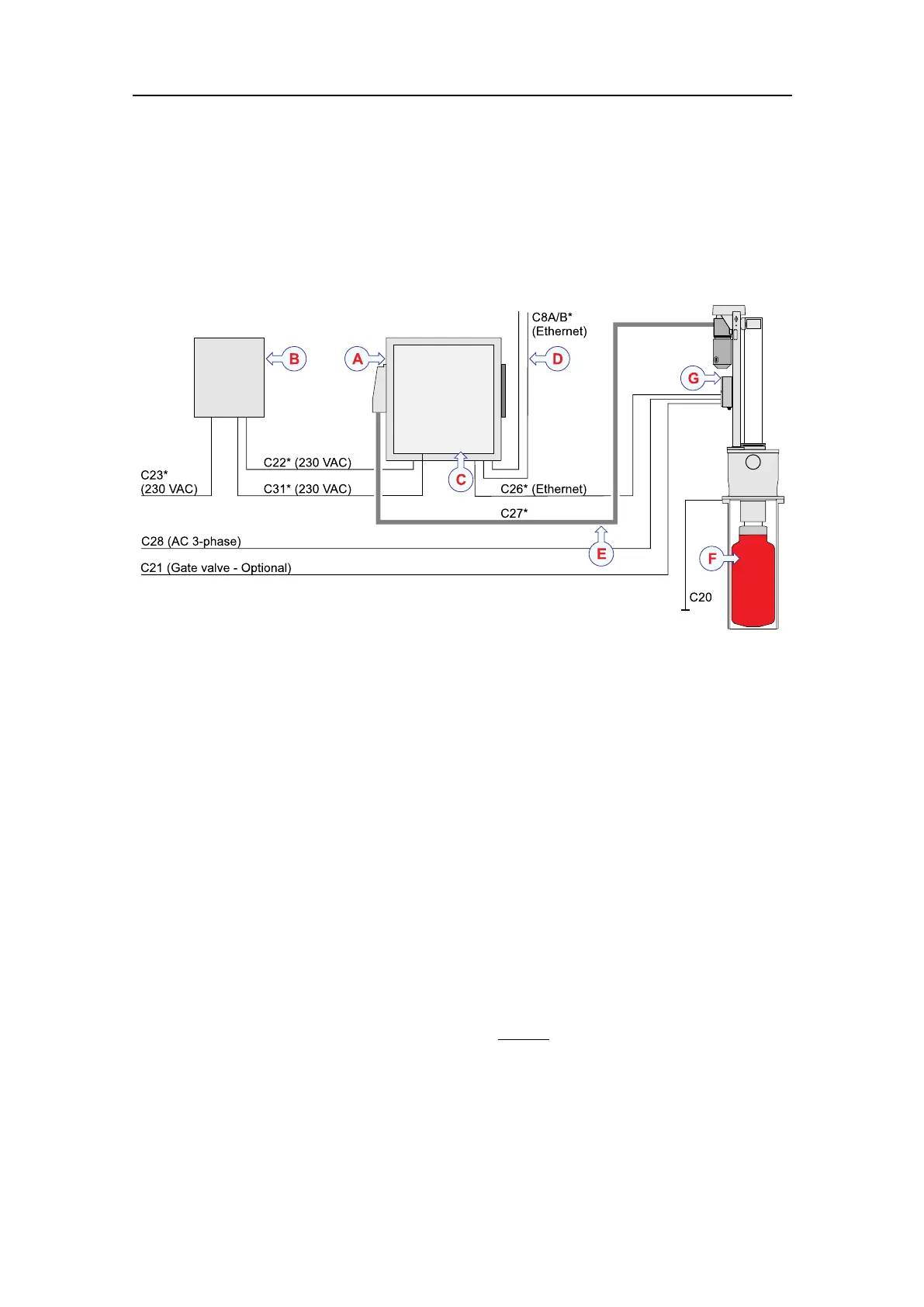

Sonarroomcableplan
ThesonarroomcablesincludethoseusedtoconnecttheST90unitstoACmainspower,
aswellasthecontrolcablesbetweentheunits.TwohighcapacityEthernetcables
connecttheProcessorUnittotheTransceiverUnit.
ATransceiverUnit
BUninterruptiblePowerSupply(UPS)
CHeatexchanger
DTwohighcapacityEthernetcablesconnecttheProcessorUnittotheTransceiver
Unit.
ETransducercable
FTransducer
GMotorControlUnit
Cablesidentiedwithanasterisk(*)aresystemorcommercialcables.Thesecablesare
providedwiththeST90deliveryortherelevantitem.Themaximumlengthofeach
EthernetcablefromtheProcessorUnittotheTransceiverUnitis100meters.Cable
numbersthatarenotusedaresparesforoptionalequipmentand/orfutureexpansions.
Itisveryimportantthathigh-qualityEthernetcablesareused.YoumustuseCA T-5E
STP(ShieldedTwistedPair)qualityorbetter.Ifyouusecableswithlowerbandwidth
capacityyouwillreducetheST90performance.Donot
connecttheProcessorUnitto
theTransceiverUnitusinganexistinglocalareanetwork(LAN).
SimradST90InstallationManual
