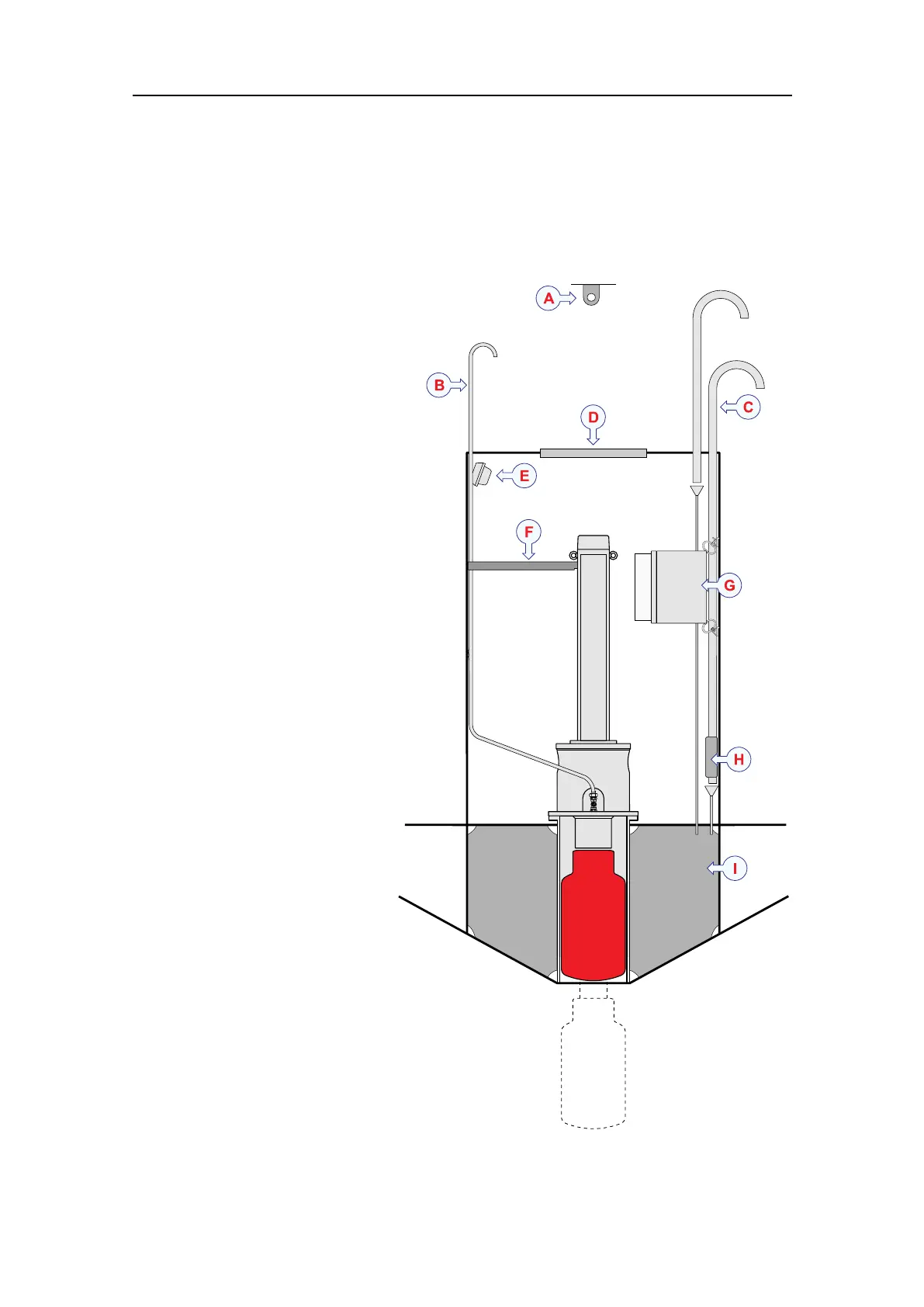

Sonarroomarrangement:Sideview

ThesonarroommustprovideamplespaceforalltheitemsprovidedwiththeST90.This

exampleshowsatypicalsonarroomandhullunitseenfromtheside.Thehullunitis

mountedonthecentreaxisofthevessel,ontopofthekeel.

AFixingpointforlifting

apparatus2000kg

BAirbleedingpipe(The

minimumdiameteris1/4"

(6.35mm).)

CAirventpipes(The

minimumdiameteris1/2"

(12.7mm).)

DAccesshatch

ELamp

FMechanicalsupport

brackets

GTransceiverUnit

HHeater

IThreeorfourknee-plates

(stiffeners)mustbewelded

totheframesordecks.

Thesonarroommustbeeasily

accessibleusingasuitable

hatchoradoor.Thesizeof

thehatchmustallowtheentire

hullunittoberemovedwithout

beingdisassembled.
