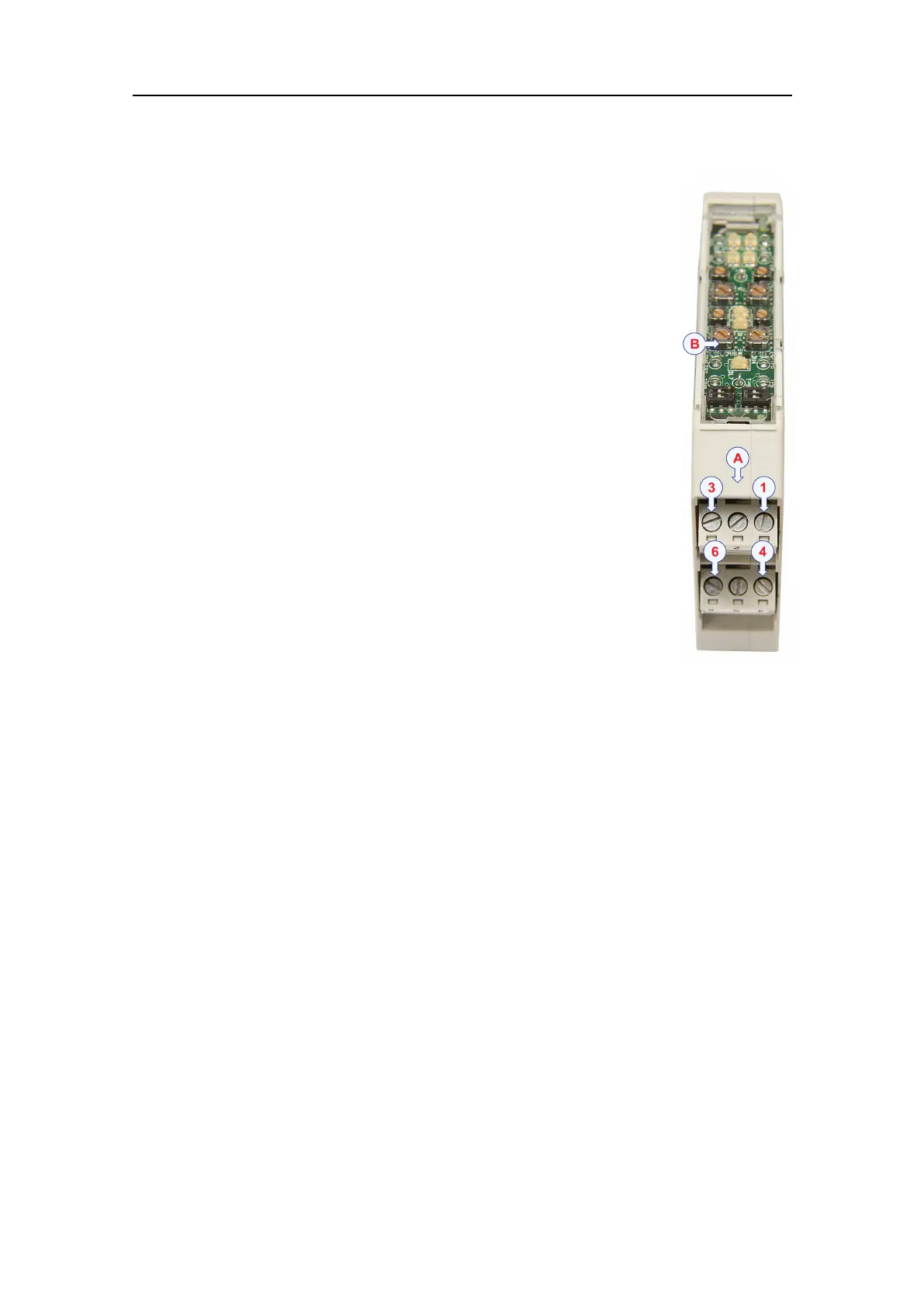

AConnectors1through6asindicatedbythearrows.

Notethateachofthetwoconnectorelementscanbepulledout

oftheIOModuleforeasyaccess.

BCongurationboard

Unlessotherwisespecied,thiscablemustbeprovidedbythe

installationshipyard.

Minimumcablerequirements

•Conductors:2x5x0.5mm

•Screen:Overallbraided

•Voltage:60V

•Maximumouterdiameter:Denedbytheplugsand/orthecable

gland

Ifyouneedtoinstallaverylongcable,increasethecrosssection.

Relatedtopics

Cabledrawingsandspecications,page206
