UM0306 General purpose timer (TIMx)
229/519

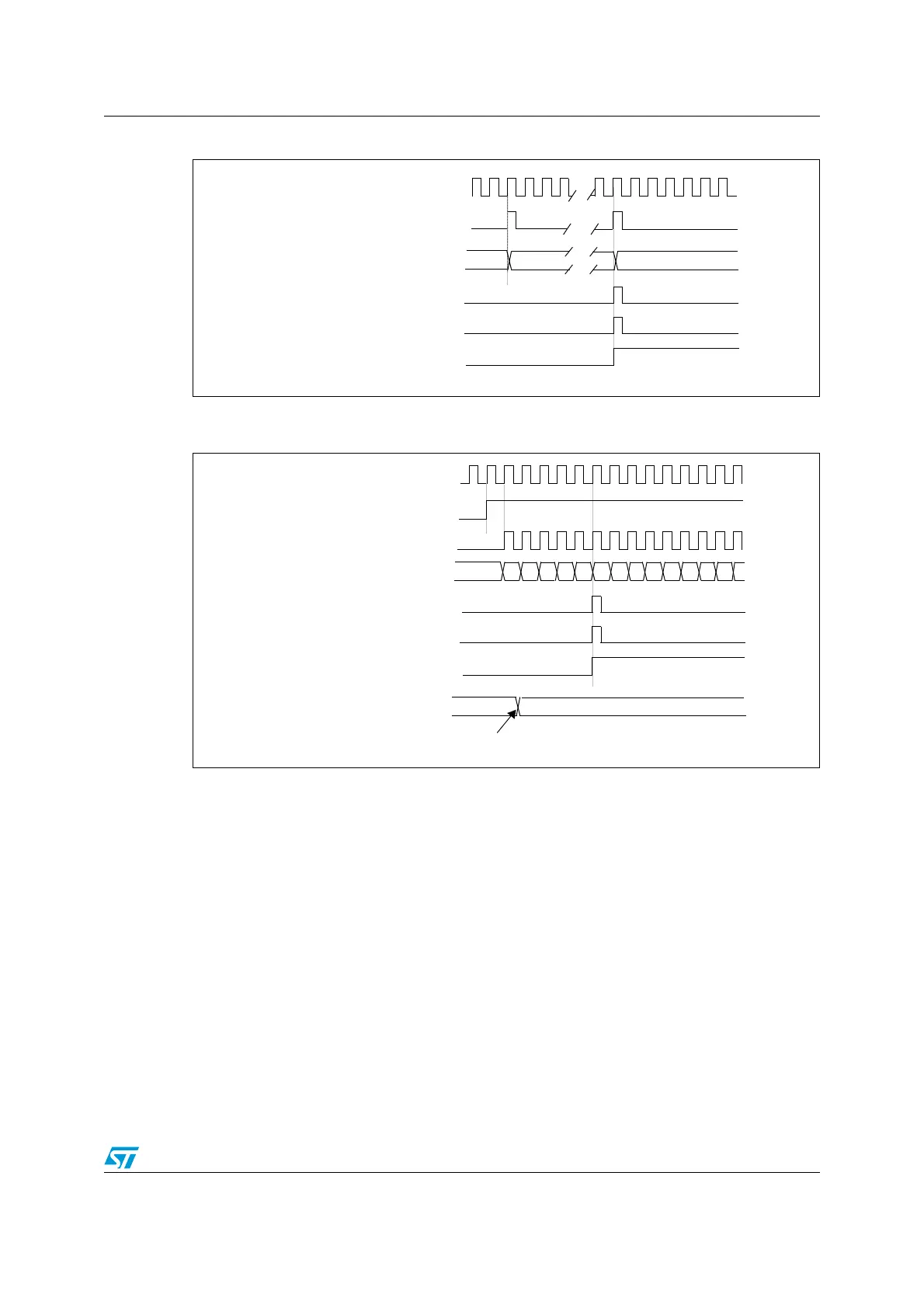

Figure 84. Counter timing diagram, internal clock divided by N
Figure 85. Counter timing diagram, Update event when repetition counter is not
used
Center-aligned mode (up/down counting)
In center-aligned mode, the counter counts from 0 to the auto-reload value (content of the
TIMx_ARR register), generates an counter overflow event, then counts down to 0 and
generates a counter underflow event. Then it restarts counting from 0.
In this mode, the direction bit (DIR from TIMx_CR1 register) cannot be written. It is updated
by hardware and gives the current direction of the counter.
The update event can be generated at each counter overflow and at each counter underflow
or by setting the UG bit in the TIMx_EGR register (by software or by using the slave mode
controller) also generates an update event. In this case, the counter restarts counting from
0, as well as the counter of the prescaler.
The UEV update event can be disabled by software by setting the UDIS bit in TIMx_CR1
register. This is to avoid updating the shadow registers while writing new values in the
preload registers. Then no update event occurs until the UDIS bit has been written to 0.
However, the counter continues counting up and down, based on the current auto-reload
value.
TIMER CLOCK = CK_CNT
COUNTER REGISTER
36
20
1F
UPDATE INTERRUPT FLAG (UIF)
COUNTER UNDERFLOW
UPDATE EVENT (UEV)
CK_INT
00
36
CNT_EN
TIMER CLOCK = CK_CNT
COUNTER REGISTER
UPDATE INTERRUPT FLAG (UIF)
COUNTER UNDERFLOW
UPDATE EVENT (UEV)
35 34 33 32 31 30 2F04 03 02 01 0005
AUTO-RELOAD REGISTER
FF 36
Write a new value in TIMx_ARR
CK_INT
