Analog/digital converter (ADC) UM0306

452/519

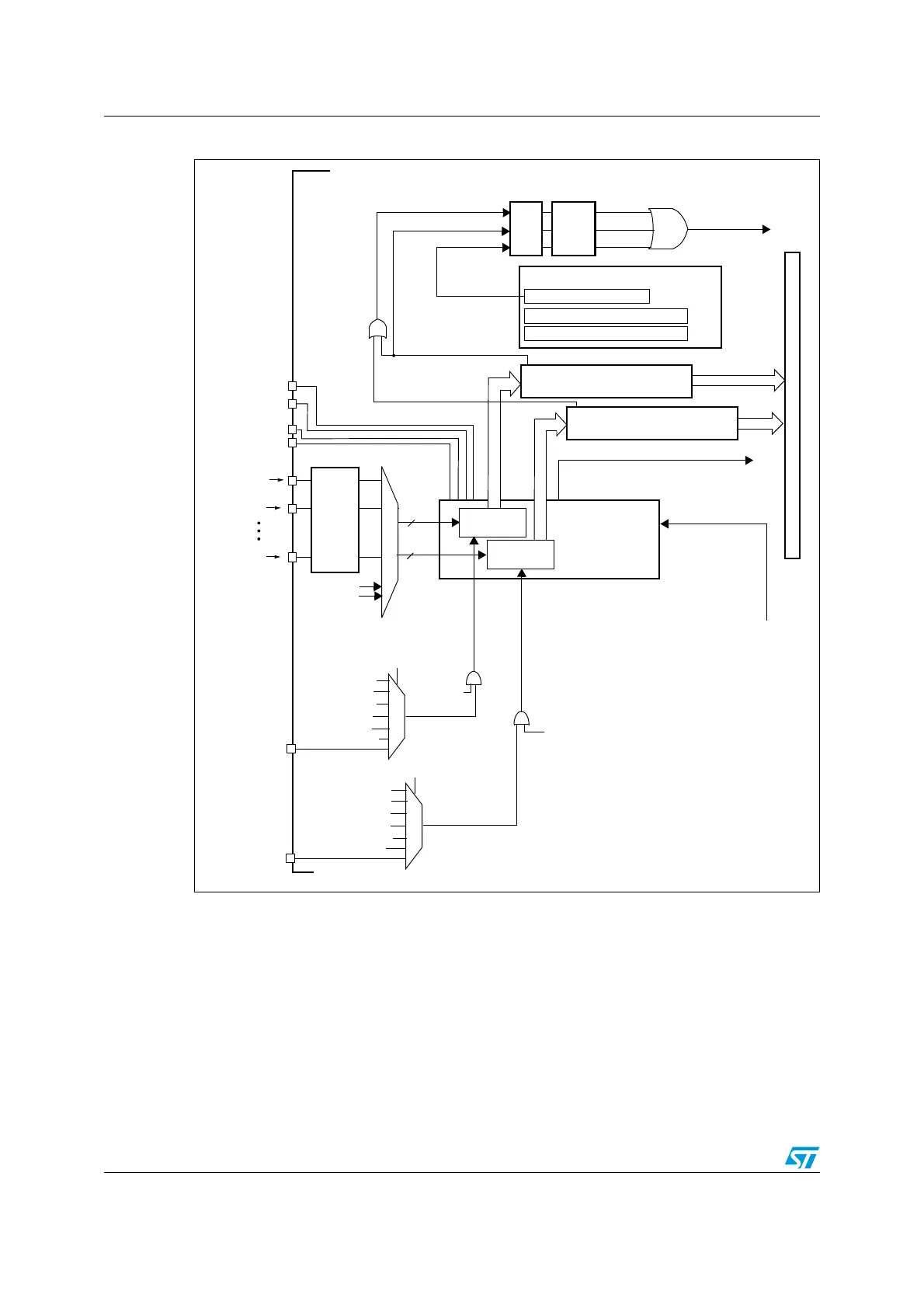

Figure 166. Single ADC block diagram

ADC_IN0

ADC_IN1

ANALOG TO DIGITAL

CONVERTER

ADC_IN15

ANALOG

MUX

ADCCLK

ADC Interrupt to NVIC

GPIO

Ports

ANALOG WATCHDOG

Address/data bus

Low Threshold (12 bits)

Compare Result

High Threshold (12 bits)

Flags

enable bits

EOC

AWD

Analog Watchdog Event

DDA

SSA

REF+

REF-

Interrupt

EXTI_11

TIM1_CH2

TIM1_CH3

TIM2_CH2

TIM3_CH4

From ADC prescaler

(16 bits)

End of Conversion

CHANNELS

INJECTED

CHANNELS

End of Injected Conversion

JEOC

EOCIE

AWDIE

JEOCIE

up to 4

up to 16

REGULAR DATA REGISTER

(4 x 16 bits)

INJECTED DATA REGISTERS

REGULAR

Start trigger

(regular group)

EXTSEL[2:0] bits

EXTRIG

TIM1_CH1

TIM4_TRGO

EXTI_15

TIM1_CH4

TIM2_TRGO

TIM2_CH1

TIM3_TRGO

Start trigger

(injected group)

JEXTSEL[2:0] bits

TIM1_TRGO

TIM4_CH4

JEXTRIG

bit

DMA request

Temp. sensor

REFINT

www.BDTIC.com/ST
