14.3.5 Receive FIFO
Two receive FIFOs are used by hardware to store the incoming messages. Three complete
messages can be stored in each FIFO. The FIFOs are managed completely by hardware.

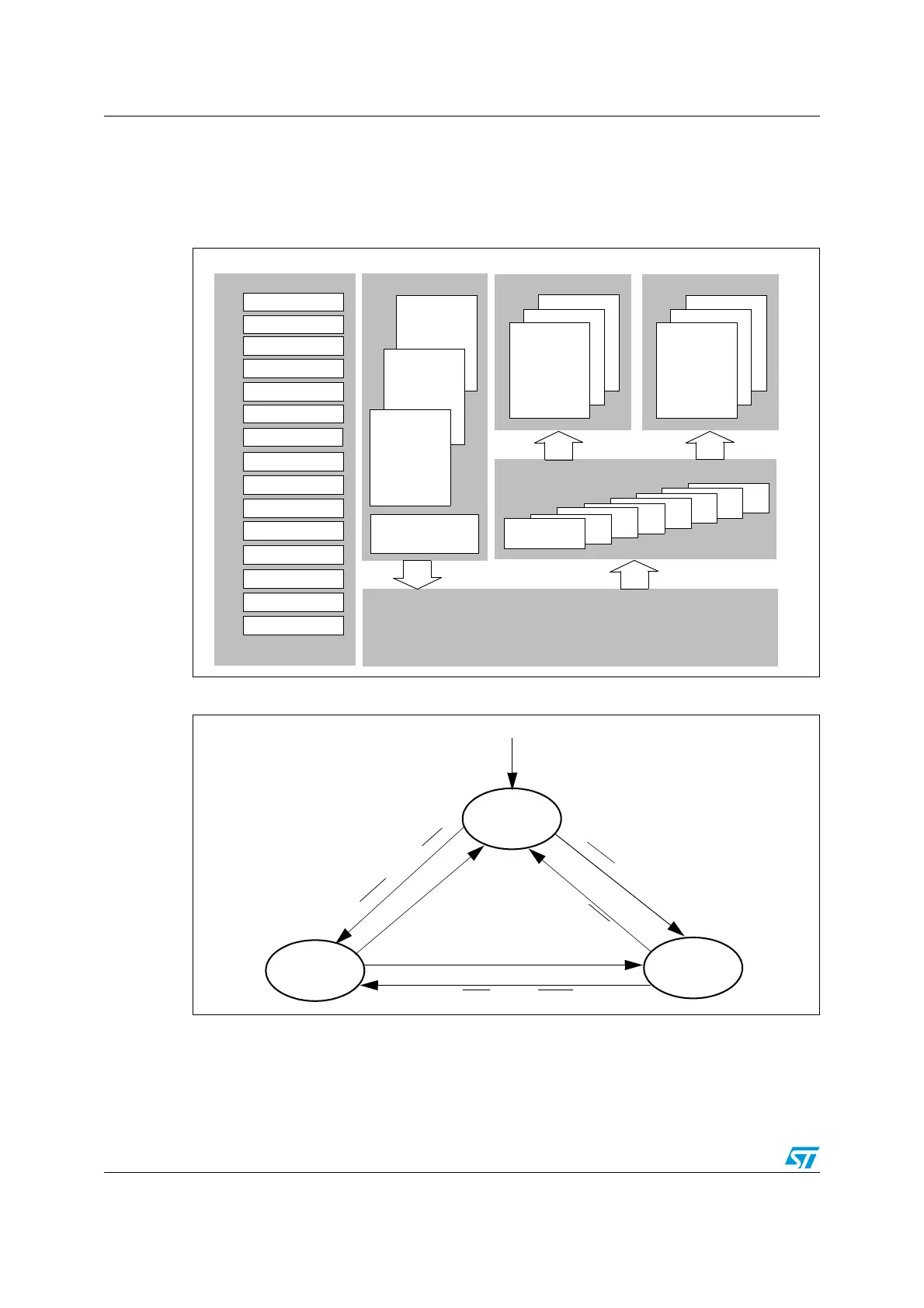

Figure 119. CAN block diagram
Figure 120. bxCAN operating modes
Note: 1 ACK = The wait state during which hardware confirms a request by setting the INAK or
SLAK bits in the CAN_MSR register
2 SYNC = The state during which bxCAN waits until the CAN bus is idle, meaning 11
consecutive recessive bits have been monitored on CANRX
