UM0306 Analog/digital converter (ADC)
457/519
19.4.9 Injected channel management
Triggered injection
To use triggered injection, the JAUTO bit must be cleared and SCAN bit must be set in the
ADC_CR1 register.
1. Start conversion of a group of regular channels either by external trigger or by setting
the ADON bit in the ADC_CR2 register.
2. If an external injected trigger occurs during the regular group channel conversion, the
current conversion is reset and the injected channel sequence is converted in Scan
once mode.
3. Then, the regular group channel conversion is resumed from the last interrupted
regular conversion. If a regular event occurs during an injected conversion, it doesn’t
interrupt it but the regular sequence is executed at the end of the injected sequence.
Figure 169 shows the timing diagram.
Auto-injection
If the JAUTO bit is set, then the injected group channels are automatically converted after
the regular group channels. This can be used to convert a sequence of up to 20 conversions
programmed in the ADC_SQRx and ADC_JSQR registers.
In this mode, external trigger on injected channels must be disabled.
If the CONT bit is also set in addition to the JAUTO bit, regular channels followed by injected
channels are continuously converted.
Note: It is not possible to use both auto-injected and discontinuous modes simultaneously.

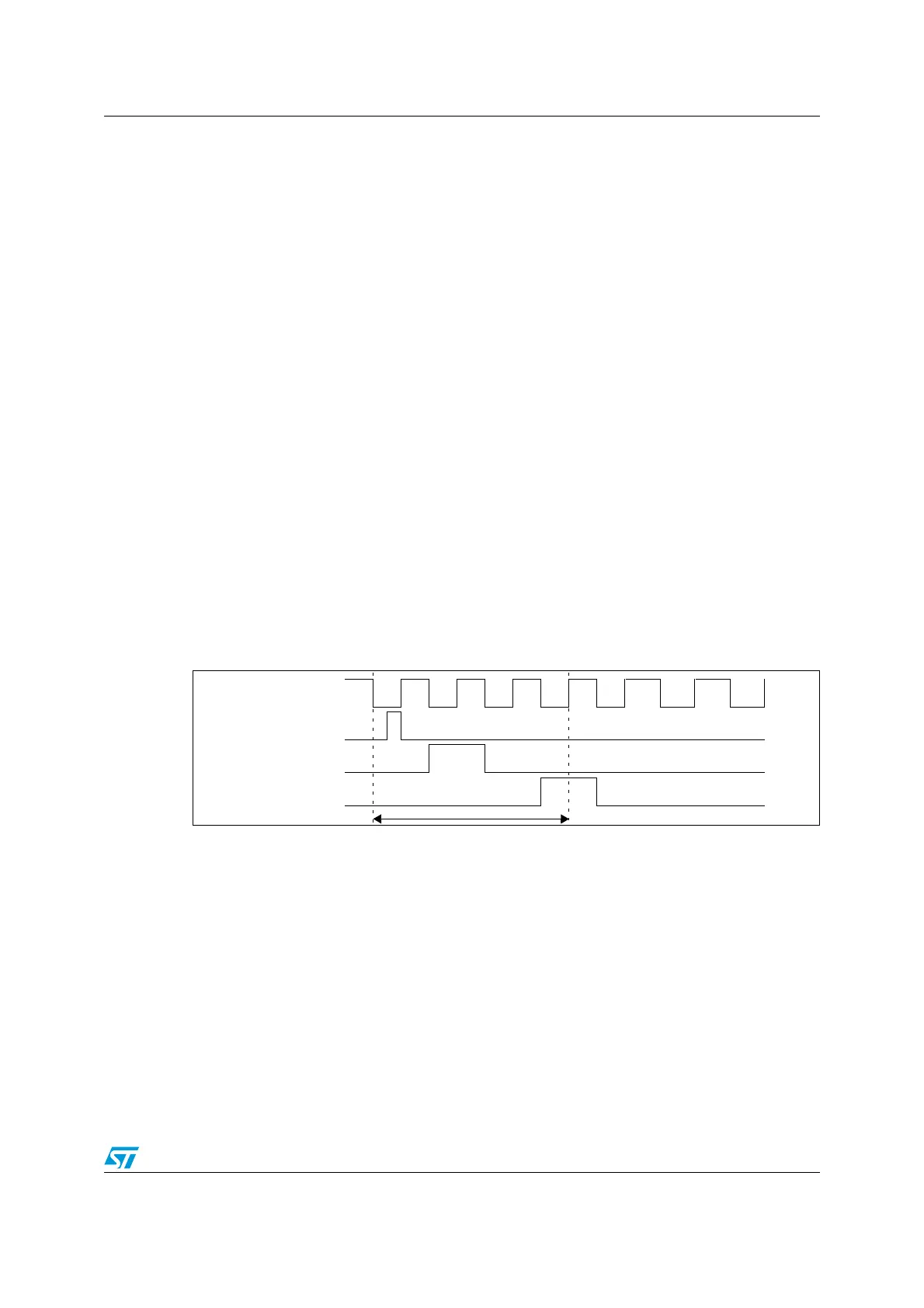

Figure 169. Injected Conversion Latency
19.4.10 Discontinuous mode
Regular group
This mode is enabled by setting the DISCEN bit in the ADC_CR1 register. It can be used to
convert a short sequence of n conversions (n <=8) which is a part of the sequence of
conversions selected in the ADC_SQRx registers. The value of n is specified by writing to
the DISCNUM[2:0] bits in the ADC_CR1 register.
When an external trigger occurs, it starts the next n conversions selected in the ADC_SQRx
registers until all the conversions in the sequence are done. The total sequence length is
defined by the L[3:0] bits in the ADC_SQR1 register.
ADC clock
Inj. event
Reset ADC
SOC
max latency
