4 Adjusting knitting machine
Basic settings

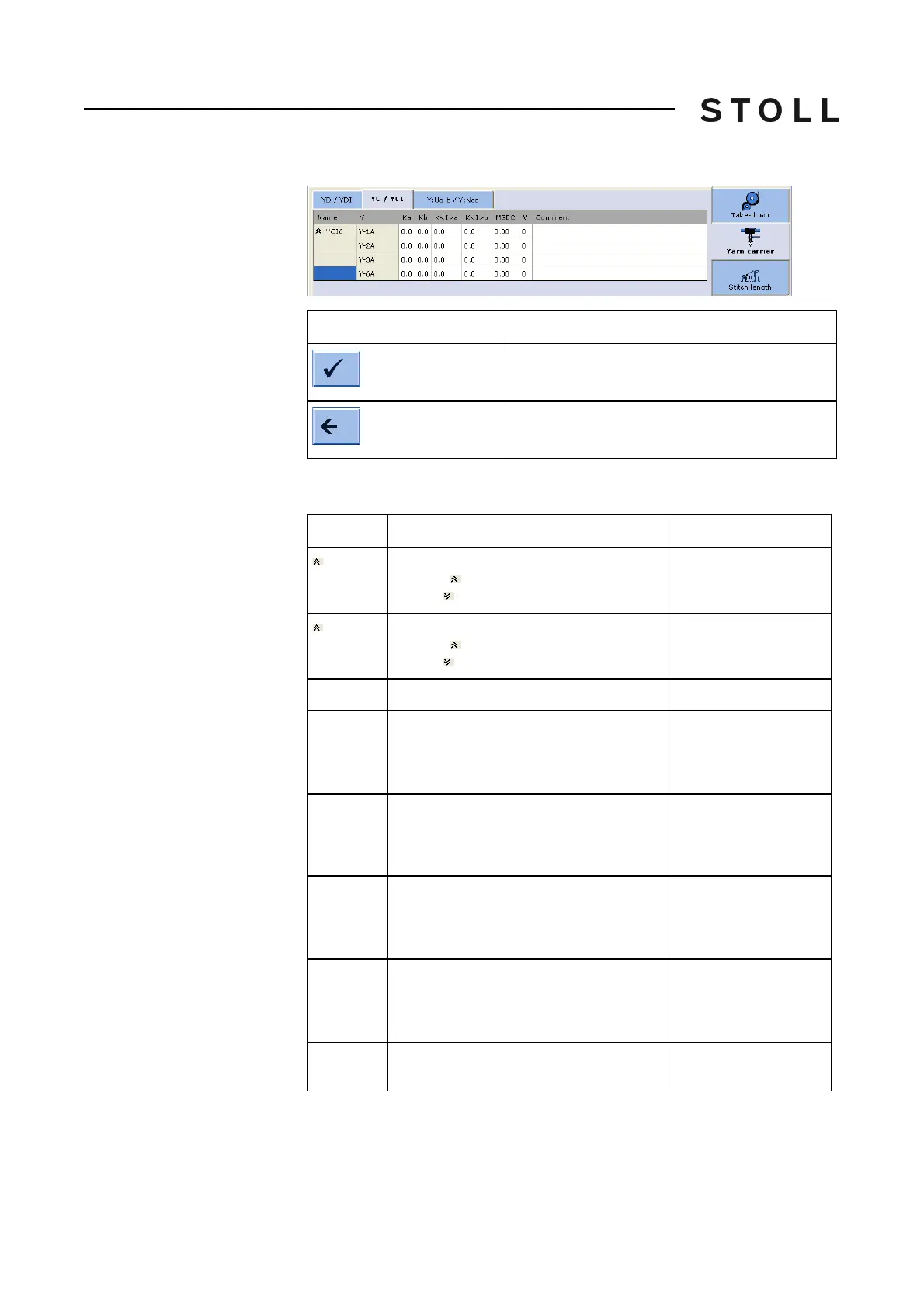

Adjusting yarn carriers (Setup2)
Adjusting yarn carriers
(Setup2)
Keys for adjusting the yarn carriers
Keys for adjusting the yarn carriers
Setup2-YC/YCI
Key Function
Confirm entries
Return to the "Yarn carrier" window
Explanation Value range
YC
Direct yarn carrier correction
Collapse (reduced display)
Expand
(expanded display)
YCI
Yarn carrier correction index YCI1 to YCI20
Collapse (reduced display)
Expand (expanded display)
Y Corrections of yarn carrier 1A to 8D
Ka Yarn carrier correction value (left) for not
swiveled yarn carrier if the yarn carrier is
positioned within the fabric.
Minimum value: -120
Maximum value: 120
Step width:
0.5=1/32 inch=0.8 mm
Kb Yarn carrier correction value (right) for not
swiveled yarn carrier if the yarn carrier is
positioned within the fabric.
Minimum value: -120
Maximum value: 120
Step width:
0.5=1/32 inch=0.8 mm
K<I>a Intarsia yarn carrier correction value (left) for
swiveled intarsia yarn carrier
Minimum value: -120
Maximum value: 120
Step width:
0.5=1/32 inch=0.8 mm
K<I>b Intarsia yarn carrier correction value (right)
for intarsia swiveled yarn carrier
Minimum value: -120
Maximum value: 120
Step width:
0.5=1/32 inch=0.8 mm
MSEC Carriage speed if this yarn carrier is used
(technical fabrics).
