218
4 Adjusting knitting machine
Advanced adjustments
20. Stop the machine when the left carriage is outside the needle bed.
21. In the window "Reference runs" tap on the key "S>". Pull up the engaging
rod for short. The carriages may run only a few centimeters towards right.
The reference run is completed.
22. Loa
d the knitting program.

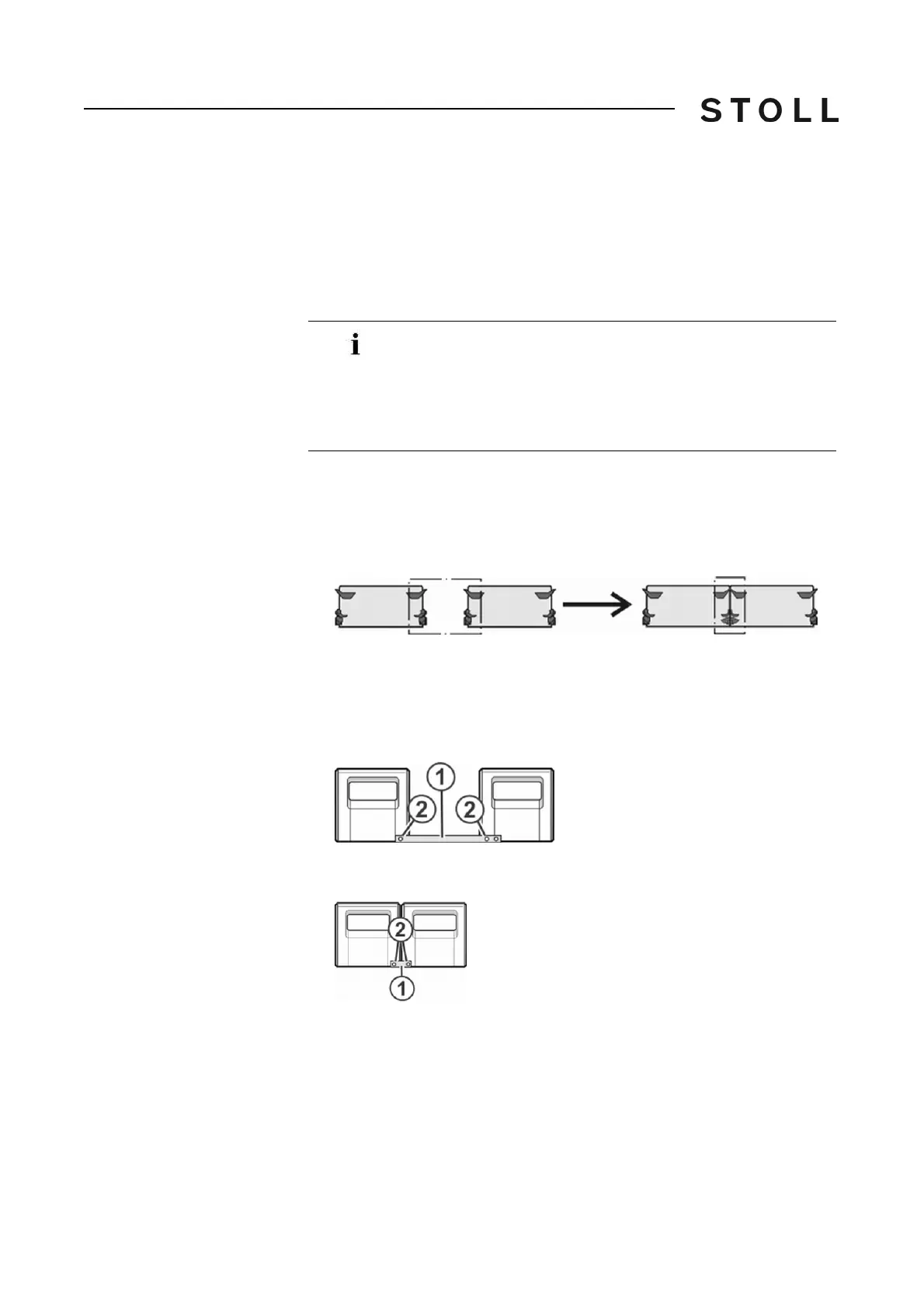

Couple Carriage Assembly
Narrow
1. Program an empty row and fix the knitting
specification.
2. Start the machine with the engaging rod and stop it again when the
ca
rriage is located shortly after the left reversing position.
3. Remove the carriage part in order to replace the cams.
Replace c ams for n arrow co upling
Replace cams for narrow coupling
4. Place carriage part on contact surface and assembly with carriage
assembly.
5. Open the locking of the rear panel segments with the square spanner
from
the enclosed accessories and take off the segments.
Wide coupling of carriage assembly
Wide coupling of carriage assembly
6. Remove the screws (2). Take off the coupling rod (1).
Narrow co upling of carriage assembly
Narrow coupling of carriage assembly
7. For narrow coupling (tandem machine), push the left carriage assembly to
the right and hook in the coupling rod (1)
8. Insert the screws (2) and tighten.
If the carriage assembly operate coupled wide, the needles
between both fabrics and at the right edge next to the right
fabric must be free of fabric.
All yarn carriers must be positioned. C
alling up yarn carrier
assign
ment.
