235
Adjusting knitting machine 4
Advanced adjustments

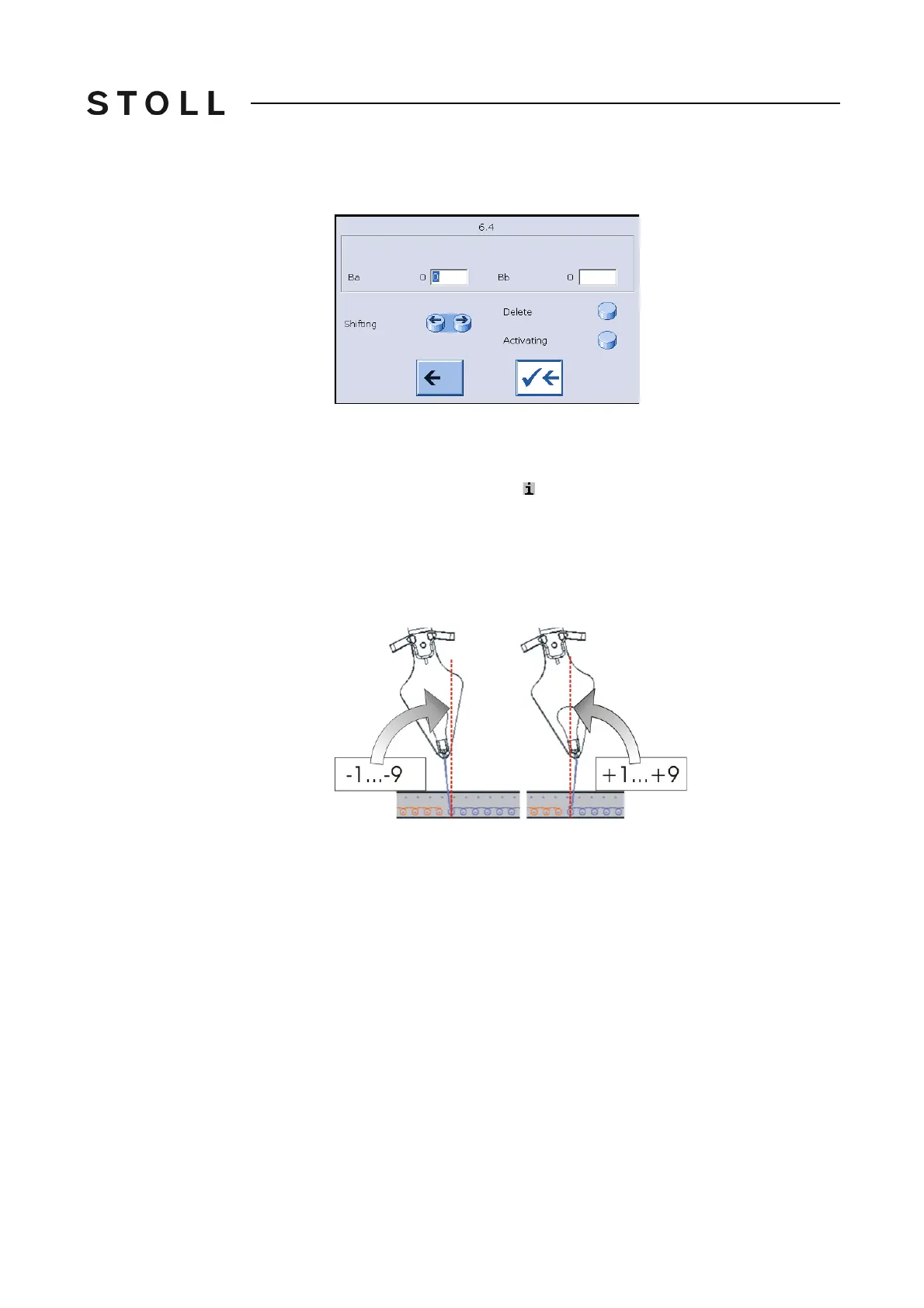

The setting window appears.
10. Enter the braking value (Ba, Bb).
-1…-9: if the yarn carrier is stopped to late (after the needle)
+1…+9: if the yarn carrier is stopped to early (befo
re the needle)
11. Save changes and end setting proce
ss for this yarn carrier.
12. If the stopping position of further yarn carriers is wrong repeat the
steps 9
to 11.
13. Knit some rows.
14. Check the stopping positions.
If necessary, repeat
the steps 9 to 11.
15. Repeat several times the checking of both swivel directions of the
intarsia
yarn carrier.
16. If there are further
yarn carriers to be checked, then proceed to the next
partial program. (Additional function keys ->"ctrl W" key).
17. Repeat the steps 9 to 15.
Ba: braking value left
Bb:
braking value right
Value range: -9...0...9.
Step width: 1=1/32 inch=0.8 mm
Default: 0
: In case of large deviations from the default
value appears a note promptin
g you to check the
yarn carrier.
