Setup Data 5
Setup2 Editor
Y:Ua-b / Y:Ncc (tab)
Y:Ua-b / Y:Ncc (tab)  Adjusting the engaging width when plating with normal yarn carriers.
 Control the clamping depth of the cla
mping and cutting needles.
Engaging value for the left and right carriage direction
Further information:
 Table Tools [316]
 File tools [317]
 Helpers for Input [311]
 Overview of the Setup2 Editor
of the CMS [
309]
 Setup Data [303]
 Comparing Setup1 to Setup2 [305]
Explanation Value range
Y Corrections of yarn carrier 1A to 8D

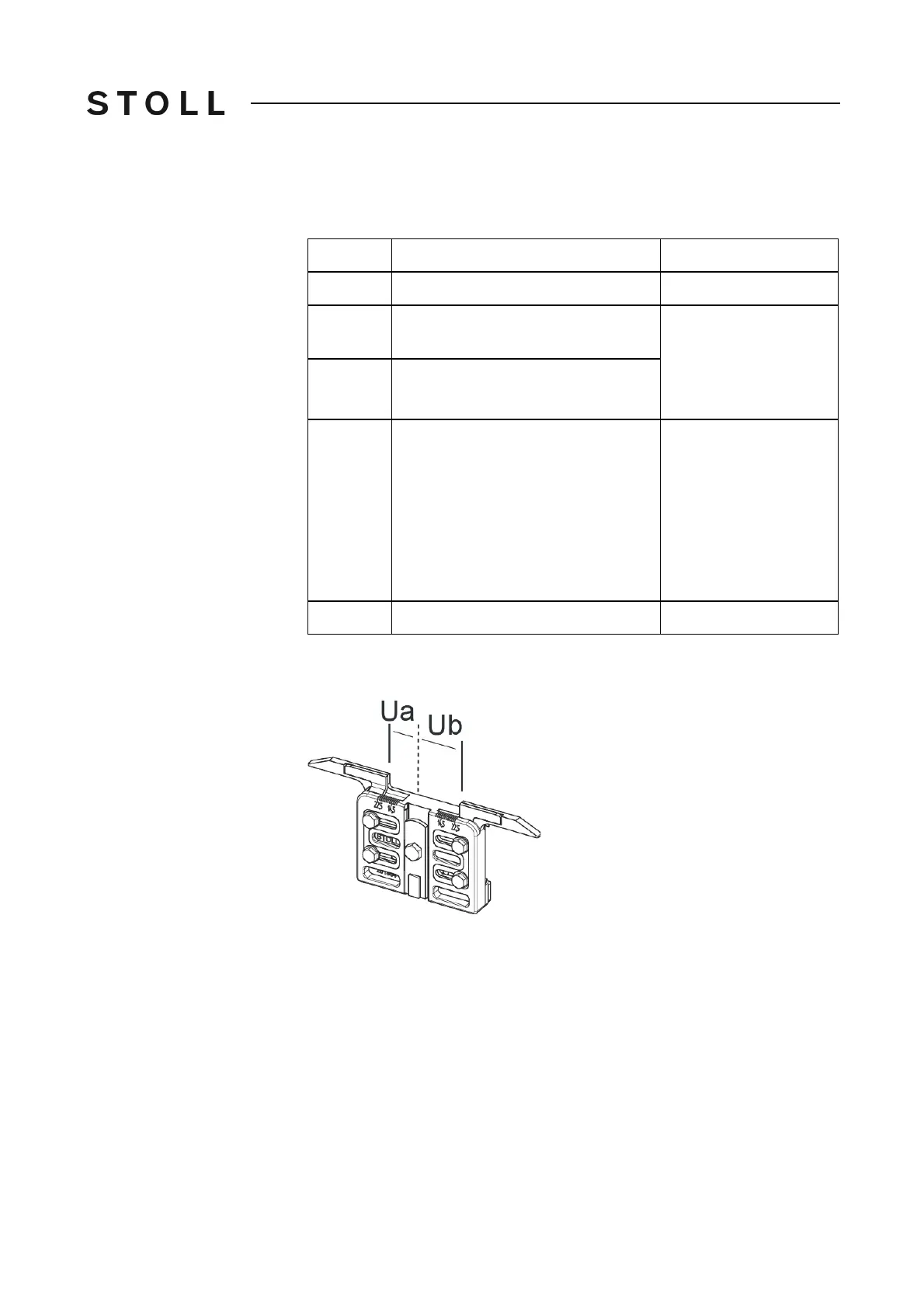

Ua Adjust the engaging width (left) when
plating with normal yarn carriers.
Minimum value: 11.5
mm
Maximum value: 23 mm
(CMS-C: 35 mm)
Step width: 0.5 mm
Ub Adjust the engaging width (right) when
plating with normal yarn carriers.
NCC Only for machines with clamping and
cutting bed:
Control of the clamping depth of the
respective clamping
and cutting
needle.
Standard setting: n=0
e.g.: Sink the clamping and cutting
needle by 5 steps deeper: NCC=5
Minimum value: -10
Maximum value: 10
Step width: 1
Comment Comment ASCII Characters
