Wartsila RT-flex50-D User Manual

Maintenance
6606−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
5/ 7

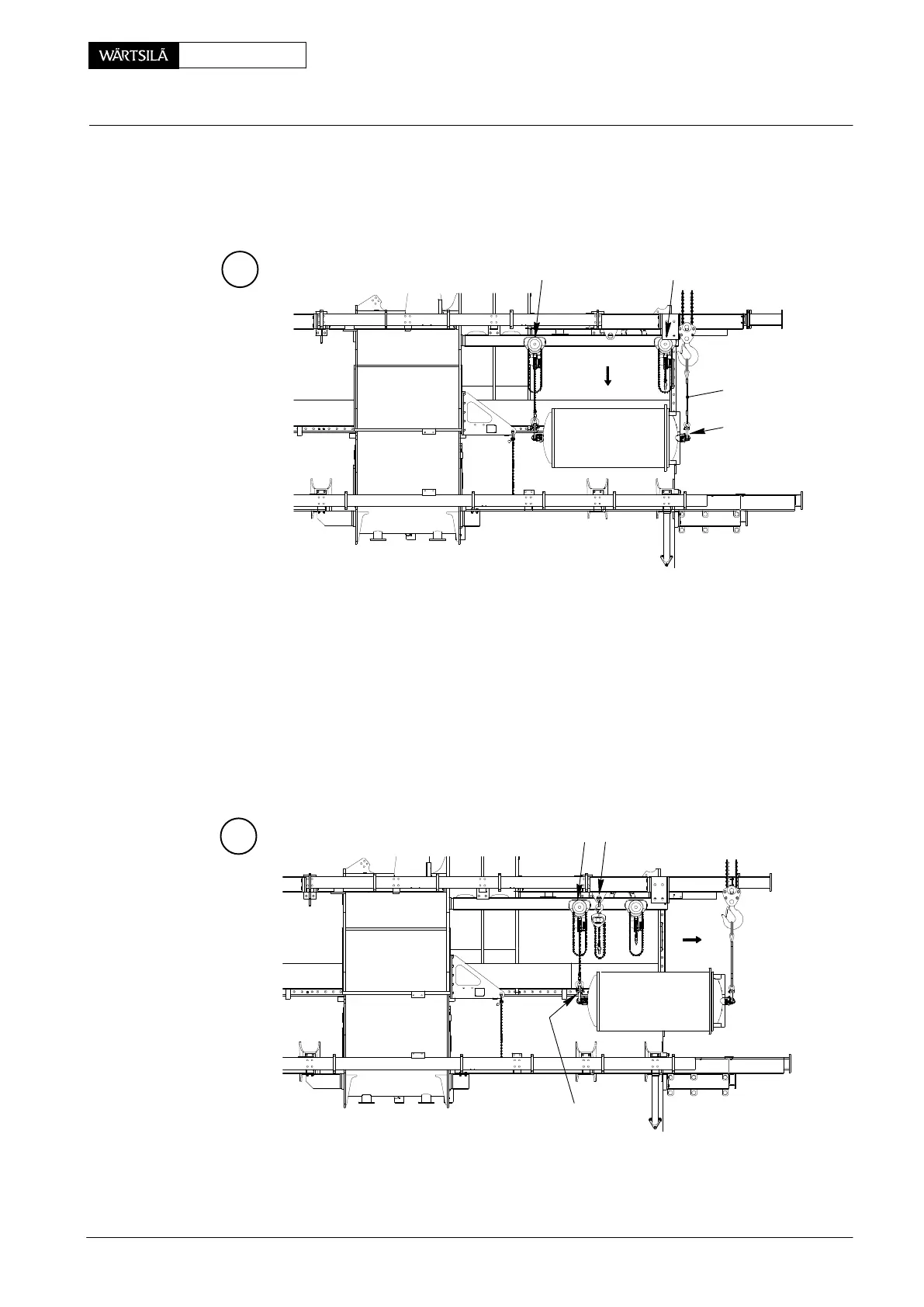

⇒ Somewhat lower the cooler.
⇒ Hook the engine crane into wire rope sling 94666 and lift the cooler slightly.
⇒ Detach trolley with spur-geared chain block H
2
from RUD-eye bolt ’RC’.
E
94666
H
1
H
2
RC
WCH00115
⇒ Continue pulling out the cooler until trolley with spur-geared chain block H
1
lies next to the platform lug.
⇒ Hook manual ratchet H
4
(WLL 1500 kg) into the platform lug and connect it to
lifting plate 94663−IL.
F
H
1
H
4
WCH00115
94663−IL
50−D / 2010
Removal and Fitting of Scavenge Air Cooler (with Integrated Lifting IL
)
