9. Installing user software in a Windows 95/98 environment

Xerox Phaser 790

9–25

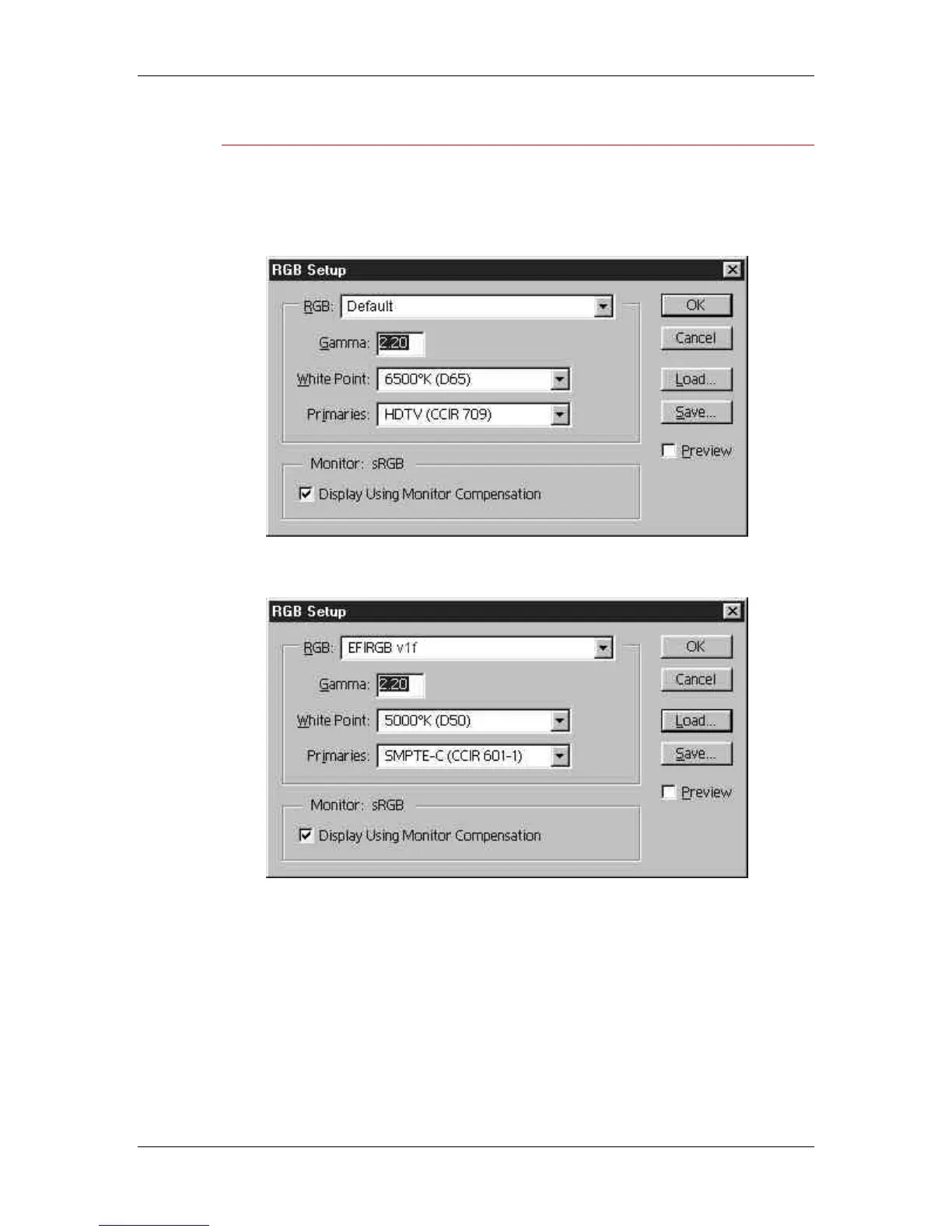

Loading the working space profile using Photoshop 5.0

1. Launch Photoshop.

2. From the File menu, select Color Settings and RGB Setup.

3. In the RGB Setup dialog box, select the Load button.

4. Browse to the Windows\System\Color folder. Select the Efirgb

v1f file and the Load button.

5. Select OK.

For more information about ICM profiles, refer to the application

documentation.
