Replacing the Dry Ink Container 24. Maintenance

Xerox Phaser 790 24-13

Dry Ink Waste Container

Perform this procedure when the message Waste Container Full is

displayed on the Printer Control Panel.

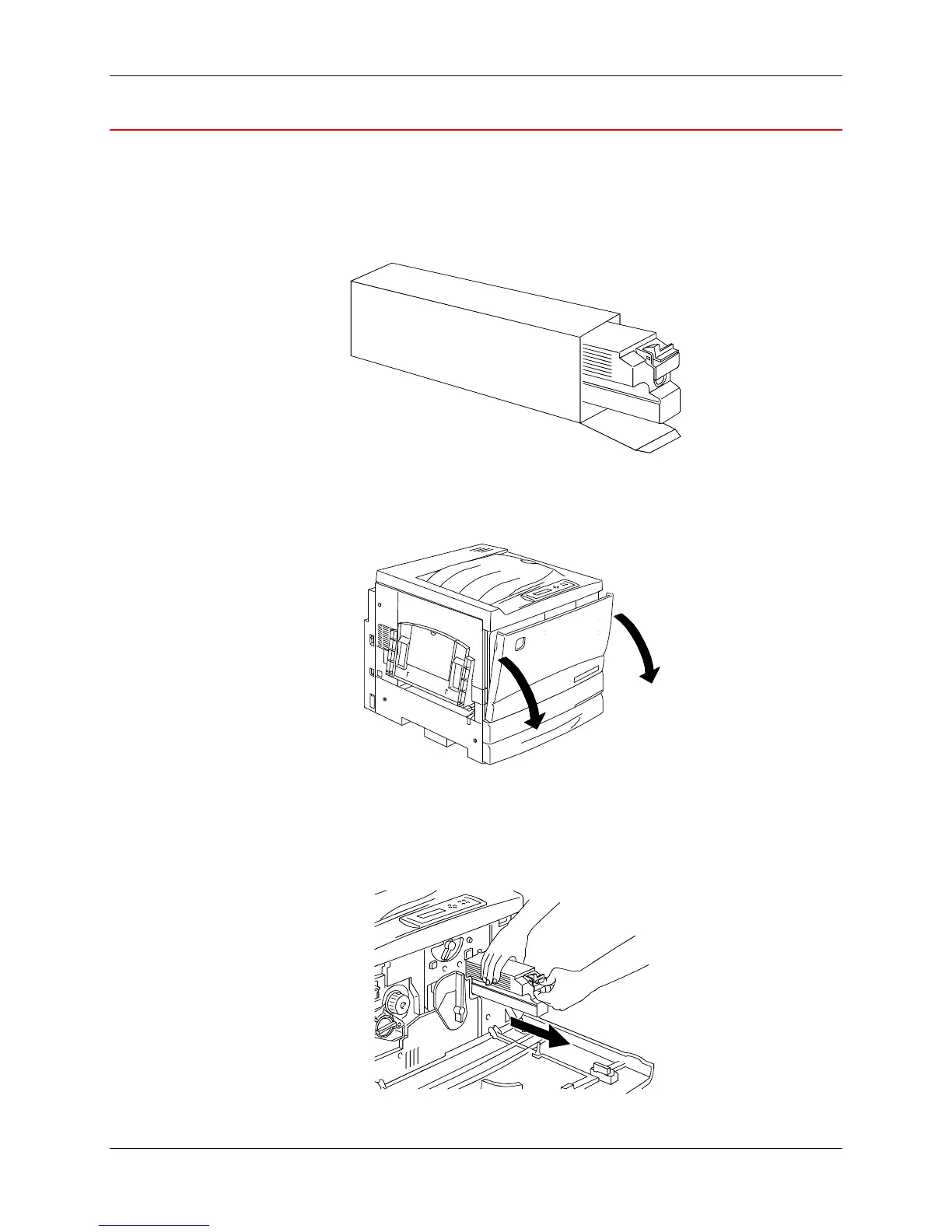

1. Remove a new Dry Ink Waste Container from the box, and save the box.

0301122A-W O L

2. Open the Printer Front Cover.

301034B-WOL

3. Grasp the Waste Container handle, and pinch and hold the lever as

shown below.

4. Keeping the container level, pull it out of the Printer.

0301123A-W O L
