11. Installing user software in a Windows NT 4.0 environment

Xerox Phaser 790

11–27

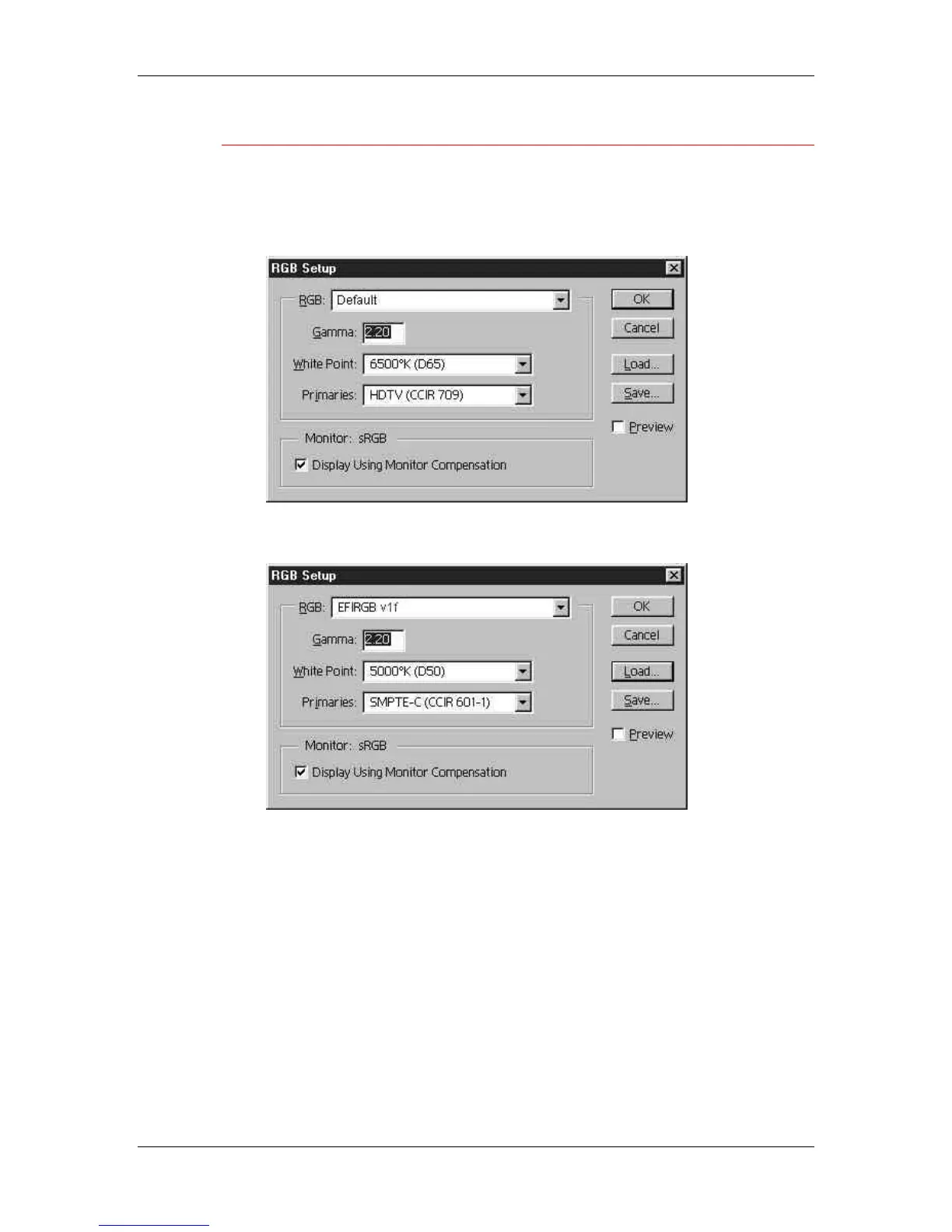

Loading the working space profile using Photoshop 5.0

1. Launch Photoshop.

2. From the File menu, select Color Settings and RGB Setup.

3. In the RGB Setup dialog box, select Load.

4. Browse to the Windows NT\System32\Color folder. Select the

Efirgb v1f file and Open.

5. Select OK.

For more information about ICM profiles, refer to the application

documentation.
