Clearing a Duplex Tray jam 23. Problem Solving

Xerox Phaser 790 23-5

Clearing a Duplex Tray jam

Perform this procedure only when the message Clear Duplex Tray jam is

displayed on the Control Panel.

CAUTION

DO NOT open the Duplex Tray unless directed to do so from the Printer

Control Panel. Opening the Duplex Tray at any other time could create a

paper jam.

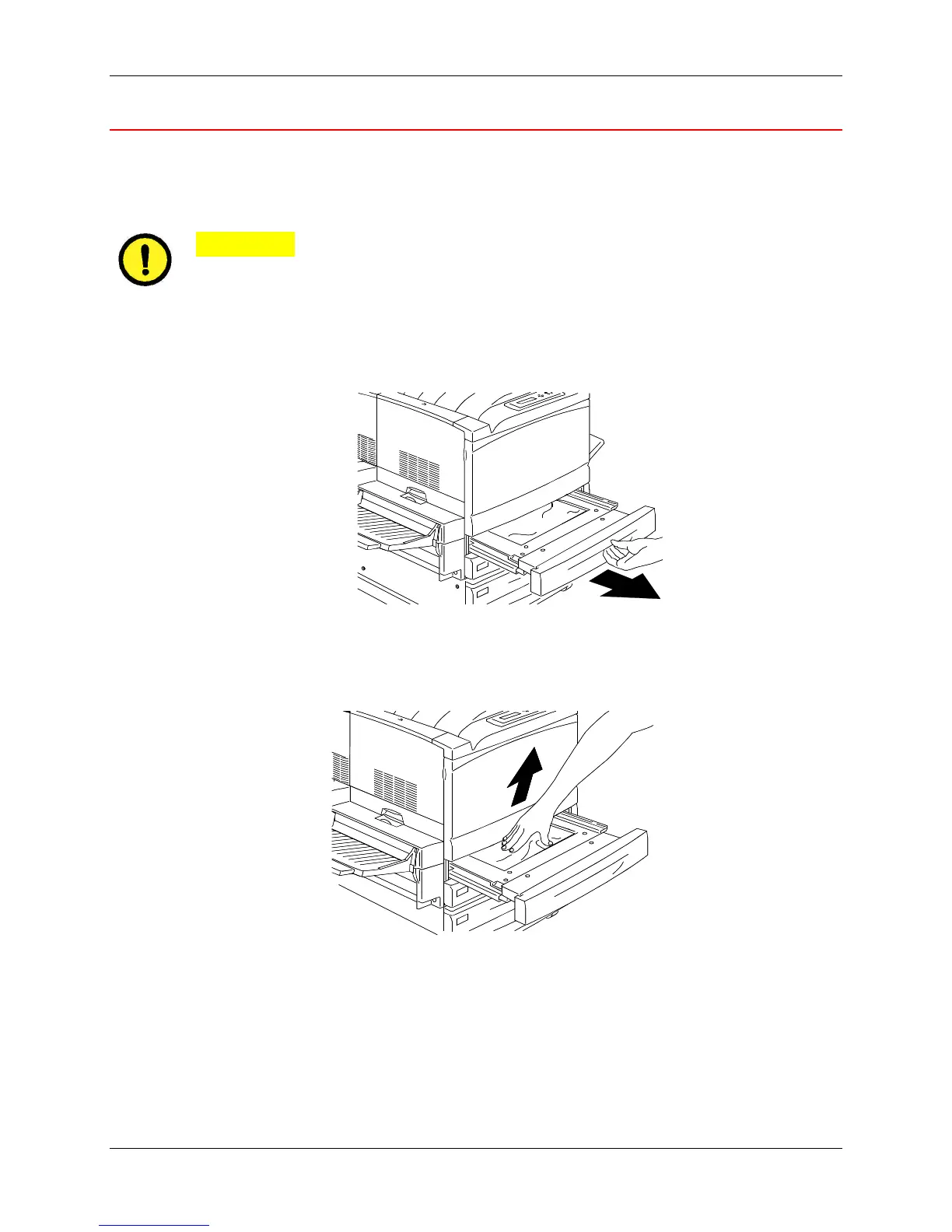

1. Slowly open the Duplex Tray all the way.

1266A

W O

2. Remove the jammed paper and any paper that is creased or torn.

Ensure that there are no pieces of torn paper remaining in the tray.

t301267a
