13. Installing the Fiery software for Windows and Macintosh

Xerox Phaser 790

13–4

Configuring the connection to Fiery servers in a local subnet

1. Double-click the Fiery Link icon.

A warning that no Fierys are configured is displayed.

2. Select OK.

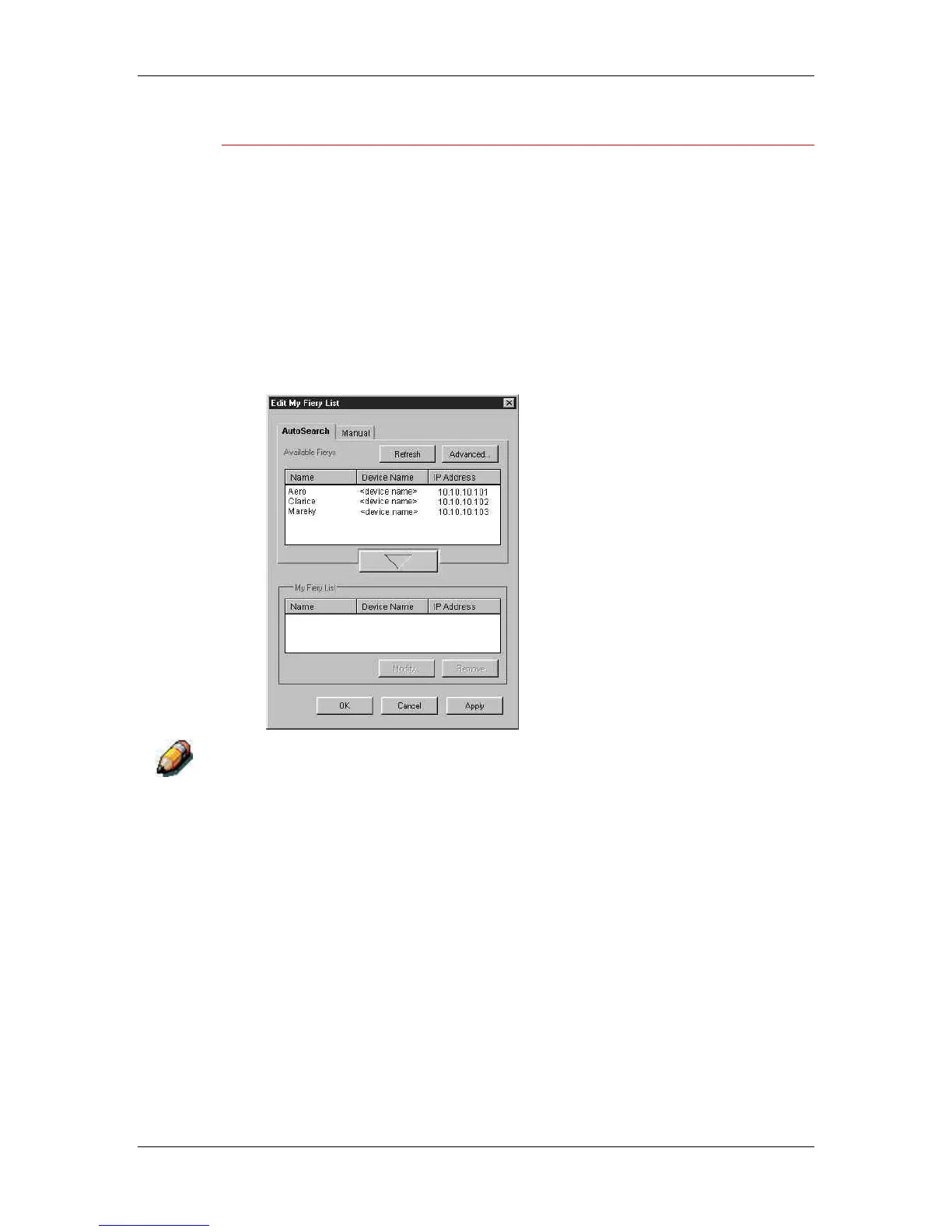

The Edit My Printer List dialogue box opens and all the servers

found in the local subnet are displayed in the Available Fierys

area of the dialog box. If the printer is located on a different

subnet, an Error dialog box is displayed. Select OK to dismiss the

dialogue box and perform the Advanced IP search or Advanced

Subnet search.

Only servers that support Fiery Link are displayed in the Available Fierys

area.
