Clearing Area 4 jams 23. Problem Solving

Xerox Phaser 790 23-15

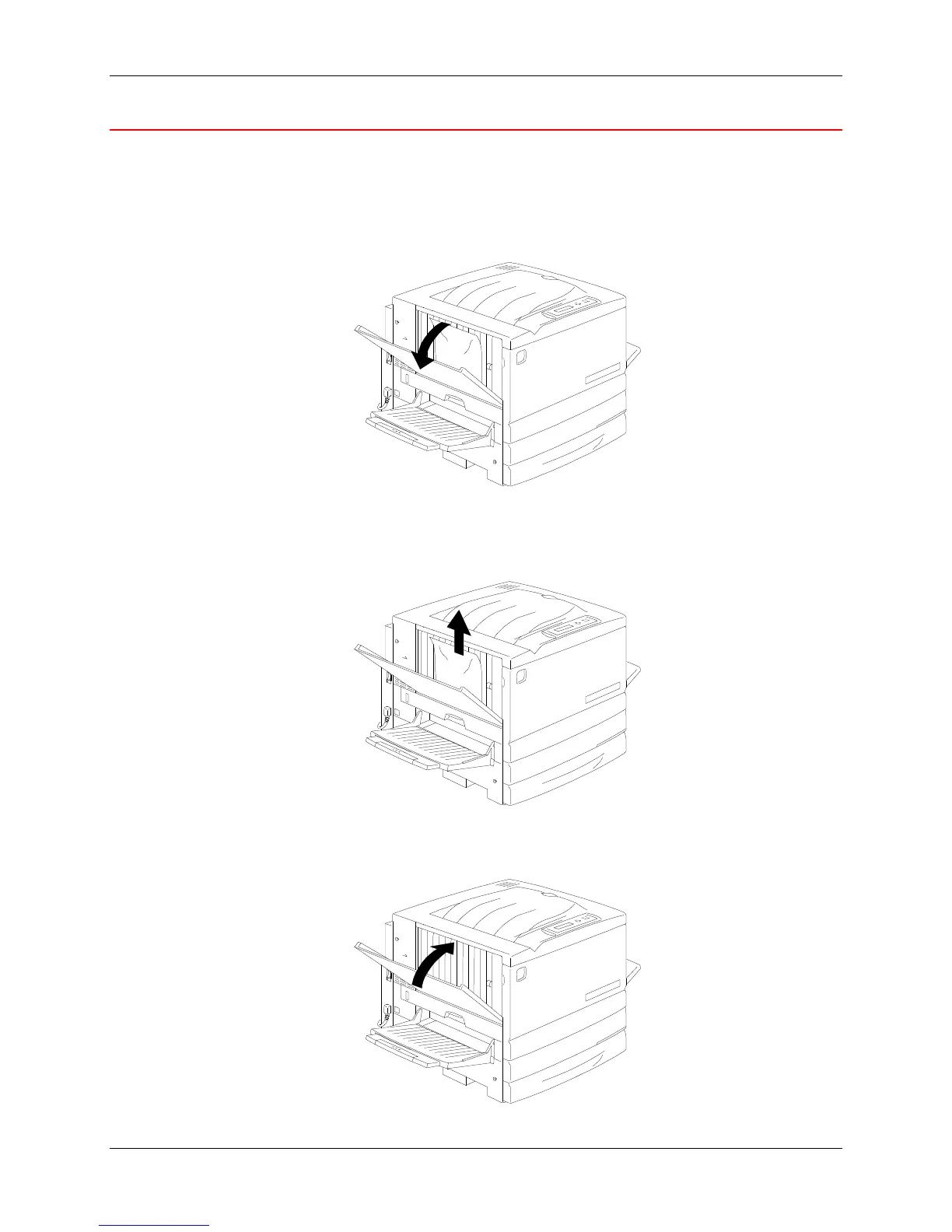

Clearing Area 4 jams

Perform this procedure when the message Clear Jam in Area 4 is displayed

on the Control Panel.

1. Open the Area 4 cover.

301201

2. Remove the jammed paper. If the paper is torn ensure that there are no

pieces of torn paper remaining in the Printer.

301103

3. Close the Top Left-hand Cover.

301104
