Setting up the Printer Cabinet 1. Setting up the Phaser 790
Xerox Phaser 790 1-5
Setting up the Printer Cabinet (optional)
If you ordered the Printer Cabinet, perform the following steps. If you did not
order the Printer Cabinet, go to the Installing the 2 Tray Module procedure.
You will need a phillips screwdriver in order to perform this procedure.
1. Open the carton containing the Printer Cabinet and ensure that you have
received the following items:
• Bottom panel with four casters
• Top panel containing many holes
• Rear (small) panel
• Left side panel with hinge attachments on inside front edge
• Right side Panel without hinge attachments
• Two hinges
• Four wood screws
• 12 large screws
• Two locating pins
• One u-shaped locking bracket

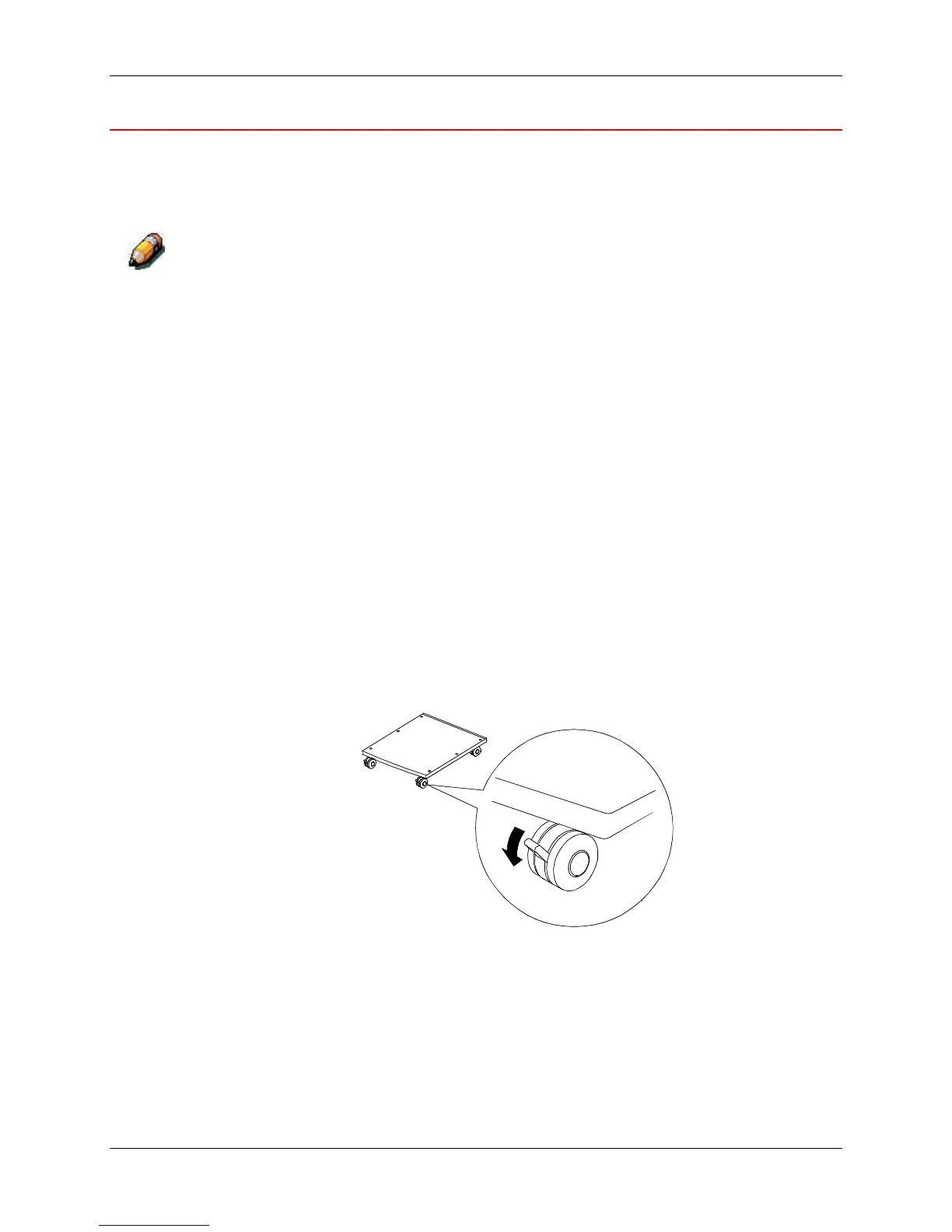

2. Locate the bottom panel and lock the four casters.
030
1
2
4
2
A
-
W O
L
