1. Setting up the Phaser 790 Setting up the Printer Cabinet

1-6 Xerox Phaser 790

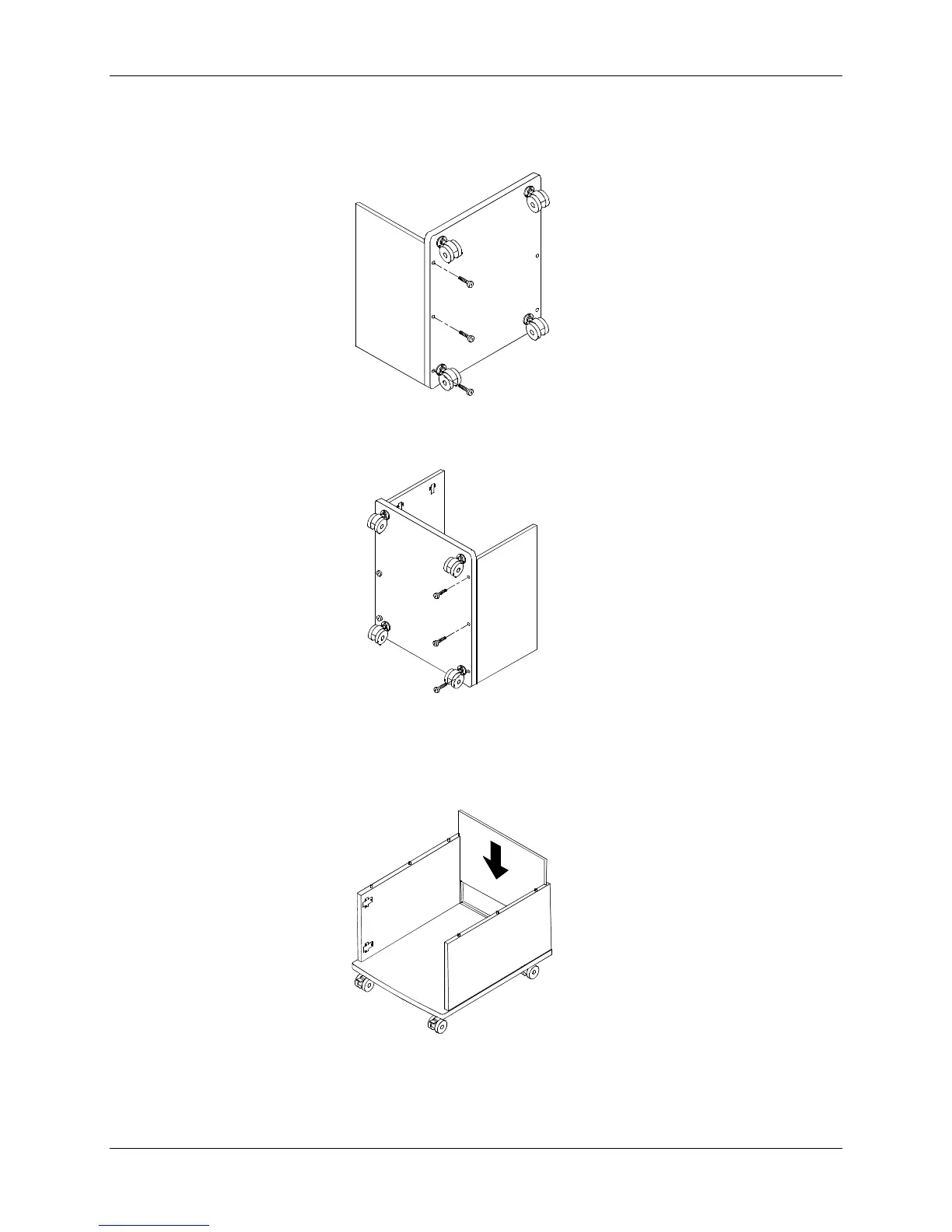

3. Using three large screws, install the Left side panel of the cabinet as

shown below.

301235a

4. Using three large screws, install the Right side panel as shown below.

301236a

5. Place the cabinet on the casters and slide the Rear (small) panel into

position, as shown. Ensure that the Rear panel is seated in the slot in

the Bottom panel.

310237a
