Setting up the Printer Cabinet 1. Setting up the Phaser 790

Xerox Phaser 790 1-7

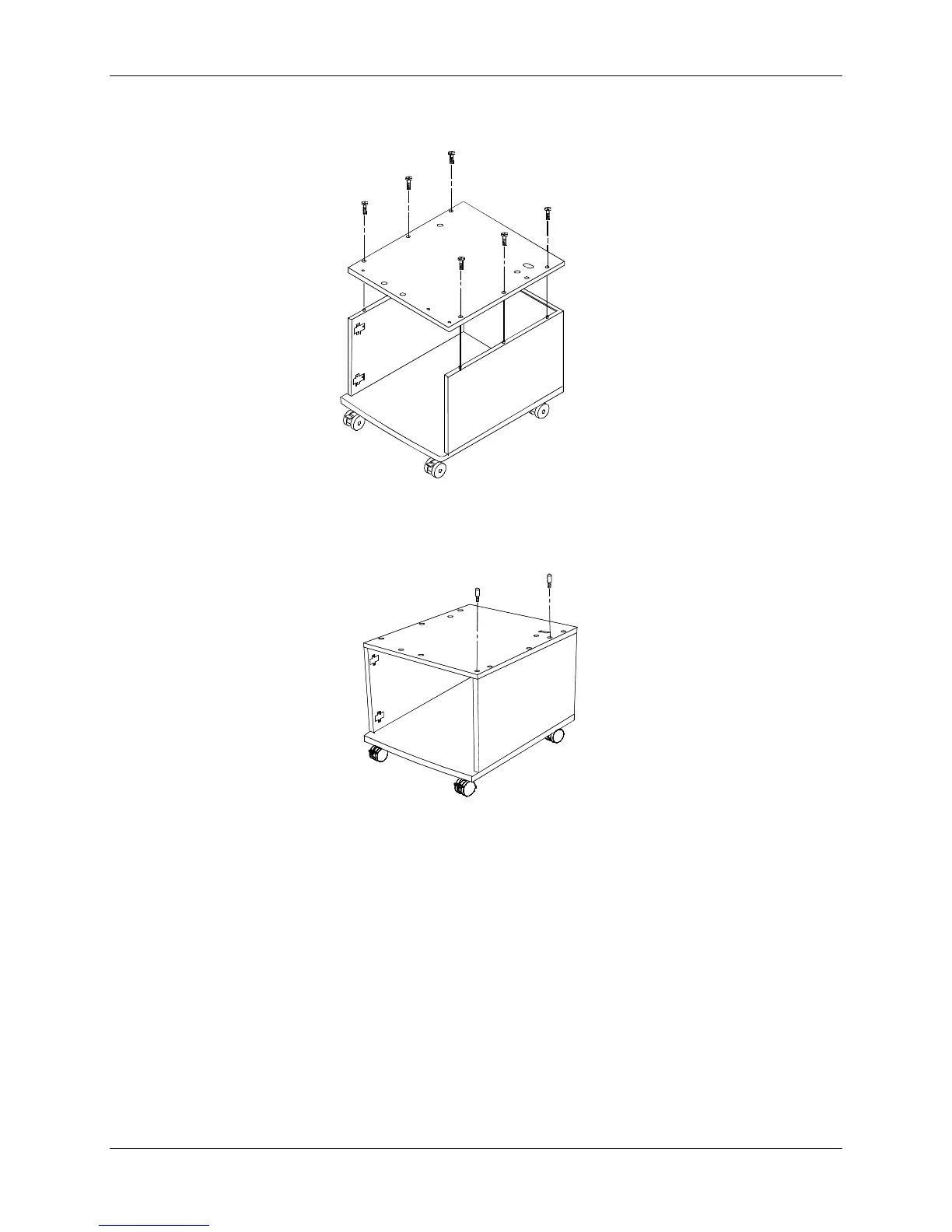

6. Use six remaining large screws to install the Top panel, as shown below.

301238a

7. Install the two Locating Pins into the two screw-holes located in the Top

panel.
