13. Installing the Fiery software for Windows and Macintosh

Xerox Phaser 790

13–6

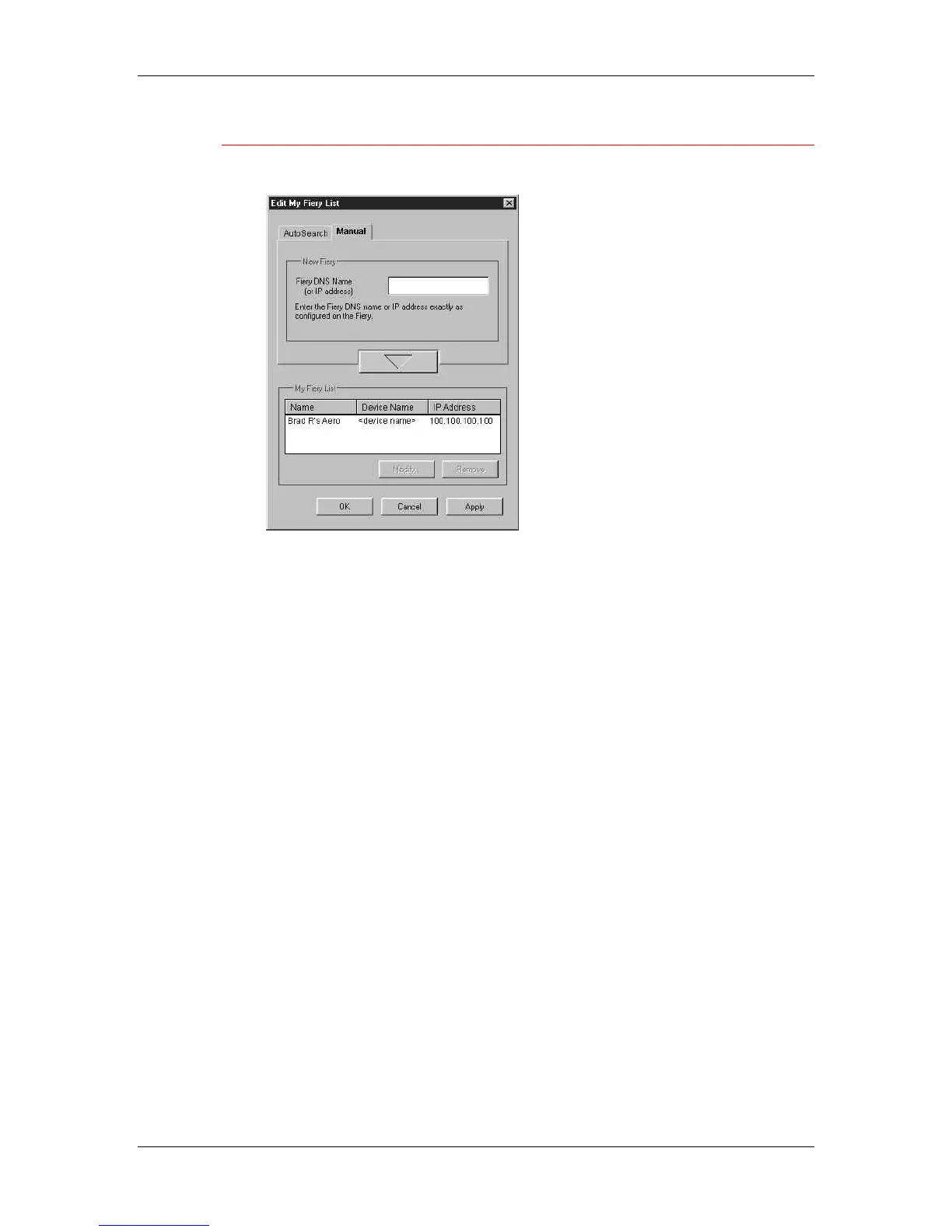

Manually configuring the connection to Fiery printers

1. Select the Manual tab.

2. Enter the DNS name or IP address of the printer and select the

arrow button.

After the arrow button is selected, Fiery Link checks for the

specified server. If the server is found, it is displayed in the My

Fiery List. If it is not found, an error message is displayed.

3. To give the server a nickname, select it in the My Fiery List and

select Modify.
