Unpacking the Printer 1. Setting up the Phaser 790

Xerox Phaser 790 1-15

Installing the Phaser 790 on the Printer Cabinet only

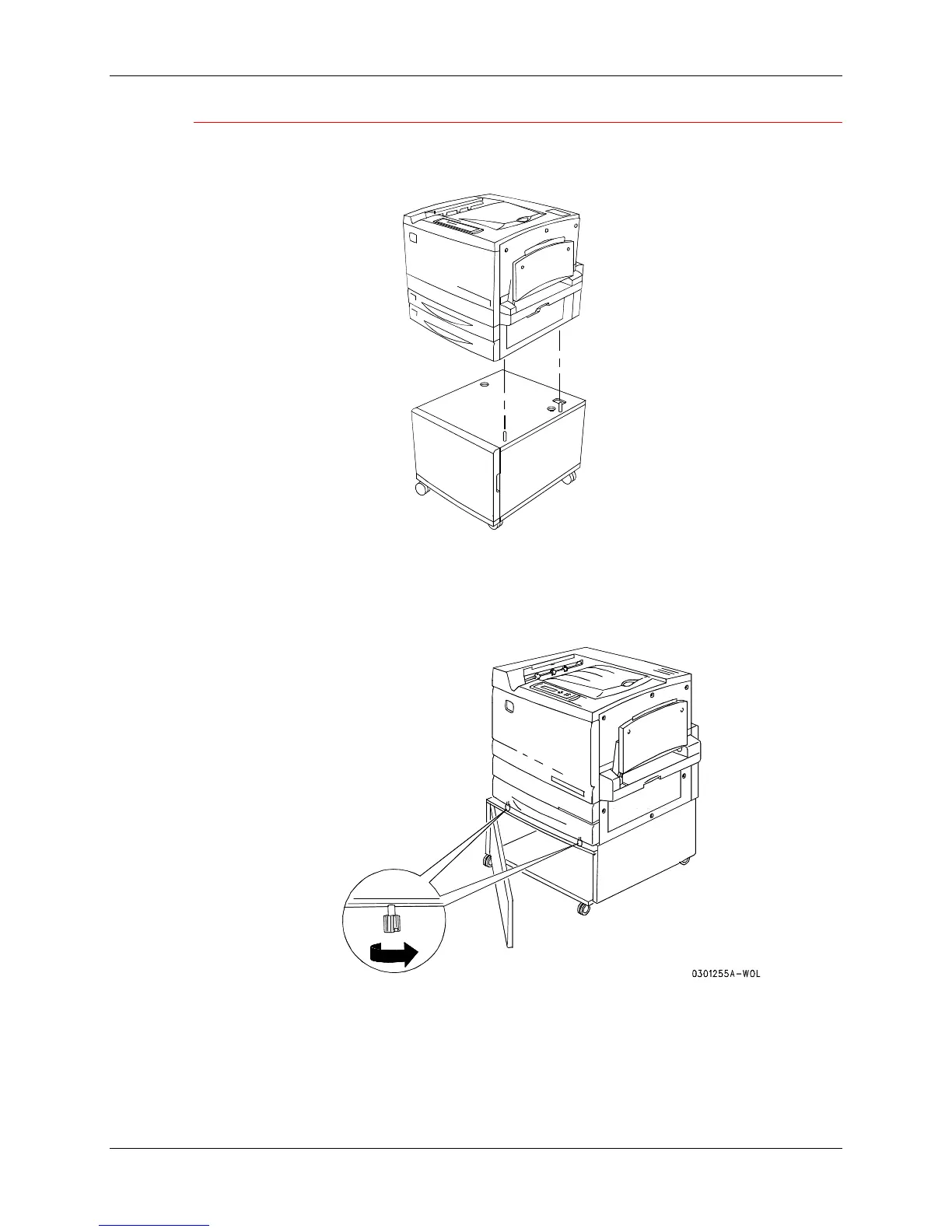

8. Align the two pins in the cabinet with the corresponding holes in the

Printer.

301251a

a. Open the cabinet door and install the two thumbscrews through the

Top panel and into the bottom of the Printer. DO NOT TIGHTEN at

this time.
