1. Setting up the Phaser 790 Unpacking the Printer

1-16 Xerox Phaser 790

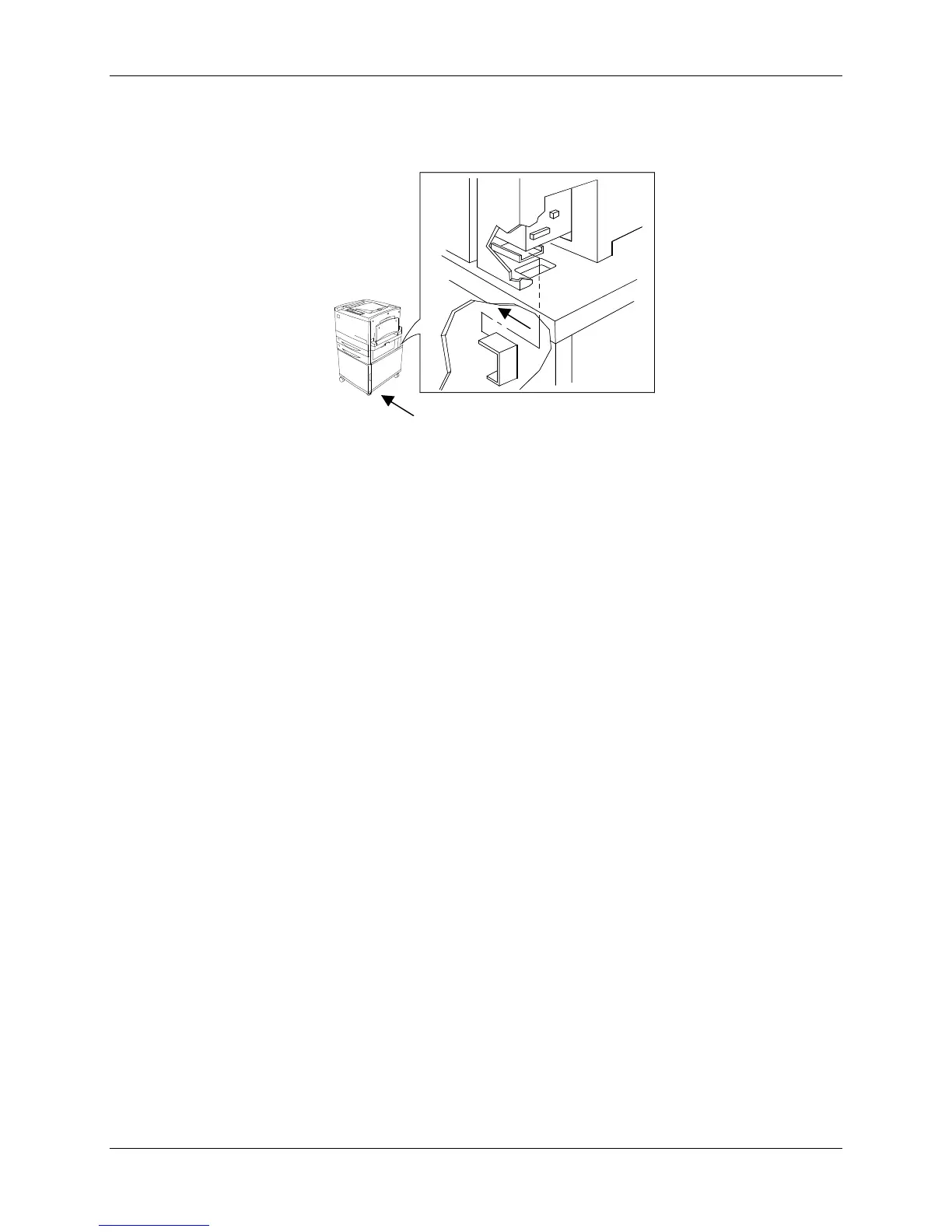

b. From inside the cabinet, push the u-shaped locking bracket up

through the large hole in the Top panel at the rear of the Printer.

301243a

c. Slide the bracket into the square hole at the rear of the Printer and

under the Top panel of the cabinet.

d. Tighten the thumbscrews, and go to step 10.
