Clearing Area 5 jams 23. Problem Solving
Xerox Phaser 790 23-17
Clearing Area 5 jams
Perform one of the following procedures when the message Clear Jam in
Area 5 is displayed on the Control Panel.
• If you do not have the Duplex Tray option installed perform the
procedure below.
• If you have the Duplex Tray option installed, go to the Clearing the
Upper Inverter procedure.
Clearing the Fuser Area

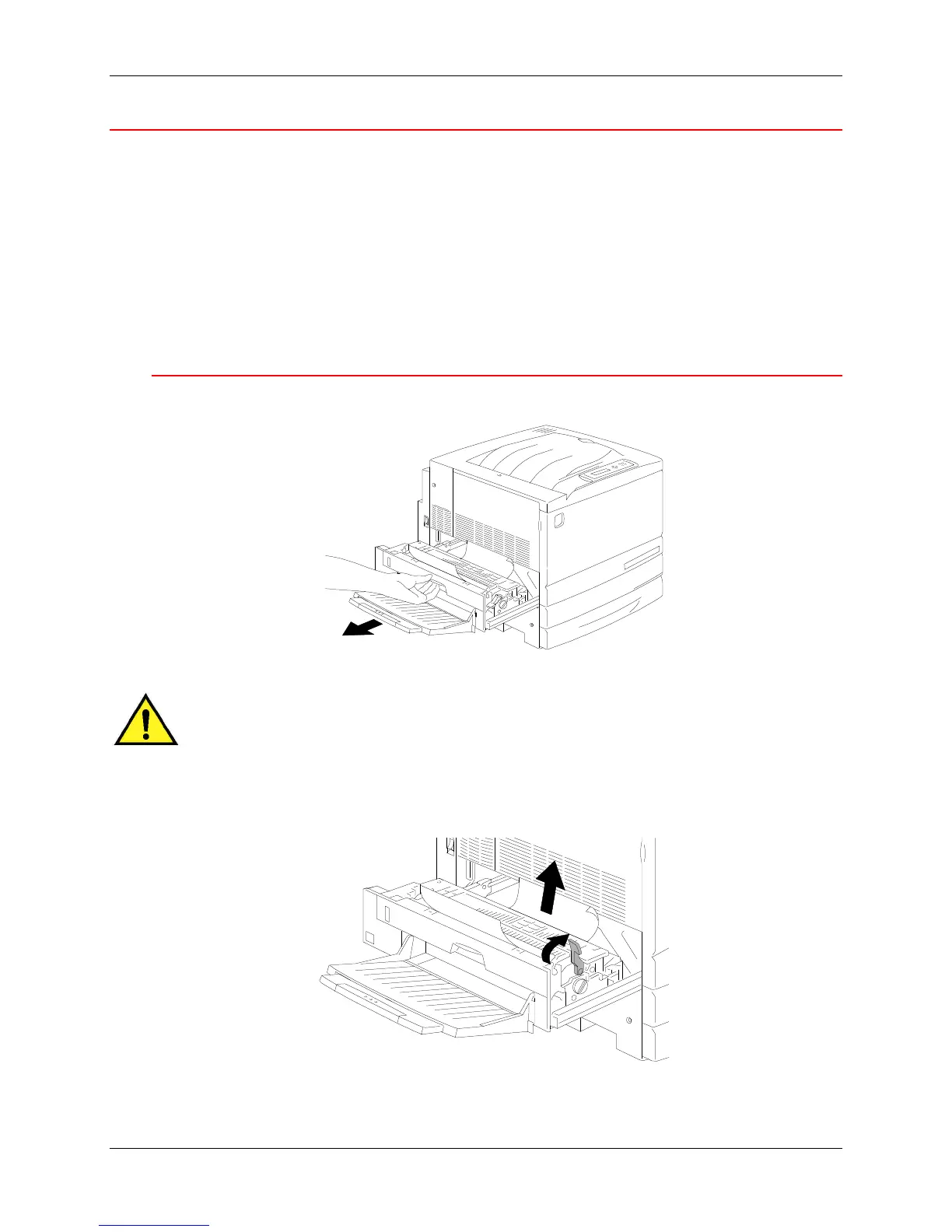

1. In order to access Area 5, pull open the Fuser Area access Cover.
301105a
WARNING
The Fuser may be hot. Use care when reaching into the Fuser Area.
2. To release any paper, lift the green lever as shown, and gently pull the
paper in the direction of the arrow.
301106a
