23. Problem Solving Clearing Area 5 jams

23-18 Xerox Phaser 790

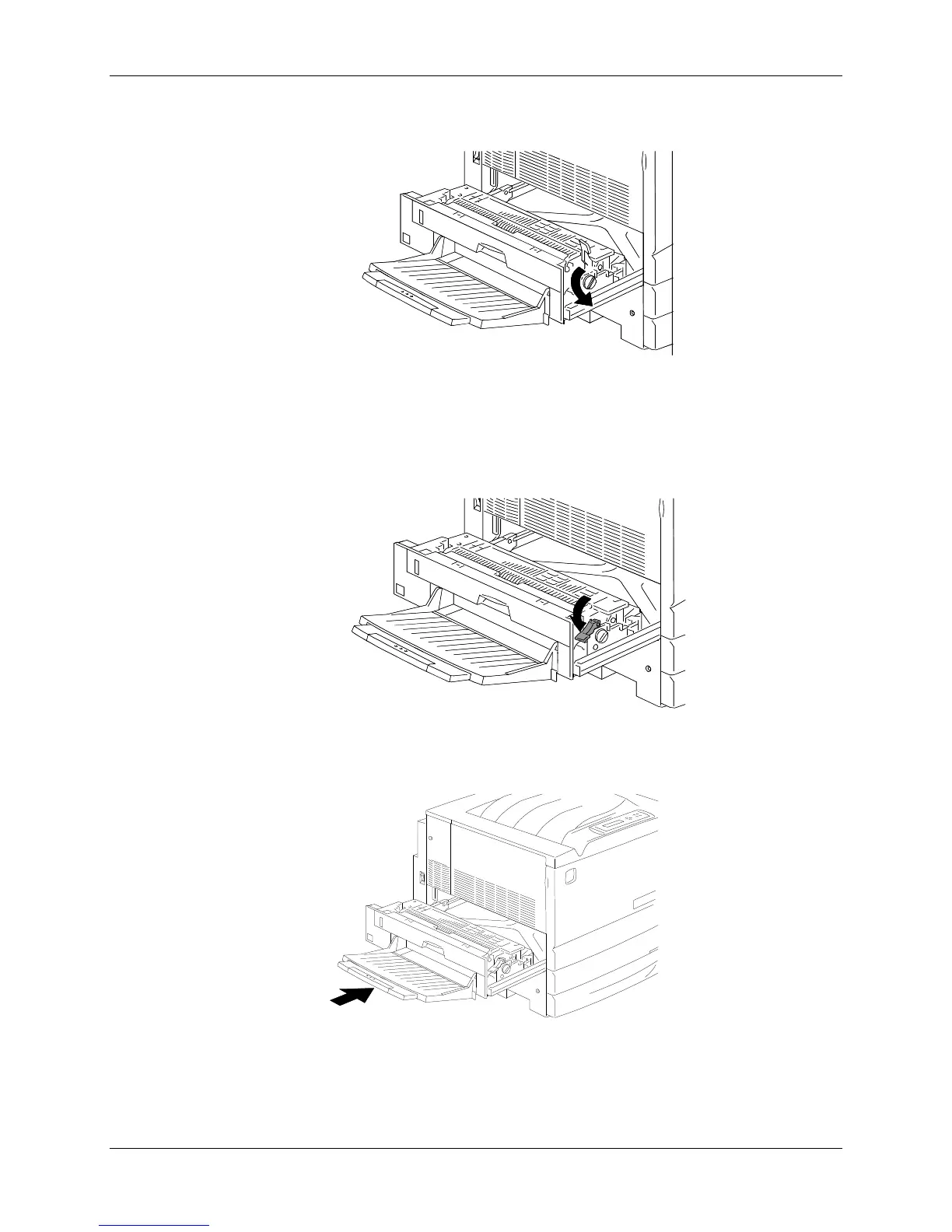

3. If the paper is not visible, turn the green knob in the direction shown.

0301107

W O

4. Ensure that there are no pieces of torn paper remaining in the Fuser

Area.

5. Return the green handle to the original position.

030

W O L

6. Firmly close the Fuser Area.

301114a
