Xerox Phaser 790

To Next Page

To Previous Page

23. Problem Solving Clearing a Paper Tray jam

23-4 Xerox Phaser 790

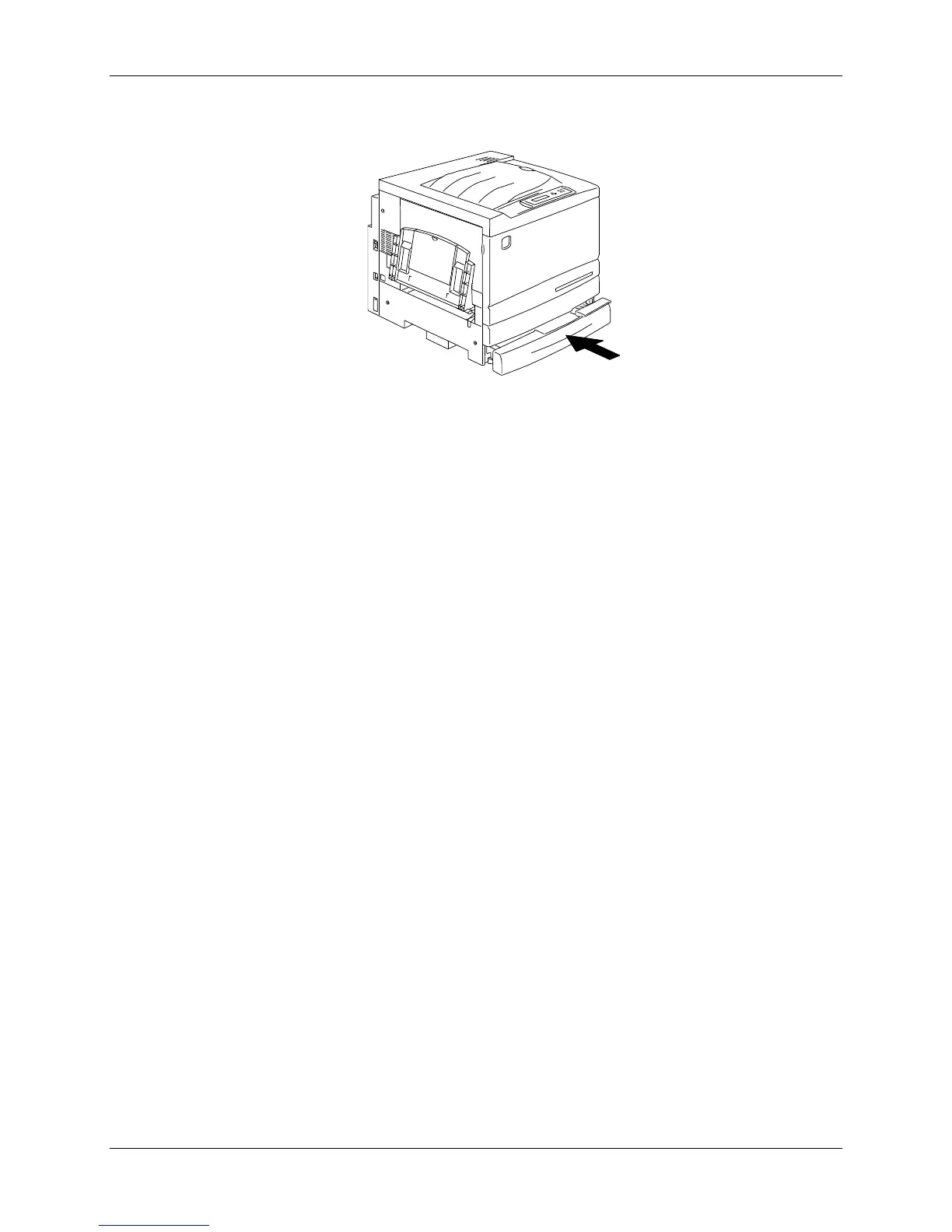

5. Firmly close the paper tray.

301065b

6. Try running the job again.

7. If the problem still exists, open the tray and turn the stack of paper over.

8. Firmly close the paper tray.
