10. Installing user software in a Windows 2000 environment

Xerox Phaser 790

10–4

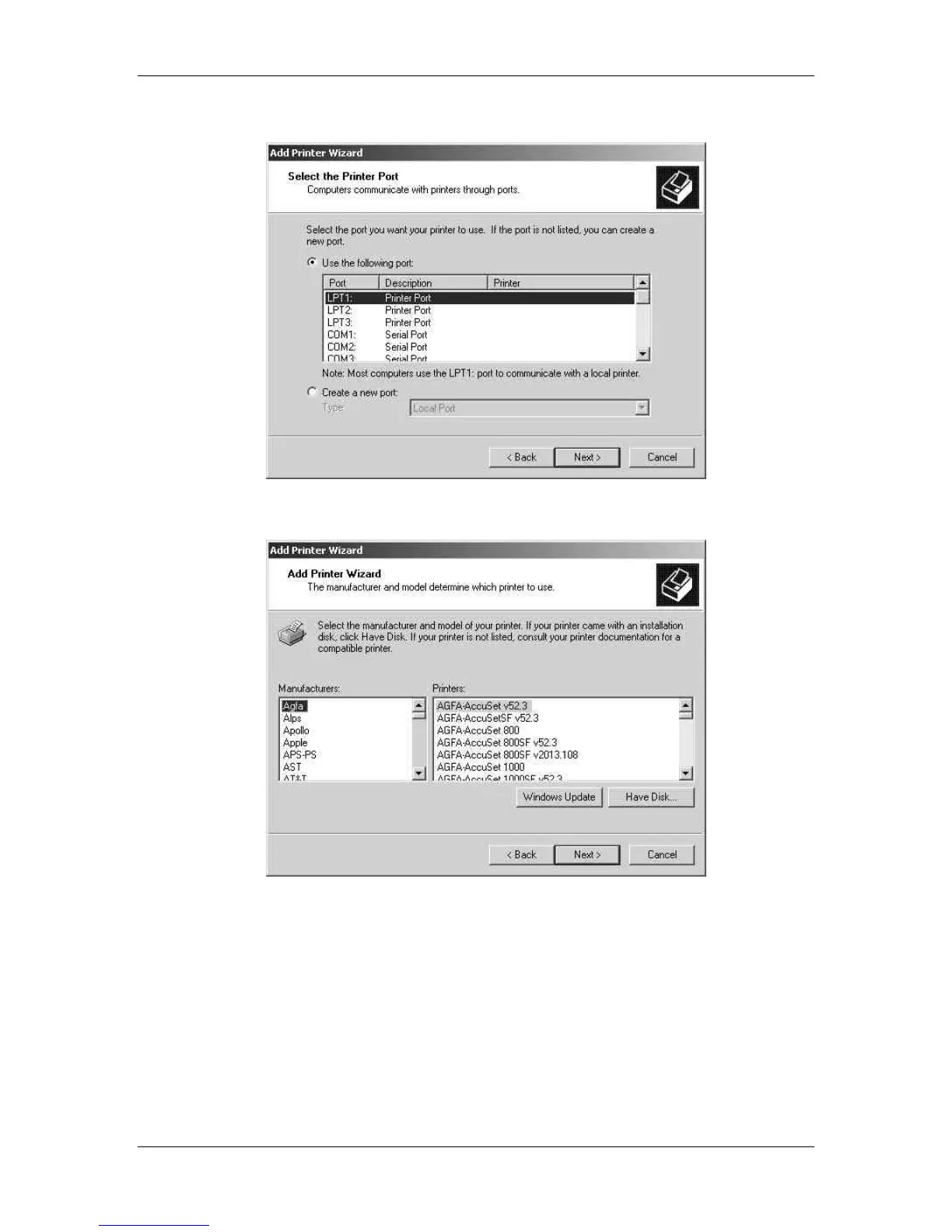

4. Select LPT1: Printer Port and Next.

5. In the dialog box displaying lists of manufacturers and printers,

select Have Disk.
