10. Installing user software in a Windows 2000 environment

Xerox Phaser 790

10–10

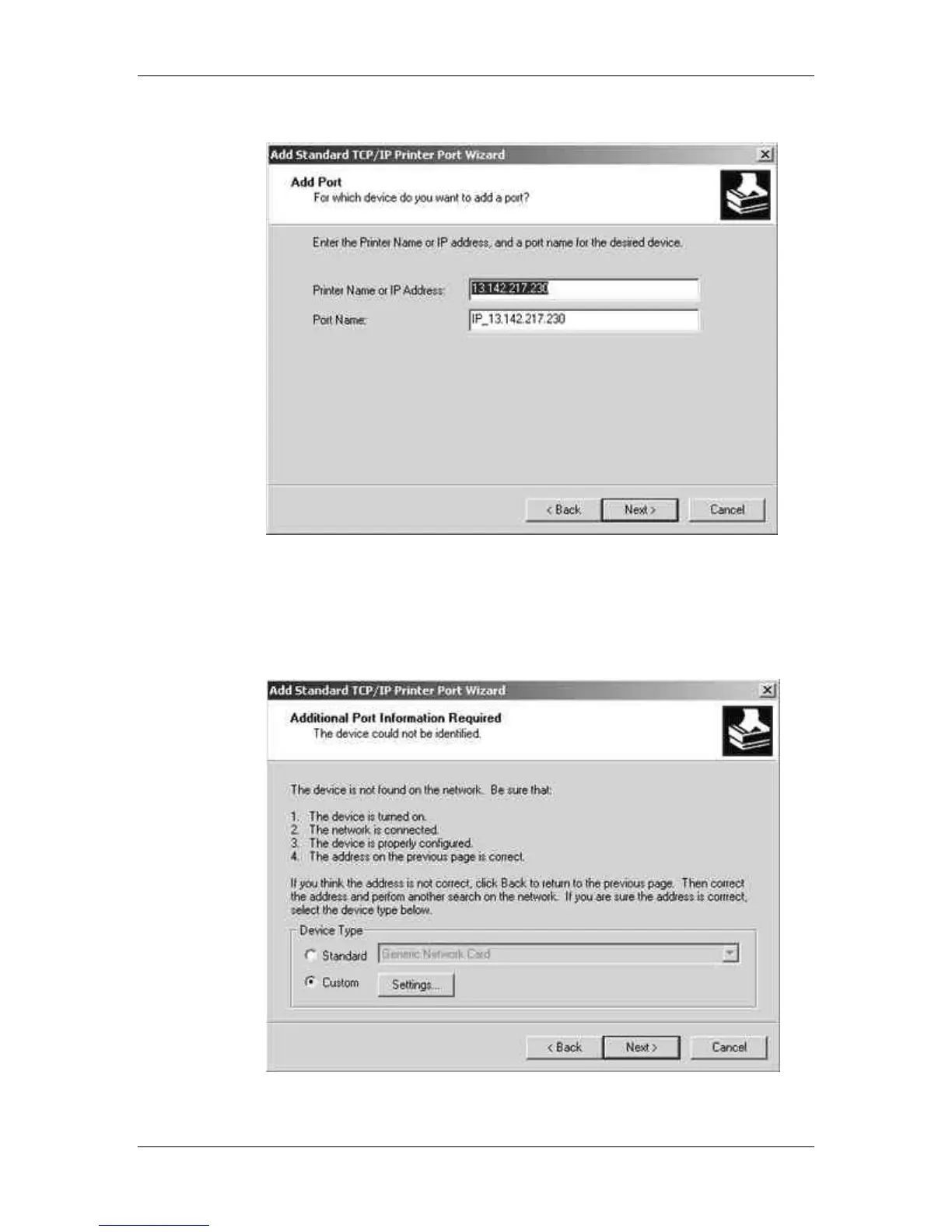

4. Select Next to display the Add Port screen.

5. Enter the Printer Name or IP address. When you enter the

information, it is also displayed in the Port Name field. Select

Next to display the Additional Port Information screen.

6. Select the Custom radio button and the Settings button.

The Configure Standard TCP/IP Port Monitor screen is displayed.
